Packing List
In addition to this guide, the package includes the following items:
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
iWSN-3020-TC-BT-IP65 Quick Start
iWSN-3020-TC-BT-IP65
Resources
How to search for drivers, manuals and spec
information on ICP DAS website.
For Mobile Web
iWSN-3020
iWSN-3020
v1.1, December 2024
P1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iWSN-3020-TC-BT-IP65 and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA iWSN-3020-TC-BT-IP65

Summary of Contents for ICP DAS USA iWSN-3020-TC-BT-IP65

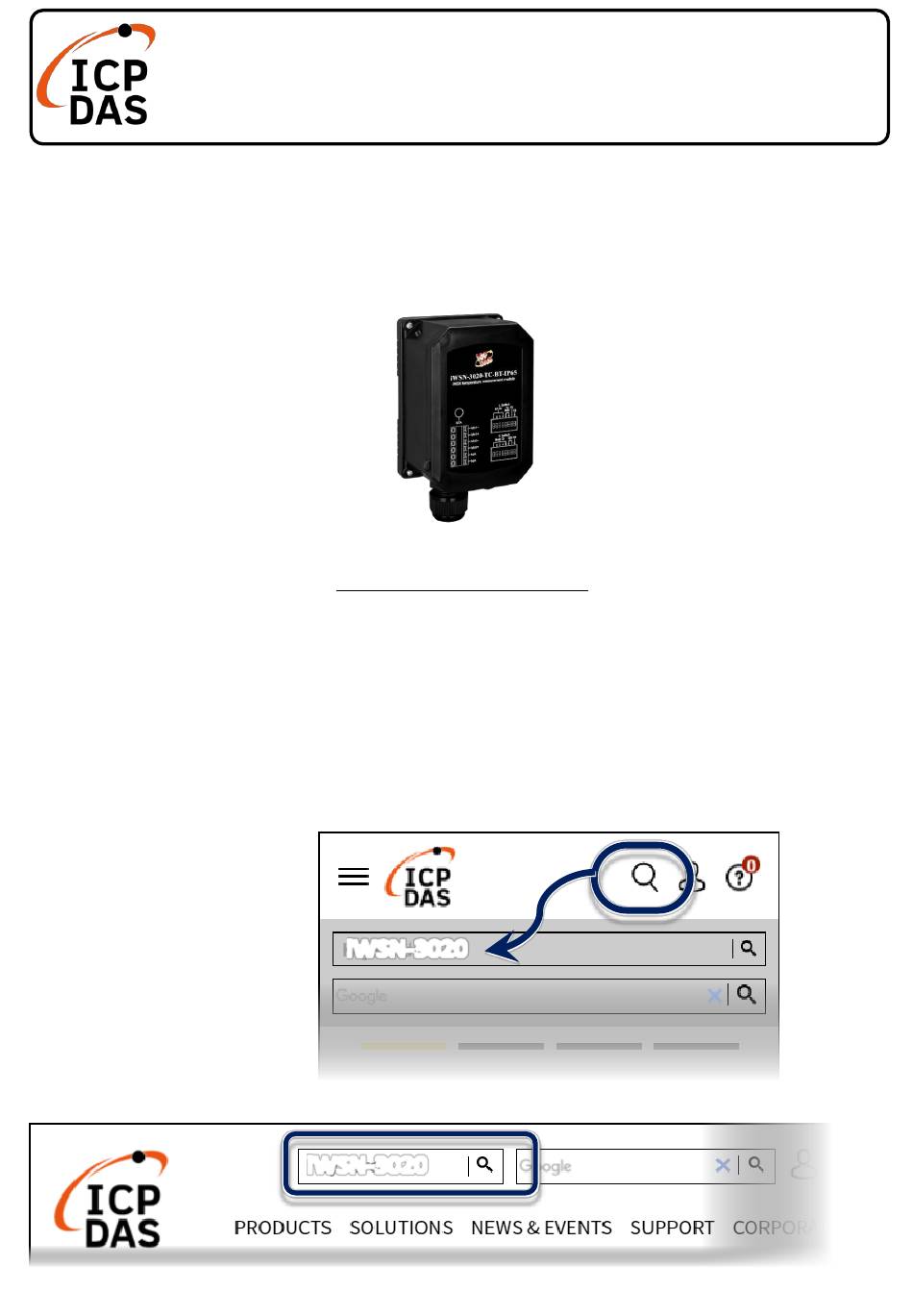

  • Page 1 Quick Start v1.1, December 2024 Packing List In addition to this guide, the package includes the following items: iWSN-3020-TC-BT-IP65 Resources How to search for drivers, manuals and spec Technical Support information on ICP DAS website. service@icpdas.com  www.icpdas.com For Mobile Web iWSN-3020 ...
  • Page 2 1. Appearance Releasable cable tie Antenna DIP switch Disposable lithium batteries (CR123A, 3V) Thermocouple Input channel Wake up Button Power Switch Waterproof Connector Built-in Magnet 2. Wiring and Setting 2.1. Casing disassembly and assembly Loosen 10 screws counterclockwise to remove the magnetic base and transparent cover.
  • Page 3 2.2. Install thermocouple A. After loosening the waterproof connector counterclockwise, insert the thermocouple through the hole of the waterproof connector. Note: The allowable wire diameter range of the waterproof connector is 2.5 ~ 3.5mm. Through the hole. B. Lock the thermocouple into the terminal block as shown in the figure below.

  • Page 4: Communication Parameters

    2.3. Communication parameters Please adjust the dip switch according to the table below, and after the adjustment is completed, power on the module again to enable the new setting parameters. DIP Switch (left) Name Instructions F1 and F2 K type □...
  • Page 5 DIP Switch (right) Name Instructions RF power of wireless output, OFF: Normal, ON: Maximum. □ □ ■: ON ■ □ □: OFF □ ■ ■ ■ □ □ □ □ □ □ □ □ □ ■ ■ □ □ □ □...
  • Page 6 2.4. Replacement battery A. Press the latch on the head of the ties and release the ties. B. Remove the old batteries and install new batteries. Batteries specifications CR123A (3.0V) C. Reinstalling and pulling the cable tie tight.

  • Page 7: Led Indicator

    Modbus RTU communication protocol. Users can use iWSN Utility on the computer or refer to the Modbus table to read the data sent by iWSN-3020-TC-BT-IP65. Among them, the RF Channel and Group ID of the two modules must be the same for wireless communication.
  • Page 8 4.1. Using iWSN Utility to read RSSI and temperature After iWSN-200U receives the wireless data of iWSN-3020-TC-BT-IP65, the user can view the data content through iWSN Utility. 4.2.Reading the RSSI and temperature by Modbus table Users can refer to the Modbus table to read the data sent by iWSN-3020-TC-BT-IP65 from iWSN-200U.
