Page 1

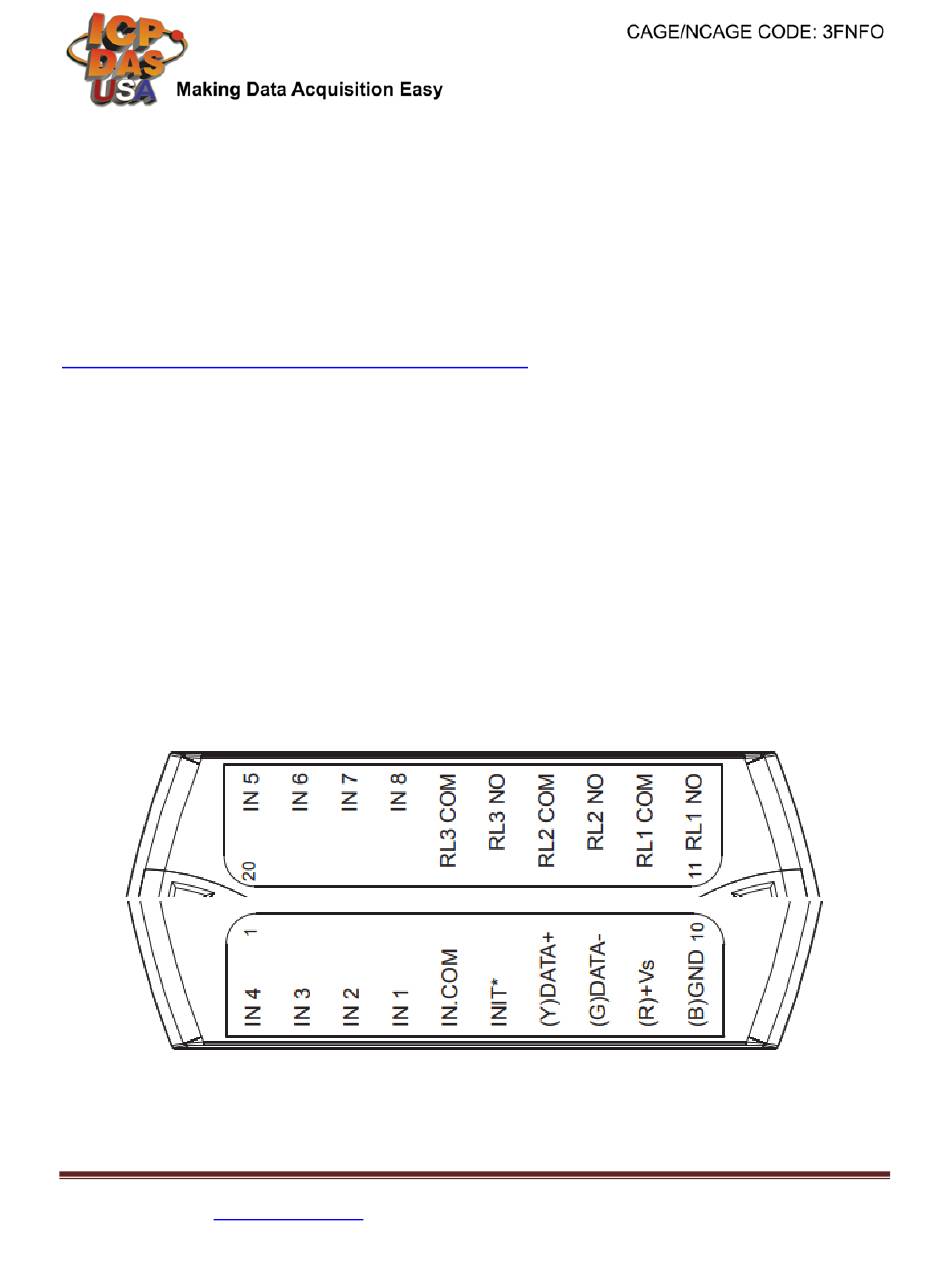

DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. 2. Terminal Assignment I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
Page 2
3. Block/ Wiring Diagram I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
Page 3
3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc.
Page 4
It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to search module. The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
Page 5
DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
Page 6
If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. I-7063D 8-ch DI and 3-ch Relay Output Module - QuickStart (Jan/2018) ICP DAS USA, Inc. | www.icpdas-usa.com...
