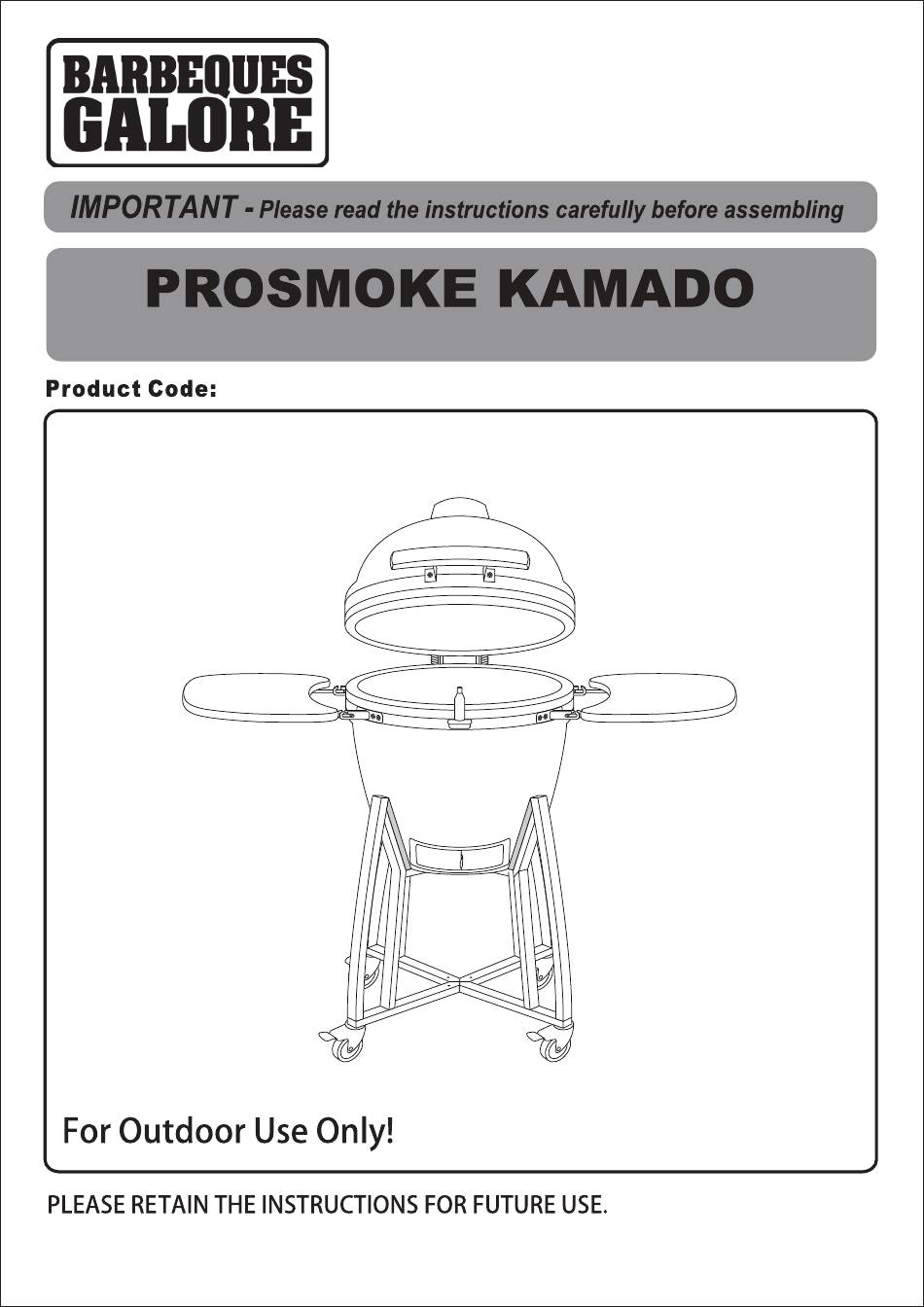

- Page 1 Assembly and Operating Instructions PSMKKAM Supplied in two cartons: PSMKKAMA(BBQ) PSMKKAMB(CART) Make sure you have both cartons!
- Page 2 Follow season...
- Page 3 With initially With...
- Page 4 With can cause food poisoning (e.g. bacteria strains such as E. coli). 500 grams 500 grams...
- Page 5 4PCS PSMKKAM-01 Support Bracket 2PCS PSMKKAM-02 Locking Caster Wheel 2PCS PSMKKAM-03 Caster Wheel 2PCS PSMKKAM-04 Bracket Crosspiece PSMKKAM-05 Cooking Grill PSMKKAM-06 Fire Ring PSMKKAM-07 Charcoal Grate PSMKKAM-08 Fire Box PSMKKAM-09 Ceramic Body PSMKKAM-10 Bumper Brackets PSMKKAM-11 Bumper 2PCS PSMKKAM-12 Lid Handle Brackets PSMKKAM-13 Lid Handle PSMKKAM-14...
- Page 6 Assembly instructions IMPORTANT - Remove any packaging before use, but retain the safety instructions and store them with this product. Ensure that the lid is closed prior to assembly. STEP I - Attach one the four pre-threaded castor wheels (B & C) to each of the four brackets (A) by pushing them through the hole.
- Page 7 Assembly instructions STEP IV - Secure the brackets (A) to the cross pieces (D) by using the 16x small bolts (S). Make sure the cart is secure and all of the screws are tightened firmly. STEP V - To place the Ceramic body (I) into the cart first remove all of the items (E), (F), (G, (H) that are inside of the Ceramic body (I) to make lifting easier.
- Page 8 STEP VIII - When the Ceramic Body is secured firmly into the cart add the Firebox (H), Charcoal Grate (G), Fire Ring (F) and Cooking Grill (E) into the body as shown above. STEP IX - Press down on the castor levers (B) to lock the castor wheels to ensure the Kamado can not move when in use...
-
Page 9: Left Side
STEP X - Attach the Bumper Bracket (J) to the lid of the Kamado by using the 2 x pre-attached bolts and Dome Nuts. STEP XI - Attach the Bumper (K) to the lower Bumper Bracket (J) using the 2 x pre-attached bolts and dome nuts. STEP XII - Attach the handle (M) to the lid of the Kamado by first attaching 2 x Lid Handle Brackets (L) using the 2 x pre-attached bolts and dome nuts. - Page 10 STEP XIV - Attach the 2 x Left Shelf Brackets (P) to the Kamado using the 2 x pre-attached bolts and dome nuts per bracket. Please note the position shown in the above diagram. STEP XV - Attach 2 x Right Shelf Brackets (Q) to the Kamado using the 2 x pre-attached bolts and dome nuts per bracket.
