Summary of Contents for Hussmann Austral H1

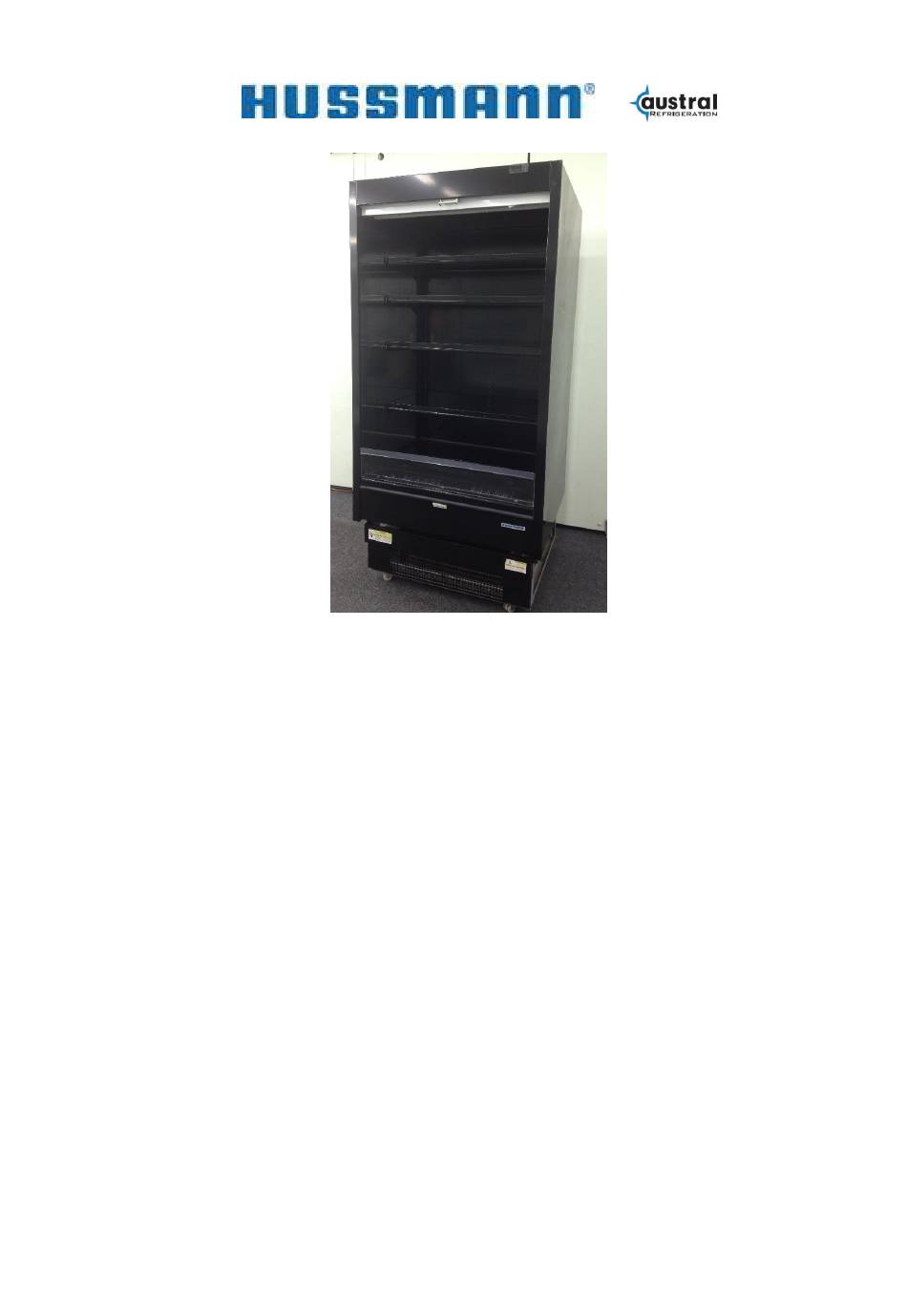

- Page 1 H1 Self Contained Multideck Case Installation Manual Reference: IM-1006 The following models are covered by this Manual H1-10 & H1-14 66 Glendenning Road, Glendenning NSW 2761 PO Box 42 Doonside NSW 2767 t: +61 2 8805 0400 f: +61 2 9675 2897 May 2016 Rev: B...
-
Page 2: Table Of Contents
Operating environment Handling and transporting cases Shipping damages and shortages Installation ositioning and levelling Commissioning Cleaning case Starting up Start-up checks Decommissioning Disposal Maintenance Troubleshooting Appendixes Appendix 1 Wiring diagrams Appendix 2 Warranty Appendix 3 Risk analysis _________________________________________________________________________________________________________________________ Page 1 Hussmann... -
Page 3: Pre Installation
H1 Self Contained glass front multideck Installation manual Pre installation Warning! All refrigeration, electrical and plumbing work must be carried out by licensed and appropriately trained mechanics Case Services Dimensions Minimum gap H1 Cross Section ________________________________________________________________________________________________________________________ Hussmann Page 2... - Page 4 Installation manual H1 Self Contained Multideck H1-10 Foot Print H1-14 Foot Print figure 1 service layout _________________________________________________________________________________________________________________________ Page 3 Hussmann...
- Page 5 2 acceptable group configurations NOTE: • Installing into an alcove is not recommended and will void the warranty • This information is a reference only. Always refer to the latest Product Engineering Data sheet (PED). ________________________________________________________________________________________________________________________ Hussmann Page 4...
-
Page 6: Operating Environment
Case dimensions can be found in the product engineering data sheets. (This manual is a guide only. Always refer to the latest case information available from Hussmann Customer Service) Always ensure that the moving device is of a suitable type, and has sufficient lifting capacity for the case weight and dimension. -
Page 7: Shipping Damages And Shortages
If possible, it is recommended that packaging be removed from the cases before they are moved into the store. After removing packaging, inspect the case for any shipping damage and ensure that all case inclusions, such as trims etc are accounted for. Immediately report any shipping damage to the carrier and inform Hussmann of any short supplies. Installation... -
Page 8: Commissioning
• Remove the PVC protective coating on stainless steel, where applicable • Remove any residue, silicon or tape marks with a cloth moistened with rubbing alcohol • Remove all debris from in and around the case _________________________________________________________________________________________________________________________ Page 7 Hussmann... -
Page 9: Starting Up
Check that all fans and lights are working correctly. Check and set if necessary expansion valves as per Product Engineering Data – Available from Hussmann. Approximately 24 hours after start-up, check that the case is at correct operating temperature (refer the Product Engineering Data). - Page 10 13. Replace base trays and shelves and turn on power. 14. Allow the case to attain correct working temperature (approximately 30 minutes) and restock the shelves. NOTE: After cleaning, make sure to clean the area around the case to prevent slips and falls _________________________________________________________________________________________________________________________ Page 9 Hussmann...
- Page 11 4. Remove and clean the base trays with a sponge, warm water and mild detergent, then rinse and wipe dry 5. Remove any foreign material from the base of the case 6. Clean the evaporator coil and check it for damage ________________________________________________________________________________________________________________________ Hussmann Page 10...
- Page 12 It is recommended that the dissipater tray sensor tip assembly be replaced Servicing No servicing of Hussmann cases, including the replacement of LED lamps, is to be undertaken by store staff. Please contact your service provider for all maintenance queries.
-
Page 13: Troubleshooting
Remove merchandise to behind Air Return is blocked by merchandise. the load limit labels. None of above. Contact Hussmann. Check store air conditioner operation. If Store condition is too cold compared to store condition cannot be lifted, then adjust design climate class 3. -
Page 14: Appendixes
Warranty The information in this manual is for “Qualified Persons Only”. It is NOT an Installation Guide for “NON Qualified Persons”. To obtain warranty information or other support, contact your nearest Hussmann representative. Please include the following: Customer site location. -
Page 15: Appendix 3 Risk Analysis
Electrical - Electrically isolate cases before work begins. Must be carried out by electrical connections in cases a service provider. Staff training. Table 2 Risk analysis ________________________________________________________________________________________________________________________ Hussmann Page 14...
