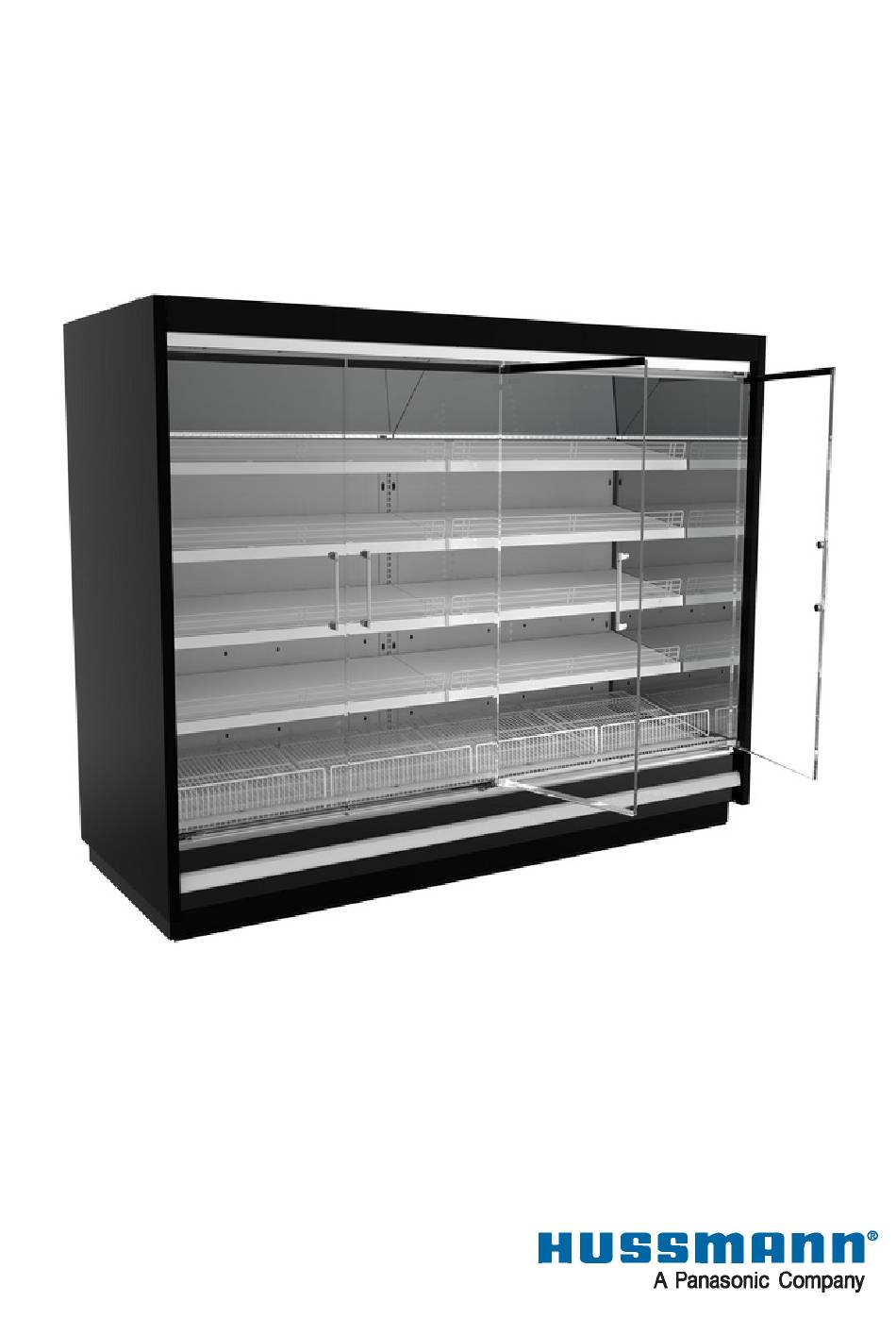

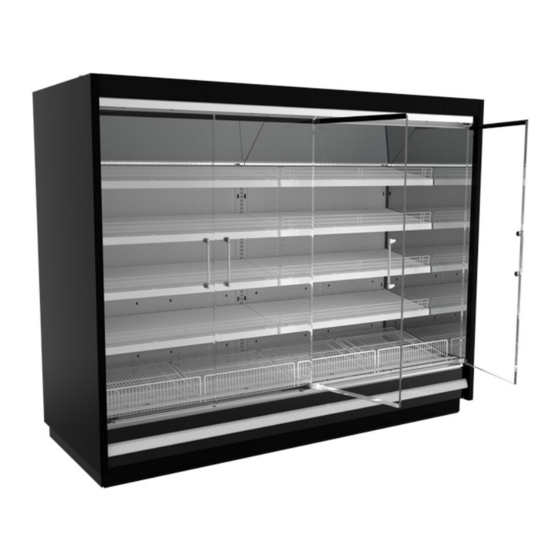

- Page 1 MEDIUM TEMPERATURE REMOTE CABINET MULTIDECK DOOR INSTALLATION MANUAL MPD116/216/316/118/218/318 JAN 2021 - AJHH9A20001A...
-
Page 2: Table Of Contents
CONTENTS CLEANING & MAINTENANCE GENERAL INFORMATION Commissioning Symbols Care & Cleaning Stop Think Act Daily Checks Staff Training Six Monthly Maintenance Electrical Connections Replacing Fan and Motor Blades Refrigerants Case Ventilation DECOMMISSIONING & DISPOSAL PRE-INSTALLATION Decommisioning Case Service Dimensions Disposal Operating Environment Handling and Transporting Cases Shipping Damages and Shortages... -
Page 3: General Information
PPE GEAR : NO SIT: Remember to wear Do not sit on top or on any Personal Protective Equipment whilst parts of the case. Case damages or installing the case. personal injuries may occur. PAGE 3 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 4 Be sure to use occur if not correctly processed. private line or socket as the main power source. Failure to do so could result in electric shock or fire. PAGE 4 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 5: Stop Think Act
If information would like to be added to this manual, or if suggestions would like to me made, contact Hussmann directly at any time. PAGE 5 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 6 Contact with liquid can cause frostbite and severe damage to the eyes. The system including the refrigerant is under pressure, it should be protected from sunlight and other heat sources. PAGE 6 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 7: Case Ventilation
NO OBJECTS ON CASE: Do not place objects, stack or use the top of the case as storage. Object may fall FIGURE 1B and cause injury to personnel and /or damage to the case. PAGE 7 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 8: Pre-Installation
FIGURE 2A - EXAMPLE ONLY NOTE: This information is a reference only. Always refer to the latest Product Engineering Data sheet (PED). * MPD116/216/316 & MPD118/218/318 Case Dimensions found at back of the manual. PAGE 8 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 9: Operating Environment
60% RH, and cross draft of maximum 0.2m/s. For insure adequate loading strategies are implemented to best performance, we recommend maintaining store insure the safe transportation of the Hussmann cases. temperature below +24 C at 50% RH. Cases should be strapped using the indicated strapping points highlighted on the case packaging with the “strap... -
Page 10: Shipping Damages And Shortages
30% RH and 90% RH. case for any short supplied and or damaged trims, Before storing the cabinets, ensure packaging is product fences etc. If required notify Hussmann or unbroken and does not display defect that may representative within seven (7) days of delivery. -
Page 11: Rating Plates
Rating Plate FIGURE 2C NOTE: Refer to rating plate to identify the exact case model. The serial number and build date are key for aquiring information regarding spare parts, warranty, short parts etc. PAGE 11 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 12 This is measured in volts (V). • Fans Current: The fans flow of electricity which results from the ordered directional movement of electrically charged particles, measured in Amps (A). PAGE 12 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 13: Installation
Company when moving cases Cases must not be positioned in areas that may be subject to heat or air currents such as ventilation ducts, open doors or windows, direct sunlight, electric fans or ovens, etc. PAGE 13 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 14 NOTE: All feet need to be loaded evenly on the ground. If this is not undertaken this could cause the chassis to twist. FIGURE 3D - Lining Up Case PAGE 14 MPD GLASS DOOR MULTIDECK - HUSSMANN...
- Page 15 If feet are not adjusted and levelled correctly. The case chassis could twist causing saw toothing of the doors and other misalignments. Front support feet help with the added weight of the door assembly, ensure these are adjusted correctly. PAGE 15 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 16: Door Saw Toothing
Case needs to be re-checked for level once fully Aligned / Parallel / Not Twisted stocked. If door saw toothing is apparent and doors cannot be re-adjusted, then case needs to be re- FIGURE 3H levelled correctly. PAGE 16 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 17: Door Adjustment
The hinge mechanism by default is set in the middle of the rebate. Shifting the hinge left or right can be done by untightening of two screws as shown in (Figure 3N). FIGURE 3M PAGE 17 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 18 By moving the hinge to the right and left the two door legs will be levelled. Only minor misalignment that can be rectified by this mechanism. Slide FIGURE 3O PAGE 18 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 19: Lighting
The LED drivers can be found on the top left of the case in the electric box. If lights appear faulty or not functioning, contact your nearest service provider for replacement. NOTE: For any information regarding customer specific lights, reach out to Hussmann. PAGE 19 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 20: Fitting Shelves
The quantity and location of shelving Shelf Bracket may affect cabinet performance. Refer to PED sheet and/or your refrigeration service provider. PAGE 20 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 21: Sealing Case Joins
Foam tape. (already fitted) possible. 4. Insert the joining bolts, found in the blister pack, into the end holes and tighten FIGURE 3S FIGURE 3T PAGE 21 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 22: Attaching Kickplates
This will enable the Seal along this edge only when cases are kickplate to be moveable and it will naturally sit joined together correctly in relation to the floor. FIGURE 3V PAGE 22 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 23 This will allow the kickplate to slide vertically to allow for a slight variation in height. FIGURE 3X Attach the profile seal to the bottom of the front kickplate panel. PAGE 23 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 24: Connecting Refrigerant Lines
CAUTION: Remove or protect the Top of the case expansion (TX) valve feeler bulbs (or power lead if electronic valve) from heat. Ensure the power lead is clear of heat and flame. PAGE 24 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 25: Installing The Waste Drain
5. Ensure trap is primed before starting refrigeration. FIGURE 3AB- Drain Tap Orientation Drain waste diameter should be nominal 40mm standard AS/NZS pipe. Drain Pipe Stand/ Support FIGURE 3AC- Drain Tap Orientation PAGE 25 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 26: Installing Sensor Probes
90° configurations may compromise case performance. The discharge air control sensor should be located in the air stream only and should not make contact with any metal parts. . PAGE 26 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 27: Cleaning & Maintenance
Set expansion valves and EPRs as per Product Do not use razor blades or any other mechanical » Engineering Data – Available from Hussmann. device to remove foreign residue or objects directly • Approximately 24 hours after start-up, check that from the glass. -
Page 28: Care & Cleaning
This can cause the glass to shatter and includng fan motors and lights. could result in personal injury. Allow glass fronts, ends and service doors to warm before applying hot water. Do NOT use hot water inside the case. PAGE 28 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 29 Rinse and wipe dry immediately after cleaning. Never use hydrochloric acid (muriatic acid) on stainless steel. WEAR APPROPRIATE PPE GEAR WHILST CLEANING. PAGE 29 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 30: Daily Checks
Please contact Hussmann Pty Ltd or your service provider. Cases should also be cleaned by store staff on at least a weekly basis; some cases may, however, require more frequent cleaning. -
Page 31: Six Monthly Maintenance
11. Carefully clean the evaporator using a soft bristle brush and mild soapy water, clean any residue with a bucket of warm water and drain out. Ensure the drain is free flowing and check it for damage. PAGE 31 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 32: Replacing Fan And Motor Blades
WARNING: Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as fans, heaters, thermostats and lights. PAGE 32 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 33: Decommissioning & Disposal
Dismantle the cabinet in accordance with the • Wood local laws on waste disposal and in respect of • the environment in which we live. • Polystyrene • Polycarbonate Remaining by commercial waste management PAGE 33 MPD GLASS DOOR MULTIDECK - HUSSMANN... -
Page 34: Troubleshooting
Re-do the shelf arrangement as per significantly from original specified setup the original specification Air Return is blocked by merchandise Move merchandise to be within the load limit. None of above Contact your refrigeration service provider. PAGE 34 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 35 Check supply is “on” and light switch is working. Light Components maybe faulty or Call your refrigeration service provider operating in fail safe to check and replace is necessary Lamp failed Replace lamp PAGE 35 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 36: Appendix
Cuts and stabbing - Potential for cuts caused by Visual Inspection and regular maintenance. Request damaged or missing parts service call when necessary. PPE must be worn when handling broken or damaged parts. PAGE 36 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 37 Cuts and stabbing - Should a refrigerant leak occur there Ensure that the work area is clear of all items and is well ventilated. maybe risks of oxygen deprivation in enclosed spaces. PAGE 37 MPD GLASS DOOR MULTIDECK - HUSSMANN...
-
Page 38: Appendix 3 - Warranty
APPENDIX 3 - WARRANTY APPENDIX 4 - DISCLAIMER The information in this manual is for “Qualified Hussmann reserves the right to modify the Persons Only”. It is NOT an Installation Guide for components within the case, as well as alter “NON Qualified Persons”. -
Page 39: Appendix 6 -Case Dimensions
APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD116 PAGE 39 MPD GLASS DOOR MULTIDECK - HUSSMANN... - Page 40 APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD216 PAGE 40 MPD GLASS DOOR MULTIDECK - HUSSMANN...
- Page 41 APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD316 PAGE 41 MPD GLASS DOOR MULTIDECK - HUSSMANN...
- Page 42 APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD118 PAGE 42 MPD GLASS DOOR MULTIDECK - HUSSMANN...
- Page 43 APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD218 PAGE 43 MPD GLASS DOOR MULTIDECK - HUSSMANN...
- Page 44 APPENDIX APPENDIX 6 - CASE SERVICES & DIMENSIONS MPD318 PAGE 44 MPD GLASS DOOR MULTIDECK - HUSSMANN...
