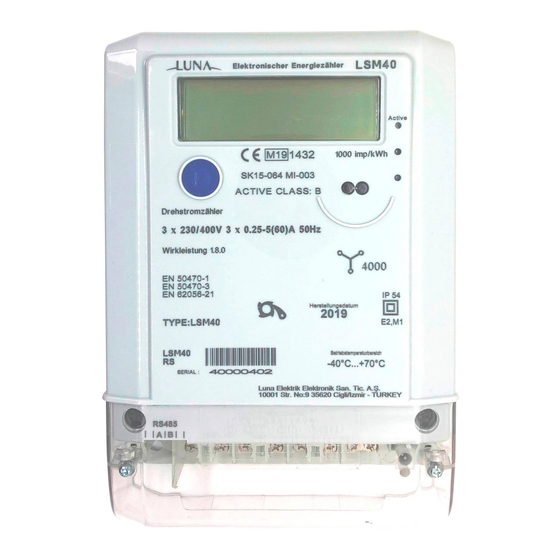

Luna LSM Series Maintenance And User Manual

Import-export active-reactive single phase electronic electricity meters
Hide thumbs Also See for LSM Series:

Advertisement

Table of Contents

MAINTENANCE
AND USER'S MANUAL
IMPORT-EXPORT
ACTIVE-REACTIVE
SINGLE PHASE ELECTRONIC
ELECTRICITY METERS
LSM SERIES
LSM40
KK_EN_LSM40_19.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luna LSM Series

Summary of Contents for Luna LSM Series

  • Page 1 MAINTENANCE AND USER’S MANUAL IMPORT-EXPORT ACTIVE-REACTIVE SINGLE PHASE ELECTRONIC ELECTRICITY METERS LSM SERIES LSM40 KK_EN_LSM40_19.02...

  • Page 2: Manufacturer Information

    MANUFACTURER INFORMATION: LUNA ELEKTRİK ELEKTRONİK SAN. VE TİC. A.Ş. 10001 Str. No:9 Atatürk O.S.B. 35620 Çiğli / İzmir - TÜRKİYE Tel: +90 232 472 15 45 Fax: +90 232 472 15 50 www.lunatr.com SERVICES: Main Technical Service: LUNA ELEKTRİK ELEKTRONİK SAN. VE TİC. A.Ş.
  • Page 3 Calibration Station, the warranty will be void. Defects due to misuse of determined technical features in user’s manual of LUNA Electronic Electricity Meters (usage out of range set in the manual) are not considered under cover of warranty. LSM Series Active-Reactive Multi Tariff Single Phase Electronic Electricity Meters are, Hardware and software of, designed by R&D department of...
  • Page 4 INTRODUCTION General Safety Precautions SEALS AND SCREWS OF ELECTRONIC ELECTRI- CITY METERS, SEALED BY LUNA ELEKTRIK ELEKT- RONIK SAN. and TIC. A.S AND ELECTRIC DISTRIBU- TION COMPANY, MUST BY NO MEANS BE OPENED, EXCEPT FROM AUTHORIZED PERSONNEL, AFTER BEING ENERGIZED.

  • Page 5: General Features

    1.3. Tariffs 1.3.1. Main Tariffs and Tariff Intervals LSM Series Active-Reactive Electric Electricity Meters are able to split day time as import and export, and store measurement data for 4 tariffs and 8 billing periods for weekdays, Saturdays and Sun- days separately.
  • Page 6 This process is done automatically at the end of month, if the maximum demand is not reset manually within that month. LSM series meters stores the maximum demand and date and time of the maximum demand for the last 24 months.
  • Page 7 • Meter Date • Maximum Demand Period • Meter Time • Load Profile Period • Meter Day of the Week • Automatic Daylight Saving Parameter • Tariff Intervals • New Password • Tariff Hours Other than the parameters above, none of the meter parameters can be changed in any way.
  • Page 8 The production date is stored in the memory and can be read with OBIS code “96.1.3”. 1.9.9. Meter Status Recorders LSM Series Meters have 4 status codes for reading the meter in- formation, errors, warnings and features. The statuses have the fol- lowing OBIS codes: F.F.0: Critical Meter Errors...
  • Page 9 1: reserved 1: 00 = battery 1 empty, 01 = battery 1 level low, 1: meter supply is out of range 11 = battery 1 level good 1: error in metrology current measurement 1: 00 = battery 1 empty, 01 = battery 1 level low, section 11 = battery 1 level good 1: error in metrology voltage measurement...
  • Page 10 1: RS485 communication is supported 1: Advanced log feature is supported 1: RF communication is supported 1: DLMS communication is supported 1: PLC communication is supported 1: If 1, 10000 impulse mode; if 0, 1000 impulse 1: Plug&Play communication module is sup- mode ported 1: reserved...
  • Page 11 1.10. Optional Integrated Features 1.10.1. Import-Export Energy Measurement LSM series meters can optionally measure energy bi-directionally. The measured export energy is recorded apart from the import tariffs and added to the total export active tariff -T and the corresponding export tariff from -T1, -T2, -T3, -T4.
  • Page 12 Then, it can be readout and controlled using a Data Concent- rator(DC) or a GSM Modem and from LUNA Metrum remotely. The RF module uses 868MHz ISM band and a custom protocol by LUNA meters for communication. It supports communication speed of up to 200kbps.
  • Page 13 1.10.13. Over- Under Voltage Record LSM series meters can optionally support detection and recording of over voltage and under voltage events. When instant voltage exceeds the defined over voltage parameter (96.73.20) value or falls below the defined under voltage parameter (96.73.21) value, over voltage...
  • Page 14 1.10.16. Auto Disconnect LR on Over Current (Consumption Limitation) LSM Series meters can optionally support disconnecting the latching relay of the meter in case over current occurs. If this feature is sup- ported in the meter, feat_lr_auto_oi_err(96.74.21) OBIS code can be read or written to.
  • Page 15 (value 1), 96.74.20 feature will be used. 1.10.18. Meter Write Logs LSM series meters can keep logs of the writings to the meter, along with their date-time, password level, operator id and OBIS code inclu- ding its data. The writing log is read in (YY-MM-DD, hh:mm|A1|000000|<OBIS code with data>) format, where A is the...
  • Page 16 1) Remove the screw which is holding the removable battery cover and take off the battery cover. 2) Pick up the battery holding tool supplied by LUNA and take the previously inserted battery out if available by holding with the tool. Do...

  • Page 17: Operating Elements

    not hold the battery with bare hands. 3) Hold the new battery with the provided tool and insert it into the socket. Do not touch the battery with bare hands. 4) Close the battery cover and insert the screw back. 2.
  • Page 18 Option 2 Option 3 5. MENUS 5.1. Main Menu When the device is connected to energy, the list indicating Total Im- port Active Energy menu will appear in terms of kWh on the LCD scre- en. At 5 second intervals T1, T2, T3, T4, Reactive Inductive, Reactive Capacitive, Demand, Total Export, Export T1, Export T2, Export T3, Export T4, Export Reactive Inductive, Export Reactive Capacitive, Export Demand, Date, Time and Serial Number menus will appear on...

  • Page 19: Time Screen

    L1 PHASE ACTIVE POWER SCREEN The screen, that shows total active power hold from L1 phase. L2 PHASE ACTIVE POWER SCREEN The screen, that shows total active power hold from L2 phase. L3 PHASE ACTIVE POWER SCREEN The screen, that shows total active power hold from L3 phase.
  • Page 20 5.2. Notifications TERMINAL COVER REMOVAL NOTIFICATION The visual on this notice on the screen indicates that termi- nal cover previously opened. In case of unauthorized exe- cution of this process, warranty will be invalid and penalty fees may be incurred. MAIN COVER REMOVAL NOTIFICATION It indicates that main cover is opened.
  • Page 21 RTC ERROR NOTICE Appears and remains on the lcd persistently after a real-time-clock error occurs. PHASE FAILURE NOTICE If there is no consumption record on any phase for 30 days, it appears on the screen. Shown on the screen continuously. MAGNETIC INTERVENTION NO- TICE Shown on the screen If there is...
  • Page 22 Total consumed energy T4 ta- riff in previous month menu (T4 blinks) Total consumed energy Reacti- ve-Inductive in previous month menu Total consumed energy Reacti- ve-Capacitive in previous month menu Total demand in previous month menu (P blinks) Maximum demand date in previ- ous month menu (P blinks) Maximum demand time in previ- ous month menu (P blinks)
  • Page 23 6. SPHYSICAL DIMENSIONS OF THE METER 7. CONNECTIONS Phase R Phase S LOAD Phase T Neutral 8. GENERAL MECHANICAL SCHEME LCD SCREEN MENU BUTTON OPTICAL PORR Demand Reset Button (Optional) Seal of Distribution Company LUNA A.Ş. Seal FK.104 (Rev.01) 19.10.2018...

  • Page 24: Ab Uygunluk Beyani

    Cihaz modeli/Cihaz : LSM40 Instrument model/Instrument Sayacın seri numarası: Serial number of the meter: Üretici adı ve adresi : LUNA A.S. Name and address of the manufacturer 10.001 Str. No:9 Ataturk O.S.B. Cigli-Izmir-TURKEY Bu uygunluk beyanı üreticinin sorumluluğu altında verilir.
  • Page 25 FK.103 (Rev.00) 21.10.2015...
  • Page 26 FK.103 (Rev.00) 21.10.2015...

  • Page 27: Technical Specifications

    TECHNICAL SPECIFICATIONS TYPE LSM40 Serial Number 3 x 230/400V Nominal Voltage Oprating -20%Un, +15%Un Voltage Nominal Current 5(100)A (max) AC 1000 imp/kWh Test Output Starting Current 20mA Nominal 50 Hz ± %2 Frequency Hz Directly connected to primary Method of active-reactive meter Measurement Class B/C...
  • Page 28 ELECTRONIC ELECTRICITY METERS SMART GRID SYSTEMS Phone: +90 232 472 15 45 Fax: +90 232 472 15 50 info@lunatr.com www.lunatr.com...

This manual is also suitable for:

Lsm40
