DMX-LED-DIMMER X9 HR
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX-LED-DIMMER X9 HR and is the answer not in the manual?

Questions and answers

Related Manuals for DMX4ALL DMX-LED-DIMMER X9 HR

Summary of Contents for DMX4ALL DMX-LED-DIMMER X9 HR

  • Page 1 DMX-LED-DIMMER X9 HR User Manual...

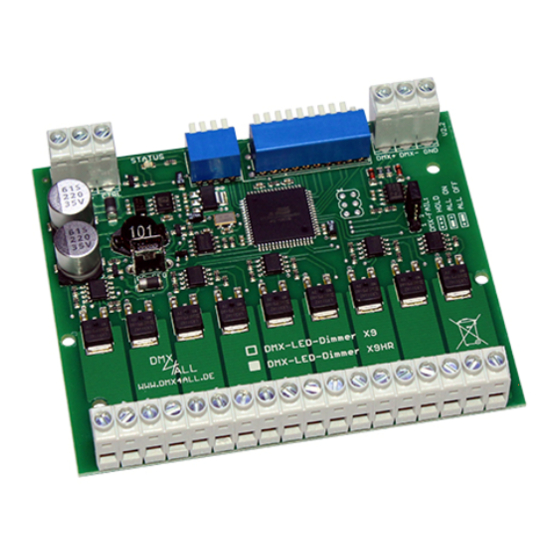

  • Page 2 For your own safety, please read this user manual and warnings carefully before installation. Description The DMX-LED-Dimmer X9 HR is especially designed for controlling RGB LED- Stripes. The dimmer has 9 High-Resolution PWM-Outputs (3xRGB) independently controllable via DMX. 9 Outputs The DMX-LED-Dimmer X9HR has 9 outputs to which LEDs can be connected.
  • Page 3 DMX-LED-Dimmer X9 HR Data sheet Power supply: 7-24V DC 80mA@12V / 100mA@24V (without connected LED load) LED voltage: 7-24V DC (no AC voltage !) Protocol: DMX512 DMX channels: 9 channels with 8Bit-controlling and LookUp-Table 18 channels with 16Bit-controlling + optional Master-Dimmer-Channels...
  • Page 4 DMX-LED-Dimmer X9 HR Connection with one power supply DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HR RGB-LED-Stripe (12V) RGB-LED-Stripe (12V) RGB-LED-Stripe (12V) Must be connected direct from the power supply ! Use at least one GND connection per 10A.
  • Page 5 DMX-LED-Dimmer X9 HR Connection with several power supplies DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HR POWER 12V RGB-LED-Stripe (12V) POWER 24V RGB-LED-Stripe (24V) POWER 12V RGB-LED-Stripe (12V) Must be connected direct from the power supply ! Use at least one GND...
  • Page 6 DMX-LED-Dimmer X9 HR Connection with single color and multi color stripes DMX IN DMX OUT POWER 12V ADDRESS DMX-LED-Dimmer X9HR RGB-LED-Stripe (12V) LED-Stripe WEIß (12V) LED-Stripe WEIß (12V) Must be connected direct from the power supply ! Use at least one GND...

  • Page 7: Cable Lengths

    DMX-LED-Dimmer X9 HR Cable lengths The DMX-LED-Dimmer X9 HR should be run with shortest possible cable lengths. Because of the low operation voltage in LED installation the cable cross section is to choose as large as possible to keep the voltage drop as low as possible on the cable.

  • Page 8: Dmx Addressing

    DMX-LED-Dimmer X9 HR DMX-Addressing The starting address is adjustable with the switches 1 to up 9. Switch 1 has the valency 2 (=1), switch 2 the valency 2 (=2) etc. until switch 9 has the valency 2 (=256). In total the switches showing ON correlate with the starting address.
  • Page 9 DMX-LED-Dimmer X9 HR Behavior in case of DMX signal fail From 06/2013 (Version 2) The DMX-LED-Dimmer X9 can hold the last value, switch on or switch off the LED outputs on DMX fail. This DMX-Fail option is selectable with the Jumper.
  • Page 10 DMX-LED-Dimmer X9 HR Energy-Save Output (CTRL) From 06/2014 (Version 2.1) TheDMX-LED-Dimmer X9HRhas an Energy-Save control output (CTRL) which is able to tun off the Load Power Supply of the LEDs. If none of the outputs is activated for a period of 5 minutes or all DMX values are set to 0 for 5 minutes, the control output is switched off.

  • Page 11: Set Operation Modes

    DMX-LED-Dimmer X9 HR Set operation modes The DMX-LED-Dimmer X9 HR has 2 operation modes adjustable via the configuration switch 4: Switch 4 OFF: Controlling the outputs via one DMXchannel In this operation mode each output has a LookUp-Table. This displays the outputs 16Bit-resolution for the available 256 values of the DMXchannels.
  • Page 12 DMX-LED-Dimmer X9 HR Configure the LookUp-Table The DMX-LED-Dimmer X9 HR has aLookUp-Table per output. The received DMX-Channel has values from 0 up to 255. The DMX-LED-Dimmer X9 HR output driver provides 65536 steps (16 Bit) which are assigned to the DMXvalues.
  • Page 13 From Hardware V2.2 (Delivery 2017 or later) To transfer the Look-Up Table to the DMX-LED-Dimmer X9 HR a PC- Connection cable and a USB-Connection at the PC is necessary. Via the software DMX-Configurator the LookUp-Tables can be defined. The DMX- Configurator is available for free as download.
  • Page 14 DMX-LED-Dimmer X9 HR DMX-Master-Dimmer The DMX-LED-Dimmer X9 HR has several Master Dimmer. These will be activated as follows: No Master Dimmer Master Dimmer for all channels Master Dimmer per RGB-group System Master Dimmer for all channels Master Dimmer for all channels The DMX channel which is adjusted as starting address will be used as master dimmer for all 9 outputs.
  • Page 15 DMX-LED-Dimmer X9 HR High Frequency Mode (from FW V1.1) The DMX-LED-Dimmer X9 HR has a High Frequency Mode. This mode is optimized for using in correlation with video recording e.g. in the TV-studio. This will be activated as follows: High Frequency Mode 2kHz High Frequency Mode 4kHz In this mode a DMX-Channel (256 steps) will be used for the brightness settings.
  • Page 16 DMX-LED-Dimmer X9 HR (from hardware V2.3) RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
  • Page 17 DMX-LED-Dimmer X9 HR Parameter ID Discovery ANSI/ Command Command Command PID:  SERIAL_NUMBER 0xD400 PID:   CURVE_DEFINITION 0xD430 PID:   SOFT_DIMMING 0xD431 1) Manufacturer depending RDM control commands(MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number.
  • Page 18 No program is allowed to access the USB-Connection. Close theDMX-Configurator and USB-Updater before USB-Cable is connected to the DMX-LED-Dimmer X9 HR. Do not start the USB-Updater if the DMX- LED-Dimmer X9 HR is in its update-mode. If an error occurs during the update, you can start from beginning every time.

  • Page 19: Factory Reset

    DMX-LED-Dimmer X9 HR Factory Reset Before running the Factory Reset, read all steps carefully. To reset the DMX-LED-Dimmer X9HRto delivery state, proceed as follows: Turn off device (disconnect power supply !) Set DIP switch 1 up to 10 to ON Turn on device (connect power supply) The LED lights up 20x during ca.
  • Page 20 DMX-LED-Dimmer X9 HR Equipment DIN-Rail housing 1050 USB-Kabel A → Mini B 5pol.
  • Page 21 DMX-LED-Dimmer X9 HR CE-Conformity This assembly (board) is controlled by a microprocessor and This assembly (board) is controlled by a microprocessor and This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of uses high frequency.
  • Page 22 DMX-LED-Dimmer X9 HR Risk-Notes You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best available technology the following risks should not excluded: available technology the following risks should not excluded:...
  • Page 23 Germany Last changes: 18.06.2020 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
