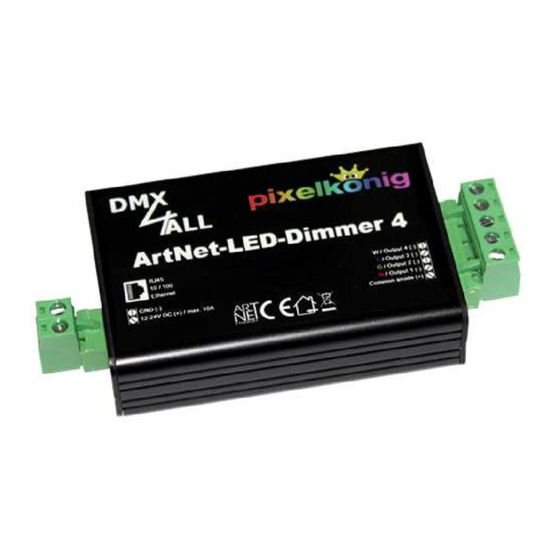

- Page 1 ArtNet-LED-Dimmer 4 User manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
- Page 2 So, a load of maximum 120W (12V) or rather 240W (24V) results. 10 user defined color changes/programs The ArtNet-LED-Dimmer 4 MK2 offers more than 10 user defined color changes. These can be created via the web browser or the Android App „DMX4ALL Remote“. Disengageable LED-Display The LED-Displays at the ArtNet-LED-Dimmer 4 are disengageable via ArtNet- Command (AcLedMute) or time-controlled.
-
Page 3: Data Sheet
LED stripe ! LED-Voltage: 12-24V DC (no AC voltage !) Ethernet: RJ45 Protocol: Art-Net™ or DMX4ALL Commands LED-Connection: 4x (R/G/B + W) max. each 10A in sum 16A with common anode (+) 4 PWM-Signals with 256 steps PWM-Frequency: 250 Hz... - Page 4 ArtNet-LED-Dimmer 4 Connection With RGB-LED-Stripe and LED-Stripe white With 4 single color LED-Stripes...
- Page 5 ArtNet-LED-Dimmer 4 Set the IP with IP-Configurator The IP-Configurator allows the IP-Address and net mask setting also, if the net work setting of the PC is not in the range of the IP range of the ArtNet-LED-Dimmer 4 Install the program IP-Configurator Connect the ArtNet-LED-Dimmer 4 to the net work and start it.
-
Page 6: Device Configuration
ArtNet-LED-Dimmer 4 Device Configuration Call the IP of the ArtNet-LED-Dimmer 4 in the web browser and within the address bar (delivery status: 2.0.0.10) to get the following configuration page: Each node needs an own IP-Address so the assignment can occur clearly within the net work. - Page 7 ArtNet-LED-Dimmer 4 In the ArtNet Settings the settings for the Subnet, Net and Port (Universe) are available. The DMX-Start address specifies the channel in the DMX-Universe on which the LED-Outputs are to be addressed. The DMX-Start address is output 1 and following addresses are outputs 2-4.
-
Page 8: Master Dimmer
ArtNet-LED-Dimmer 4 Master Dimmer The ArtNet-LED-Dimmer 4 has a Master-Dimmer to dim all outputs simultaneously. The Master-Dimmer is to activate via web configuration. The ArtNet-Channel is used as Master-Dimmer for all 4 outputs which is set as start address. The assignment is as follows: Start address + 4 Start address If no Master-Dimmer is activated the assignment for the addresses is as follows:... - Page 9 ArtNet-LED-Dimmer 4 User defined color changes/programs The ArtNet-LED-Dimmer 4 has more than 10 user defined color changes / programs (User Color) allowing to create free defined color replays up to 16 steps. The delivery status has predefined programs for the operation with RGB-LED- Stripes.
- Page 10 ArtNet-LED-Dimmer 4 By tapping Step Editor in the main menu of the web interface the dialog window USER STEP EDITOR is shown for editing the user defined color changes / program: In Step List Overview a table shows the 16 current steps (Step1 up to Step 16). Not assigned steps are not shown in the table.
- Page 11 ArtNet-LED-Dimmer 4 Name user defined programs For an easy recognition of the created program it is named. This name is used for calling up within the Remote-App. Delete user defined programs By clicking Clear all Steps the whole table is deleted. Create steps In Add Step the values for a new step are entered.
- Page 12 ArtNet-LED-Dimmer 4 Control via Smart Control The ArtNet-LED-Dimmer 4 offers the possibility to control the outputs via web interface with a color picker or slider. Thereto please select the Smart Control page: Moving the mouse over the color circle, the color is transferred to the sliders and to the value display.
- Page 13 The user defined color changes / programs of the ArtNet-LED-Dimmer 4 can be called up or edit via the Android App DMX4ALL Remote. The App DMX4ALL Remote is available for free in the Google Play-Store and can be installed with each Smartphone or Tablet with Android 4.0 or higher.
- Page 14 ArtNet-LED-Dimmer 4 By tapping the running program stops. With the stopped program runs further. By tapping the outputs are turned off respectively on. If the Blackout- Function is activated this button is shown in red. With the RGB Channel Control opens. With this function the ArtNet-LED- Dimmer can be used in a live operation.
- Page 15 ArtNet-LED-Dimmer 4 Short tapping on the entry select this and the values are shown in the area (Step Parameter) underneath as well as transferred to the ArtNet-LED-Dimmer. The entry is assigned dark. Keeping an entry pressed for a long time deletes the selected step. The area Step Parameter displays the set values.
- Page 16 ArtNet-LED-Dimmer 4 Export / Import programs With it is possible to export respectively to import a created program as file on a smartphone / tablet. To export / import the internal storage (Internal Memory) as well as the external storage from a SD-Card (External Memory) can be used. By tapping to Internal Memory respectively External Memory a storage location is selected.
- Page 17 ArtNet-LED-Dimmer 4 Live-Usage per App The ArtNet-LED-Dimmer 4 can be controlled live via App. Android Smartphones / Tablets Light Remote LITE (fee required) App for easy remote control of Art-Net-Installations integrating a user friendly design, an attractive surface with easy possibilities for color settings. Recommended for installations with one ArtNet-LED-Dimmer Light Remote...
- Page 18 ArtNet-LED-Dimmer 4 Running with WLAN The ArtNet-LED-Dimmer 4 can also be operated at a WLAN Router/Access- Point or at a WLAN-Bridge. Running at WLAN Router/Access-Point Running at WLAN- Bridge 1 Smartphone / TabletPC 2 WLAN Router/Access-Point 3 ArtNet-LED-Dimmer 4 4 LED-Stripe 5 WLAN-Bridge e.g.
-
Page 19: Factory Reset
A return can’t take place always. If necessary please set the IP again (see Set the IP with IP-Configurator or Set IP with web browser). Restore the delivery status via DMX4ALL LAN-Updater: Turn on the device Start software DMX4ALL LAN-Updater... - Page 20 ArtNet-LED-Dimmer 4 Execute Firmware-Update The ArtNet-LED-Dimmer 4 MK2 has an update-function which enables transferring prospective firmware-versions. Proceed as follows: Turn off the device Start update software DMX4ALL LAN-Updater Generate a network connection to PC Turn on the device After the yellow LED lights click FIND within the DMX4ALL LAN-Updater...
- Page 21 ArtNet-LED-Dimmer 4 Accessory RGB-LED-Stripe 5m LED-Stripe white Power supply 12V / 5A...
- Page 22 ArtNet-LED-Dimmer 4 CE-Conformity This assembly is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. Risk-Notes You purchased a technical product.
- Page 23 Germany Last changes: 26.07.2018 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
