ArtNet Multi PixxControl
User Manual
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArtNet Multi PixxControl and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMX4ALL ArtNet Multi PixxControl

Summary of Contents for DMX4ALL ArtNet Multi PixxControl

  • Page 1 ArtNet Multi PixxControl User Manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

  • Page 2: Technical Data

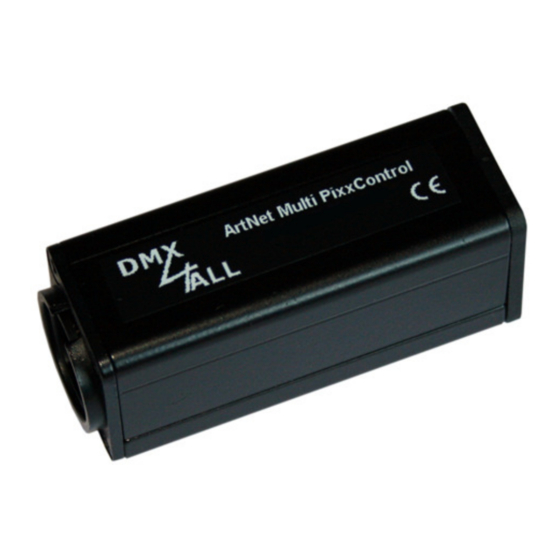

    The ArtNet Multi PixxControl has an Ethernet-Input for an Artnet-Network connection. The output is designed for controlling several pixel stripes and screens. In total the ArtNet Multi PixxControl uses 16 ArtNET-Ports (DMX-universes), each of them controls 170 RGB-Pixel. All in all up to 2720 Pixel can be controlled individually with the 16 ArtNet-Ports.
  • Page 3 ArtNet Multi PixxControl Connection POWER 5V RESET-feeler Controlling Output Ethernet-Connection Controlling output assignment: MODE PIN1 PIN2 PIN3 PIN4 MagiarLED III DATA MagiarLED II DATA TM1804 DATA TM1812 DATA TM1829 DATA WS2801 DATA WS2811 DATA WS2812 (B) DATA LPD8803 DATA Dyco LED...

  • Page 4: Display (Led)

    ArtNet Multi PixxControl Connection exaples for stripes with 2 signals (CLK+DATA) Digital LED stripes with 2 control signals DATA, CLK and GND must be connected, e.g. for the WS2801 / MagiarLED flex MultiPixx ETHERNET DMX-Controller DATA Digitaler LED-Stripe mit Digitaler LED-Stripe mit Digitaler LED-Stripe mit DATA &...
  • Page 5 Subnet mask 255.0.0.0. Please take further details from the ArtNet- specifications. The ArtNet Multi PixxControl has 4 ArtNet nodes (A-D) which can be configured separately. For a better distinction you can give every node a arbitrary name. The Short-name is limited to 18 marks and the Long-name is limited to 64 marks.
  • Page 6 ArtNet Multi PixxControl Call up the IP 2.0.0.10 in the addressing list of the web browser to get the following configuration site:...

  • Page 7: Extension Setup

    ArtNet Multi PixxControl Extension Setup In the Extension Setup the ArtNet parameters Net, SubNet and Port can be adjusted for every node.
  • Page 8 ArtNet Multi PixxControl LED-Protocol The ArtNet Multi PixxControl can output several LED-protocols. LED-Protocol max. Pixel Updates / Hz Updates / Hz Updates / Hz (680 Pixel) (1360 Pixel) (2720 Pixel) MagiarLED III 2720 MagiarLED II 2720 Dyco LED 1360 TM1804...
  • Page 9 Pixel-assignment 8-Bit Control The ArtNet Multi PixxControl controls up to 2720 RGB-Pixel. Therefore 16 ArtNet ports will be used per 170 RGB-Pixel. At the 8-bit control one channel ist used for R, G and B. This means each port (universe) can control 170 RGB pixels.
  • Page 10 The digital LED stripe UCS9812 can bes used with 16-bit control for each color. For this stripe the ArtNet Multi PixxControl has the option UCS9812 (16-Bit Ctrl) what means that each color of a pixel is controlled by 2 channles. In this case one port (universe) can coltroll 85 RGB pixels.
  • Page 11 Based on this configuration on the one hand is the ArtNet specification (Net / Subnet / port) and the other, the network specification (IP / Netmask). A ArtNet Multi PixxControl has 16 ports capable of driving each 170 pixels. The ports are assigned to the connected pixels as described above.
  • Page 12 Due to the ArtNet specification up to 4 ports can be present in one node. Each node must be configured with its own IP address. Since the ArtNet Multi PixxControl has 16 ports one device need IP addresses. When not fully exploited ArtNet Multi PixxControl can be "skipped" the Nodes / unused ports.

  • Page 13: Factory Reset

    ArtNet Multi PixxControl Factory Reset The ArtNet Multi PixxControl interface can be reset into the delivery conditions with the RJ45-connection feeler. Proceed as follows: Turn off the device Push feeler and hold Turn on the device Yellow LED flashes Release button...
  • Page 14 ArtNet Multi PixxControl Update execute The ArtNet Multi PixxControl Interface has an update-function which enables transferring prospective firmware-versions. Proceed as follows: Turn off the device Push button and hold Turn on the device Yellow LED flashes Release button Generate a network connection to PC...
  • Page 15 ArtNet Multi PixxControl Equipment MagiarLED III flex Stripe MagiarLED III flex Screen Multi PixxControl Connection cable...
  • Page 16 ArtNet Multi PixxControl Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 17 D-44869 Bochum Germany © Copyright 2014 DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
