Summary of Contents for DMX4ALL DMX-LED-Dimmer BB4
- Page 1 DMX-LED-Dimmer 4x 330mA - 1500mA User Manual...

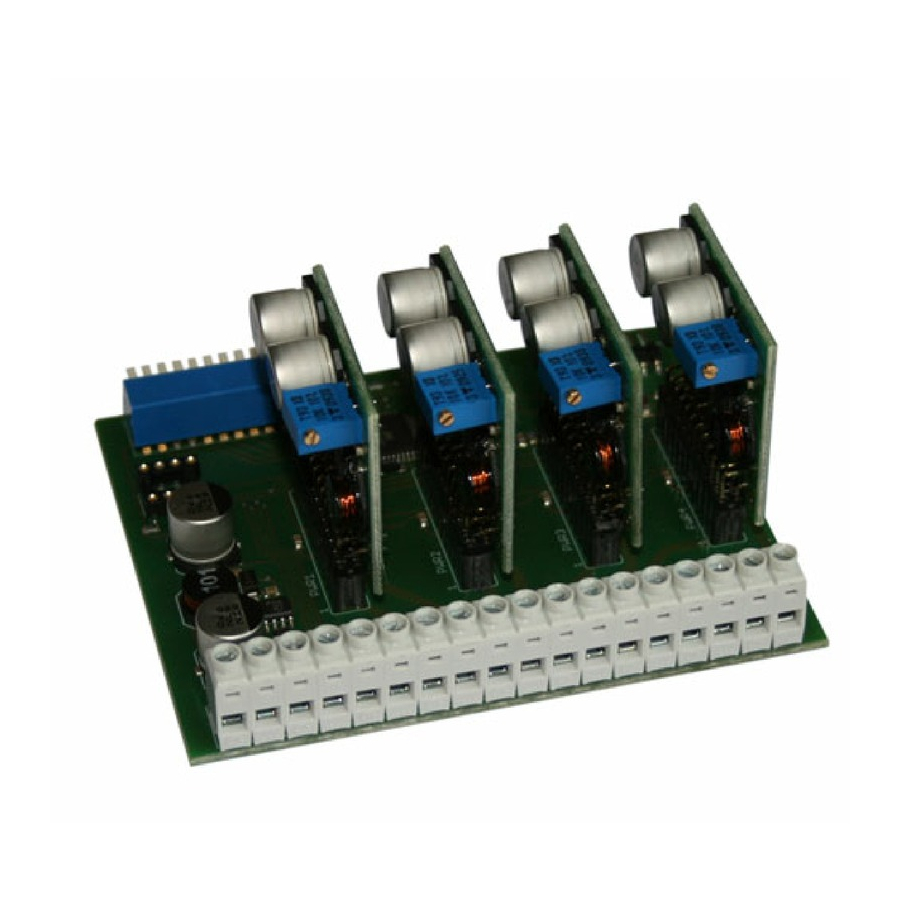

- Page 2 For your own safety, please read this user manual and warnings carefully before installation. Description The DMX-LED-Dimmer BB4 is designed to control LEDs, which operate with constant current and works with up to 24V of the LED voltage. Regulable output current The DMX LED Dimmer BB4 has 4 outputs where the LEDs are operated with a current of 0 to 330mA-1500mA.
-
Page 3: Technical Data
DMX-LED-Dimmer BB4 Technical Data Power supply: 8-24V DC (maximum 26V) 50mA (without connected load) Drop voltage: max. 2V Output current: 4x 0 – settable output current (330mA – 1500mA) Sustained short circuit / 1024 steps at each output Operation modes:... - Page 4 DMX-LED-Dimmer BB4 Connections Attention: Don’t connect the clamps among each other, e.g. V - (input) and the clamp LED (output) or the several LED clamps !!! Don’t connect the single negative outputs to the LEDs among each other !!! Not only the LEDs will be destroyed but also the drivers.
-
Page 5: Setting The Dmx-Starting Address
DMX-LED-Dimmer BB4 Setting the DMX-Starting address The DMX start address is adjustable via switches 1-9. Switch 1 has the valency 2 (=1), switch 2 has the valency 2 (=2) and so on… finally switch 9 has the valency 2 (=256). Each Switch, which is moved to ON position, represents the start address. - Page 6 DMX-LED-Dimmer BB4 Set output current Each output has a regulator for settings a regulator for settings adjusting the maximal output current. adjusting the maximal output current. The output current is in the range from in the range from 330mA up to 1500mA.
-
Page 7: Set Operation Modes
ON. Now, via switches 1-4 the outputs can be turned off and on. A RESET of the DMX-LED-Dimmer BB4 into the delivery configuration is possible if you adjust the switch 1, 3, 5, 7, 9 and 10 on ON and than switching on the power supply. - Page 8 DMX-LED-Dimmer BB4 DMX-Master-Dimmer The DMX-LED-Dimmer BB4 has different Master Dimmer. These can be activated about the jumper 1 and 2 (Jumper 3, 4, and 5 for further functions): No Master Dimmer 1 2 3 4 5 Master Dimmer for all channels...
-
Page 9: Led Connection
DMX-LED-Dimmer BB4 LED Connection The LEDs can be connected in different ways, serial and parallel or as mix. DMX IN DMX-LED-Dimmer Please keep and note the following introductions: Only use the same LEDs to output Each LED line must have an equal number of LEDs. - Page 10 DMX-LED-Dimmer BB4 Examples for the LED LED-connection Example 1: Series Connection for LEDs gets the same operation current per LED. The sum of Series Connection for LEDs gets the same operation current per LED. The sum of Series Connection for LEDs gets the same operation current per LED. The sum of the LED voltage at the output has to lay 2V lower to the operation c at the output has to lay 2V lower to the operation current.
- Page 11 DMX-LED-Dimmer BB4 Calling the internal colour changes You can call the internal colour change by turning switch 10 on ON. Now you can adjust the colour change programs via the switches 1 up to 3. Switch 4-9 = OFF / 10 = ON...
- Page 12 EEPROM with a customary programming device or with the help of a PC EEPROM with a customary programming device or with the help of a PC-cable the file must be written directly into the the file must be written directly into the DMX-LED-Dimmer BB4.
- Page 13 A graphically representation illustrates the output characteristic. For transferring the table into the D For transferring the table into the DMX-LED-Dimmer BB4 a connecting cable and Dimmer BB4 a connecting cable and a USB-connection is necessary. Please connect the cable with the PC and the nection is necessary.
- Page 14 DMX-LED-Dimmer BB4 Dimensions All details in mm...
- Page 15 DMX-LED-Dimmer BB4 Equipment Module enclosure 1050 for DIN-rail for top-hat rail mounting LED-Dimmer configuration cable...
- Page 16 DMX-LED-Dimmer BB4 CE-Conformity This assembly (board) assembly (board) is controlled by a microprocessor and is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the uses high frequency. In order to maintain the properties of the uses high frequency.
- Page 17 DMX-LED-Dimmer BB4 Risk-Notes You purchased a technica You purchased a technical product. Conformable to the best l product. Conformable to the best available technology the following risks should not excluded: available technology the following risks should not excluded: available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning.
- Page 18 Germany Last changes: 11.09.2020 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
