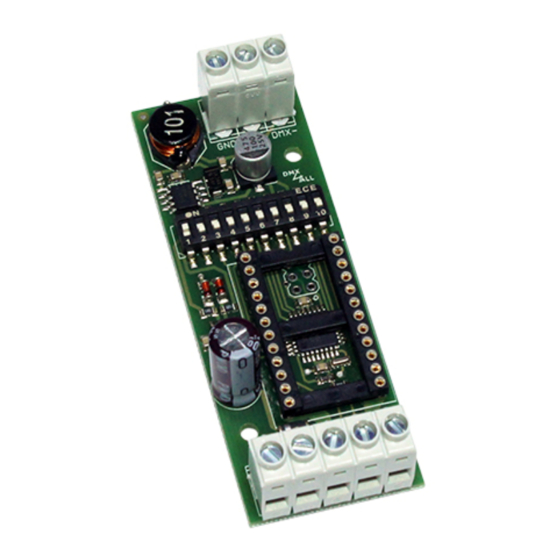

DMX-LED-Dimmer CC1
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMX-LED-Dimmer CC1 and is the answer not in the manual?

Questions and answers

Related Manuals for DMX4ALL DMX-LED-Dimmer CC1

Summary of Contents for DMX4ALL DMX-LED-Dimmer CC1

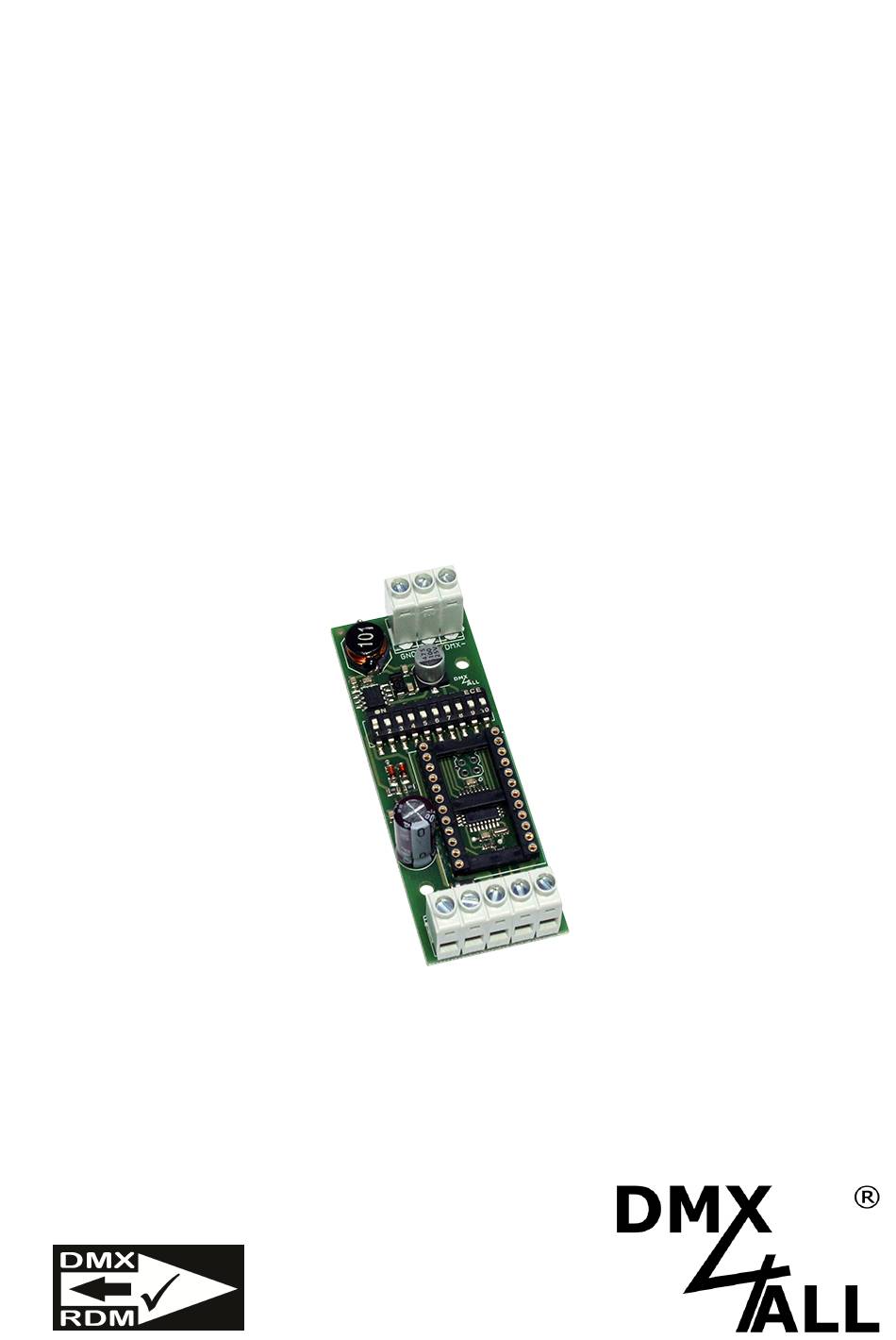

  • Page 1 DMX-LED-Dimmer CC1 User Manual...
  • Page 2 DMX signal fails. RDM support The DMX-LED-Dimmer CC1 the configuration via RDM or DMX. Top hat rail mounting available Suitable for the DMX-LED-Dimmer CC1 the DIN rail housing 350 is available as accessory.

  • Page 3: Data Sheet

    DMX-LED-Dimmer CC1 Data sheet Power supply: 9-48V DC 20mA@12V; 11mA@24V; 6mA@48V (current consumption without LED-Driver) Protocol: DMX512 DMX channels: 1 Channel DMX-FAIL: HOLD / 0-100% Output: 1 current limited dimmable LED-Output Output current according to used constant current-module PWM-Frequency: 244 Hz...
  • Page 4 DMX-LED-Dimmer CC1 Connection DMX IN DMX OUT ADDRESS 9-48V...

  • Page 5: Led Display

    DMX-LED-Dimmer CC1 LED-Display The integrated green LED is a multi-function display. During the normal operation the LED lights permanently. In this case the device is working. Furthermore, the LED shows the current status. In this case the LED lights up in short pitches and then is missing for longer time.
  • Page 6 DMX-LED-Dimmer CC1 Constant current-modules The following constant current-modules are available as accessory for the DMX-LED- Dimmer CC1: - Constant current LED-Driver LDD-300H (300mA) - Constant current LED-Driver LDD-350H (350mA) - Constant current LED-Driver LDD-500H (500mA) - Constant current LED-Driver LDD-600H (600mA)

  • Page 7: Setting The Operating Modes

    DMX-LED-Dimmer CC1 Setting the operating modes Der DMX-LED-Dimmer CC 1 has several operating modes (MODE) set as follows: • Turn on the device • Set switch 9 and 10 on ON • Set switch 10 on OFF • Adjust the operating mode via switch 1-8 •...
  • Page 8 DMX-LED-Dimmer CC1 DMX-FAIL Function The DMX-LED-Dimmer CC1 has a DMX-FAIL Function, which stores the last value after a DMX-Signal failure. This function leaves the output unchanged (HOLD) or activated with 100% (ALL ON). A power failure occurs that the last value will be rejected ! If the DMX-HOLD Function is not activated so through the output 0% will be outputted.
  • Page 9 DMX-LED-Dimmer CC1 (up to Hardware V1.3 with Firmware V1.3 or higher) RDM is the shortcut for Remote Device Management. As soon as the device is in the system, device-dependent settings can be made remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
  • Page 10 DMX-LED-Dimmer CC1 Manufacturer depending RDM control command: SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII text) of the device serial number. Send: PDL=0 Receive: PDL=21 (21 Byte ASCII-Text)

  • Page 11: Factory Reset

    DMX-LED-Dimmer CC1 Factory Reset Before running the factory reset, read all steps carefully. To reset the DMX-LED-Dimmer CC1 to delivery state, proceed as follows: Turn off device (power supply) Set DIP switch 1 up to 10 to ON Turn on the device (power supply) The LED lights up 20x during ca.
  • Page 12 DMX-LED-Dimmer CC1 Dimensions (all details in mm)
  • Page 13 DMX-LED-Dimmer CC1 Accessories Top-hat rail mounting 350 Constant current LED-Module - Constant current LED-Driver LDD-300H - Constant current LED-Driver LDD-350H - Constant current LED-Driver LDD-500H - Constant current LED-Driver LDD-600H - Constant current LED-Driver LDD-700H - Constant current LED-Driver LDD-1000H...
  • Page 14 DMX-LED-Dimmer CC1 CE-Conformity This This assembly (board) is controlled by a microprocessor and is controlled by a microprocessor and uses high frequency. In order to maintain the properties of uses high frequency. In order to maintain the properties of uses high frequency. In order to maintain the properties of...
  • Page 15 DMX-LED-Dimmer CC1 Risk-Notes You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best You purchased a technical product. Conformable to the best available technology the available technology the following risks should not excluded:...
  • Page 16 Germany Last changes: 18.06.2020 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
