Physical Details

Front Panel

Focus Ring
Microphone
Ready LED
Active LED
LAN LED
Wireless LED

Rear Panel

Antenna

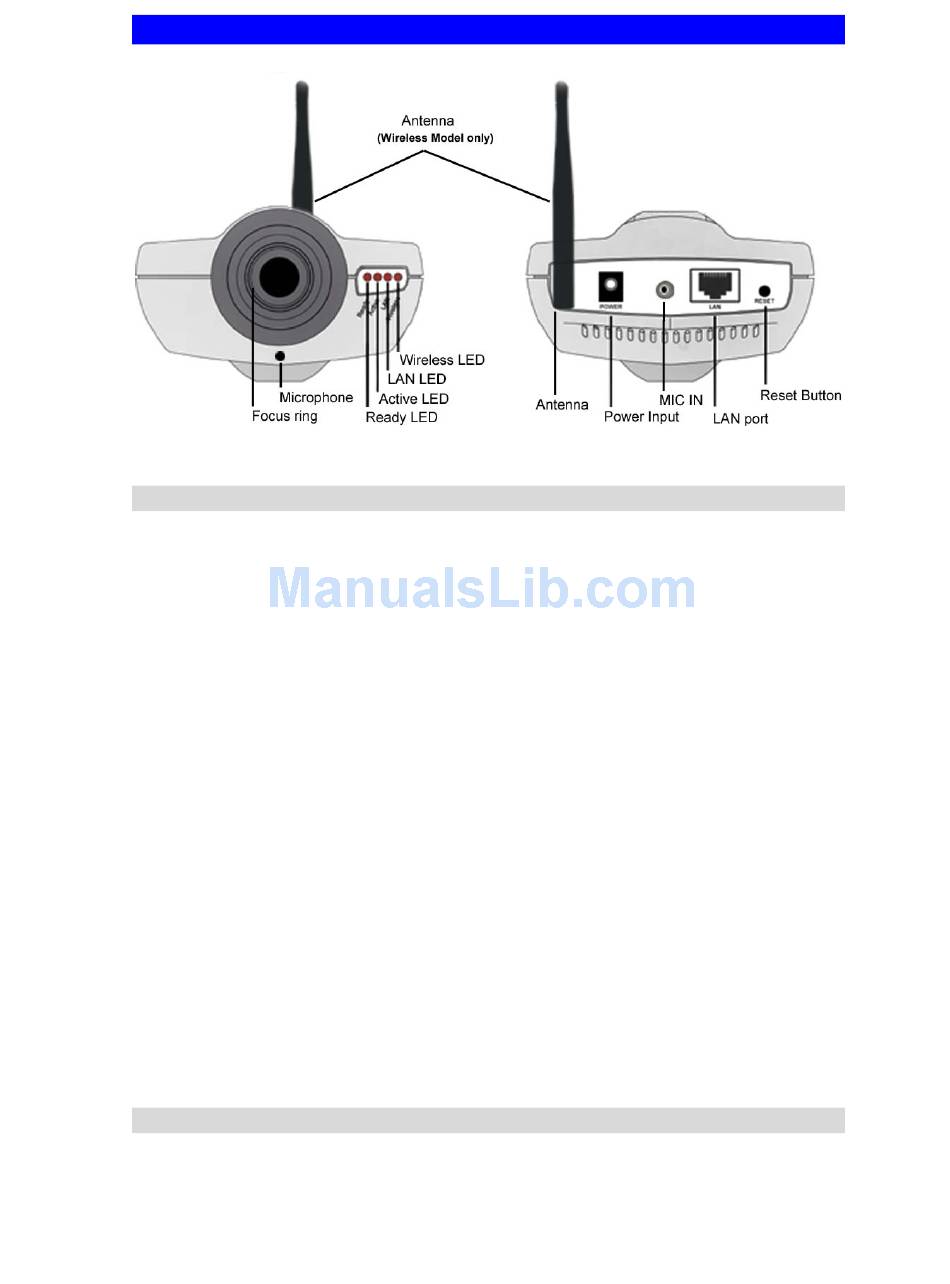

Figure 2: Camera: Front and Back Views
Normally, it is not necessary to adjust the focus. The default focus
range is from 1 meter (3 feet) to infinity. If the image is not clear, try
adjusting the focus.
The built-in microphone is mounted on the front. There is also a
connection for an external microphone on the rear. Connecting an
external microphone will disable the built-in microphone.
On - Power on.
Off - No power.
Blinking - The "Ready" LED will blink during start up. This will
take 15 to 20 seconds.
Off - Idle.
Blinking - The Camera is providing a live video stream to at least
one viewer.
On - LAN port is connected to a hub or switch.
Off - LAN port is not connected.
Blinking - Data is being transmitted or received via the LAN port.
On - Wireless interface is active.
Off - Wireless interface is not available.
Blinking - Data is being transferred via the wireless interface.
Attach the supplied antenna here. The antenna is adjustable; best
results are usually obtained with the antenna positioned vertically.
