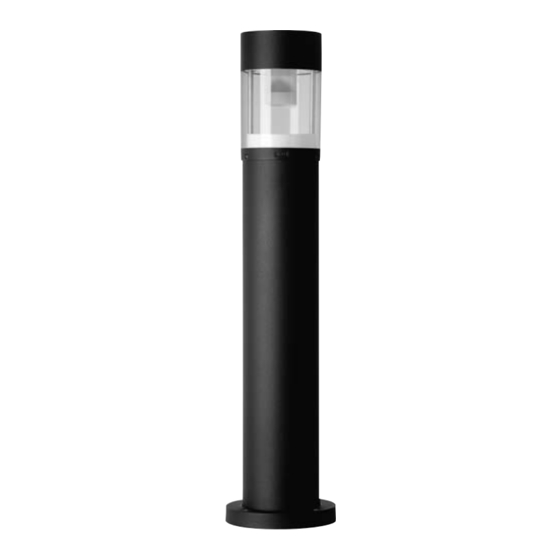

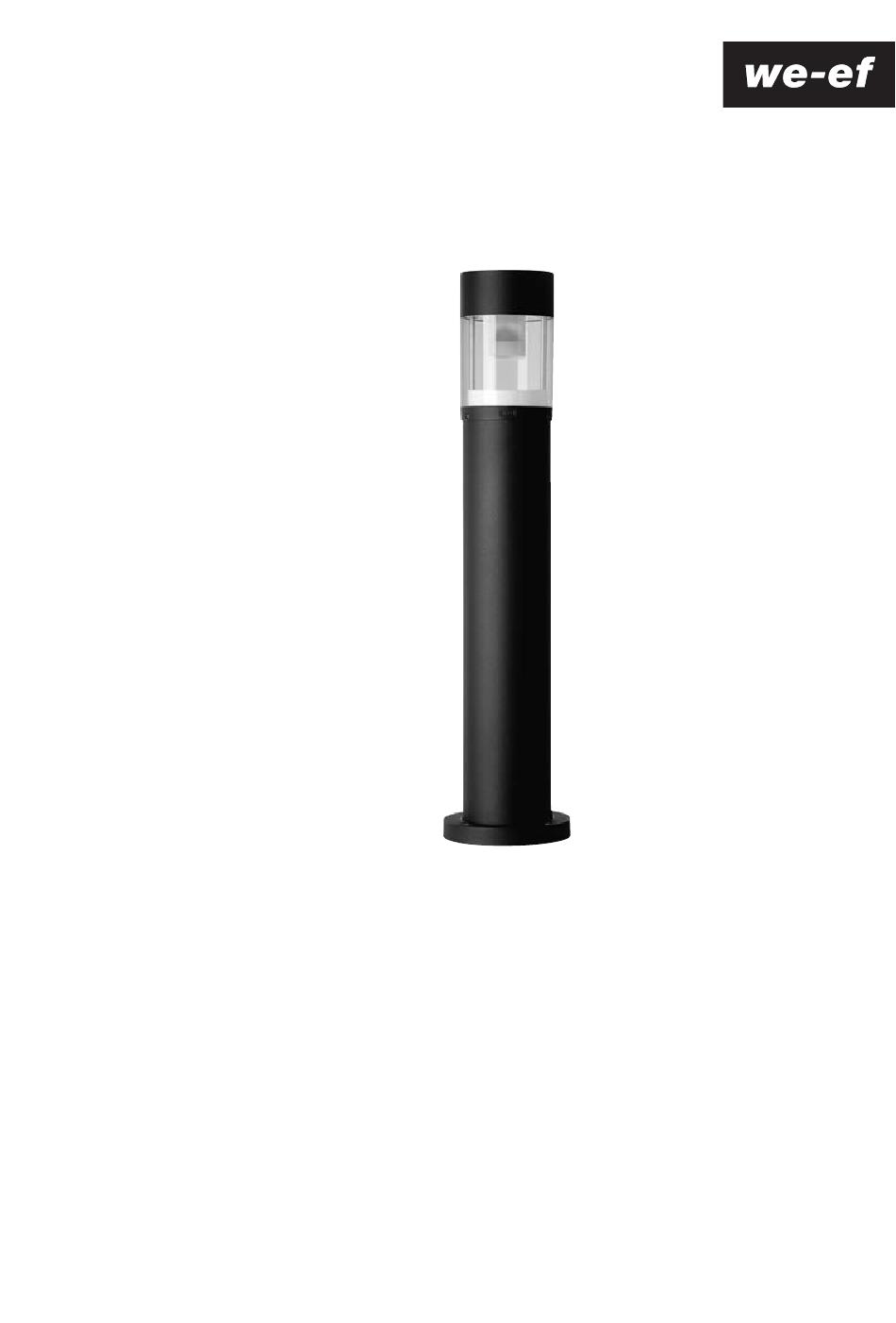

- Page 1 WE-EF LEUCHTEN Montage- und Wartungshinweise für Pollerleuchte CTY150 LED Installation and Maintenance Instructions for Bollard CTY150 LED...
-
Page 2: Montage
Bollard Lampen / Lamps ø 165 LED 17W / 24W* * Nominalleistung, aktualisierte Daten siehe www.we-ef.com * Nominal powerfor latest data refer to www.we-ef.com Schutzart/Protection: IP55, IK10 Schutzklasse/Class I, ta = 25°C 1000 Ø 9 - 17 mm ø 202 ø 230 Montagezubehör / Mounting Accessory... -
Page 3: Installation Procedure
Vorgehensweise Installation Procedure Um einen festen Stand der Leuchte zu gewähr leisten, It is recommended to incorporate the optional WE-EF sind die WE-EF Erdstücke ESV4 300-0461 oder ESV4 planted roots ESV4 300-0461 or ESV4 300-0464 to 300-0464 zu verwenden. facilitate a rigid installation. - Page 4 Erdkabelübergangskasten EK70 Cable connecting box EK70...
- Page 5 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com CTY150_LED_010315 / 006-1241 Technische Änderungen vorbehalten. Technical specifications are subject to change. © WE-EF 2015...
