Page 1: Quick Guide

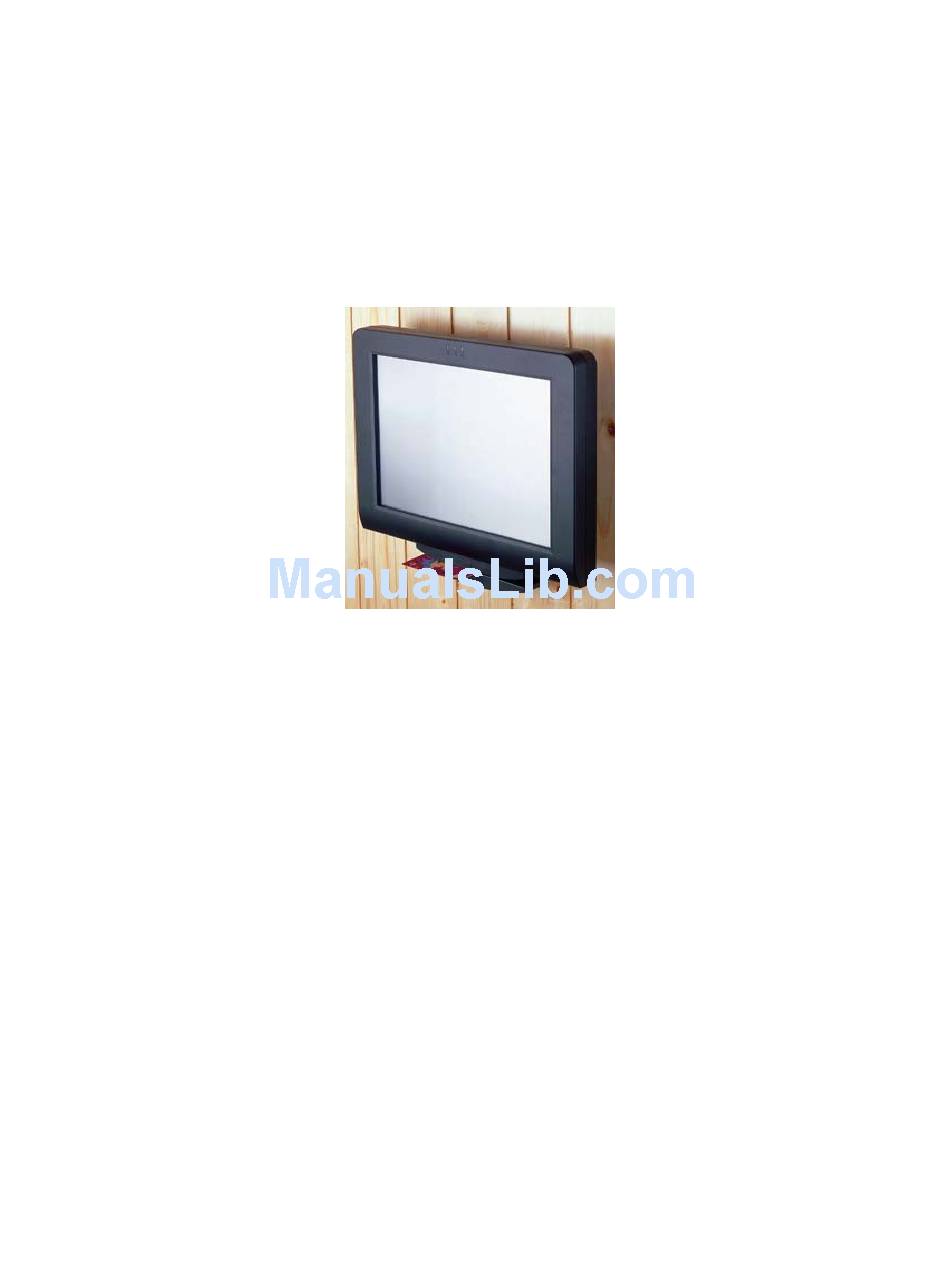

Quick Guide PC 1080 / 1090 April. 2006 (V1.0) -
Page 2: Table Of Contents
Chapter 1 Unpacking Chapter 2 Specification 2.1 Specification 2.2 I/O Ports Chapter 3 Installation 3.1 OS Installation 3.2 Touch Driver Installation 3.3 MSR / I Button PS2 Interface Installation 3.4 Wall Mount Kit Installation 3.5 Cash Drawer Chapter 4 Jumper Definition 4.1 Main Board Layout 4.2 LCD Power Setting 4.3 COM1/2 Power Selection... -
Page 3: Chapter 1 Unpacking
Unpacking the Panel PC, please check the following items are presented and in good conditions: a. Main Unit b. CD: User’s Manual & Driver Bank The driver disk includes user’s manual and all of driver software of peripheral, such as touch screen, VGA, LAN….etc. -
Page 4: Power Adapter
d. Power Adapter e. Power Cord: Optional USA, Europe, UK or Australia type. -
Page 5: Chapter 2 Specification
2.1 Specification The Panel PC system configuration including 8.4” 12.1” and 15” as followings, AMD Geode LX-800 System Memory 1 x DDR400 SO-DIMM Socket, up to 1GB TFT LCD Size 8.4” Brightness 180nits Resolution 800x600 Touch Screen 5 Wire Resistive Type No Support Compact Flash 1 x Type II, Slot... -
Page 6: I/O Ports
2.2 I/O ports Following ports show all of ports of system. a. DC IN: connector for power adapter input 12VDC. b. Cash Drawer: provide IO port address 280H for cash drawer control by RJ11. c. COM 1/2: standard D sub serial port with 5V / 12VDC selected on pin9. d. -
Page 7: Chapter 3 Installation
3.1 OS Installation 3.1.1 Embedded WEPOS / WinCE If you bought the system including WEPOS / WinCE operation system, please follow up below procedure. a. Connect CDROM to the USB port of system. b. Turn on the system and enter completely into WEPOS. c. -
Page 8: Touch Driver Installation
e. Press “F10” to save setup change and quit. f. Install the Win XP, follow up the OS installation guide. Phoenix – Award BIOS CMOS Setup Utility Advanced BIOS Features Virus Warning CPU Internal Cache Boot From Lan Control First Boot Device Second Boot Device Third Boot Device Boot Other Device... -
Page 13: Msr / I Button Ps2 Interface Installation
3.3 MSR / I-Button PS2 interface Installation a. The MSR Kit included Bracket and Module. b. Turn the system to rear side. c. Screw up the bracket on the fixed hole. -
Page 14: Wall Mount Kit Installation
d. Screw up the MSR module and connect the cable into connector. 3.4 Wall Mount Kit Installation a. Screw up the female bracket on the mounting wall. b. Screw up the male bracket on the rear side of the system. -
Page 15: Cash Drawer
c. Hang up the system to the bracket and slide to track for fixed. 3.5 Cash Drawer For the 3 version M/B which is released from end of April. The cash drawer pin assignment as followings. In order to program the cash drawer easily, we also provide OPOS driver. Note: I/O Address: 280H for Cash Drawer which is controlled by Data bit: DIN0=>Bit 0, DOUT0=>FF... -
Page 16: Chapter 4 Jumper Definition
Chapter 4 Jumper Definition 4.1 Main Board Layout... -
Page 17: Lcd Power Setting
4.2 LCD Power setting • JP2: This jumper is for the setting of LCD panel voltage. JP2 Description +3.3V • JP2: This jumper is for the setting of LCD panel shift clock. JP2 Description Inverted Normal 4.3 COM1/2 Power Selection Description COM1 RI Pin Use +12V COM1 RI Pin Use +5V... -
Page 18: Fan Connector
HDC CS0# HDD ACTIVE# VCC5 b. CN8: Compact Flash Storage Card Socket Description GROUND CS1# GROUND CARD DETECT2 4.6 Fan Connector These connectors can supply +5V/500mA to the cooling fan. In the connector there have a “rotation” pin. The rotation pin is to get the fan’s rotation signal to system. So the system BIOS could recognize the fan speed. Please note only specified fan offers the rotation signal. -
Page 19: Serial Port
4.7 Serial Ports The system provides three high speed NS16C550 compatible UARTS with Read/Receive 16 byte FIFO. Four com ports are in IO connector. • COM1: CN25 DB9-pin header • COM2: CN26 DB9-pin header DATA CARRIER DETECT (DCD) RECEIVE DATA (RXD) TRANSMIT DATA (TXD) DATA TERMINAL READY (DTR) GROUND... -
Page 20: Vga Connector
• CN21: Power Connector Input Description Power IN(+12V) Power IN(+12V) • CN28: Power Connector Output Description PIN Description +12V 4.9 VGA Connector The pin assignments are as following. • CN3: 10-pin Connector Description GREEN BLUE HSYNC VSYNC 4.10LCD & INVERTOR Connector The pin assignments are as following. -
Page 21: Usb Port Connector
GROUND +12V GROUND 4.11USB Port Connector • USB1: CN22 • USB2: CN23 • USB3: CN31 • USB4: CN15 Description DATA- DATA+ GROUND 4.12 Audio Connector The pin assignments are as following. • CN17: LINE_OUT connector Description LINE_OUT_L LINE_OUT_GROUND LINE_OUT_R • CN16: MIC_IN connector Description MIC_IN... -
Page 22: Cash Drawer
Description Reset button + Reset button - 4.15 Cash Drawer Connector • CN20 DESCRIPTION GROUND DIN_0 4.16 Keyboard / Mouse connector • CN19: Keyboard/Mouse Connector 4.17 Touch Connector The pin assignments are as following. • CN29: Touch 5W connector • CN30 : Touch 7W connector DESCRIPTION DOUT_0...
