SPECIFICATION

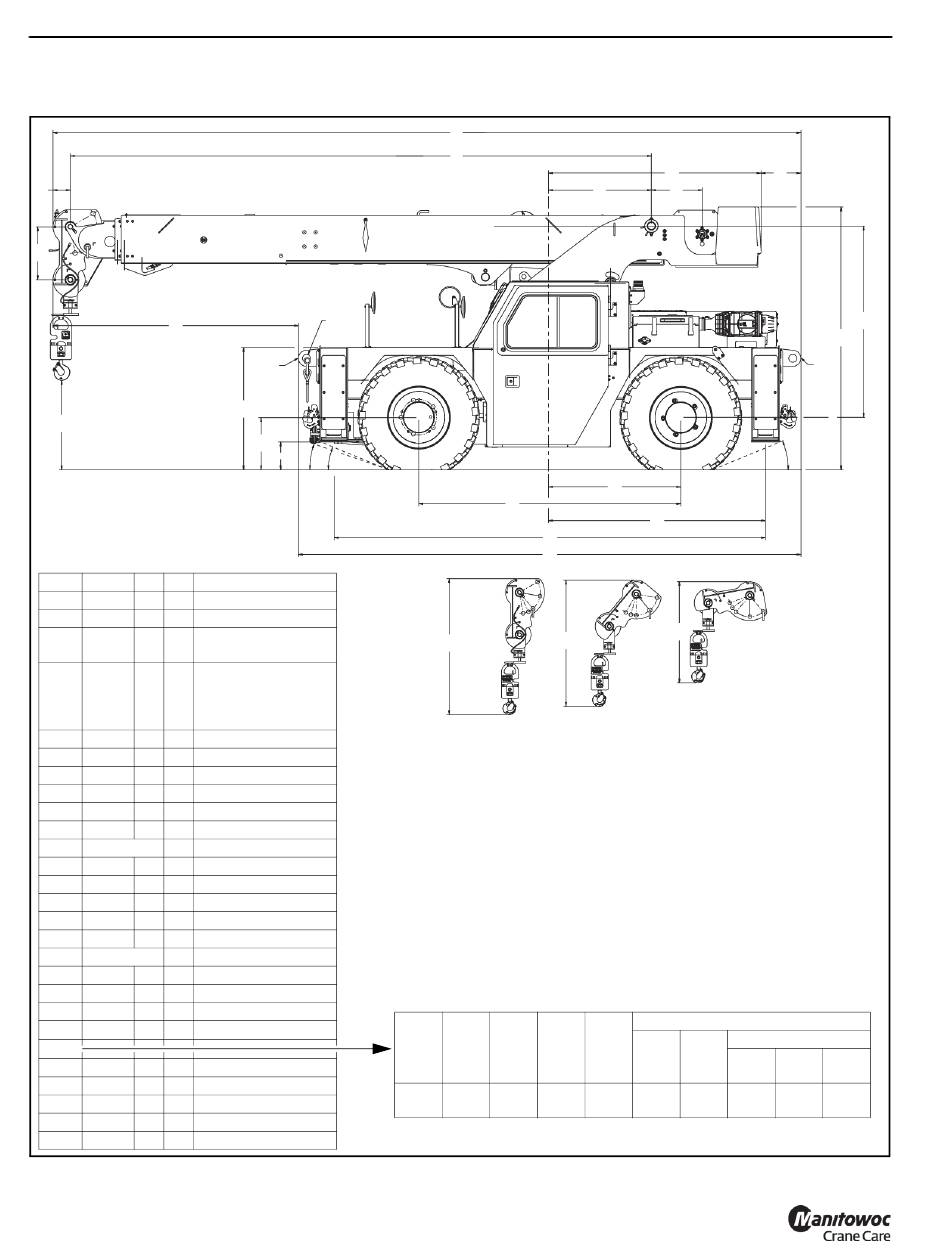

DIMENSIONS (SIDE VIEW)

B
A
W
Z
Item mm ft in
A 500 1 8
B 165 0 7
C 7066 23 2 41 ft Boom Retracted
6853 22 6 50 ft Boom Retracted
D 5489 18 0 41 ft Boom Retracted
12500 41 0 41 ft Boom Extended
5277 17 4 50 ft Boom Retracted
15253 50 1 50 ft Boom Extended
E 2009 6 7
F 972 3 3
G 480 1 7
H 376 1 3
J 1805 5 11
K 2481 8 2
L 22°
M 1250 4 1
N 2476 8 2
P 2050 6 9
Q 4075 13 5
R 4747 15 7
S 19°
T 262 0 11
U 494 1 8
V 1154 3 10
W 2319 7 7
X
Y 76 0 3
Z 846 2 10
AA 1613 5 4
AB 1495 4 11
AC 1200 3 11
8-8
Y
X
V
U
T S L
Comments
NOTE 1: Lifting of the crane must be accomplished utilizing the specified fittings
indicated at "X".
NOTE 2: Rigging personnel shall be responsible for proper selection and placement
of all slings and load handling devices.
NOTE 3: Dimensions and heights shown are for largest configuration available.
NOTE 4: Rigging personnel shall verify dimensions required for clearance.
NOTE 5: Do not use pintle hooks or counterweight lugs for lifting or tie down of the
crane.
Optional
4 lifting holes
0° Boom Head
40° Boom Head
80° Boom Head
Published 3-30-2018, CTRL 636-05
C
D
N
Q
R
AB
AA
Item Qty Lift Tow
X 4 OK OK
CD15 OPERATOR MANUAL
E
F G
M
P
AC
Capacity – Metric Ton (US Ton)
Tie Tie Down
Lift
Down
Tow
Fore
Aft
OK 25.4 25.4 25.4
(28) (28) (28)
H
J
K
X
L
Side Down
7.3 25.4
(8) (28)
