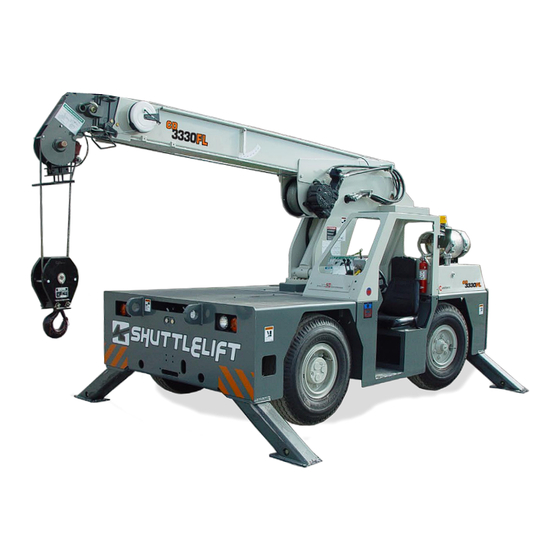

Shuttlelift CD3300 Series
Product Guide
Features
•
CD3330F: 7,7 t (8.5 USt) three-section boom
with 7,6 m (25 ft 2 in) tip height
•
CD3330FL: 7,7 t (8.5 USt) three-section boom
with 10,2 m (33 ft 6 in) tip height
•
CD3339: 8,1 t (9 USt) three-section boom with
11,6 m (38 ft 2 in) tip height
•
CD3340B: 9,5 t (10.5 USt) three-section boom
with 11,6 m (38 ft 2 in) tip height
•
1,8 m (6 ft) fixed extension (CD3330F/
CD3330FL) and 3,6 m (12 ft) offsettable
swingaway extension (CD3339 and CD3340B)
•
63,4 kW (85 bhp) Cummins diesel engine or
59,6 kW (80 bhp) GM EFI dual fuel engine
Advertisement
Table of Contents
Related Manuals for Manitowoc Shuttlelift CD3300 Series
Summary of Contents for Manitowoc Shuttlelift CD3300 Series

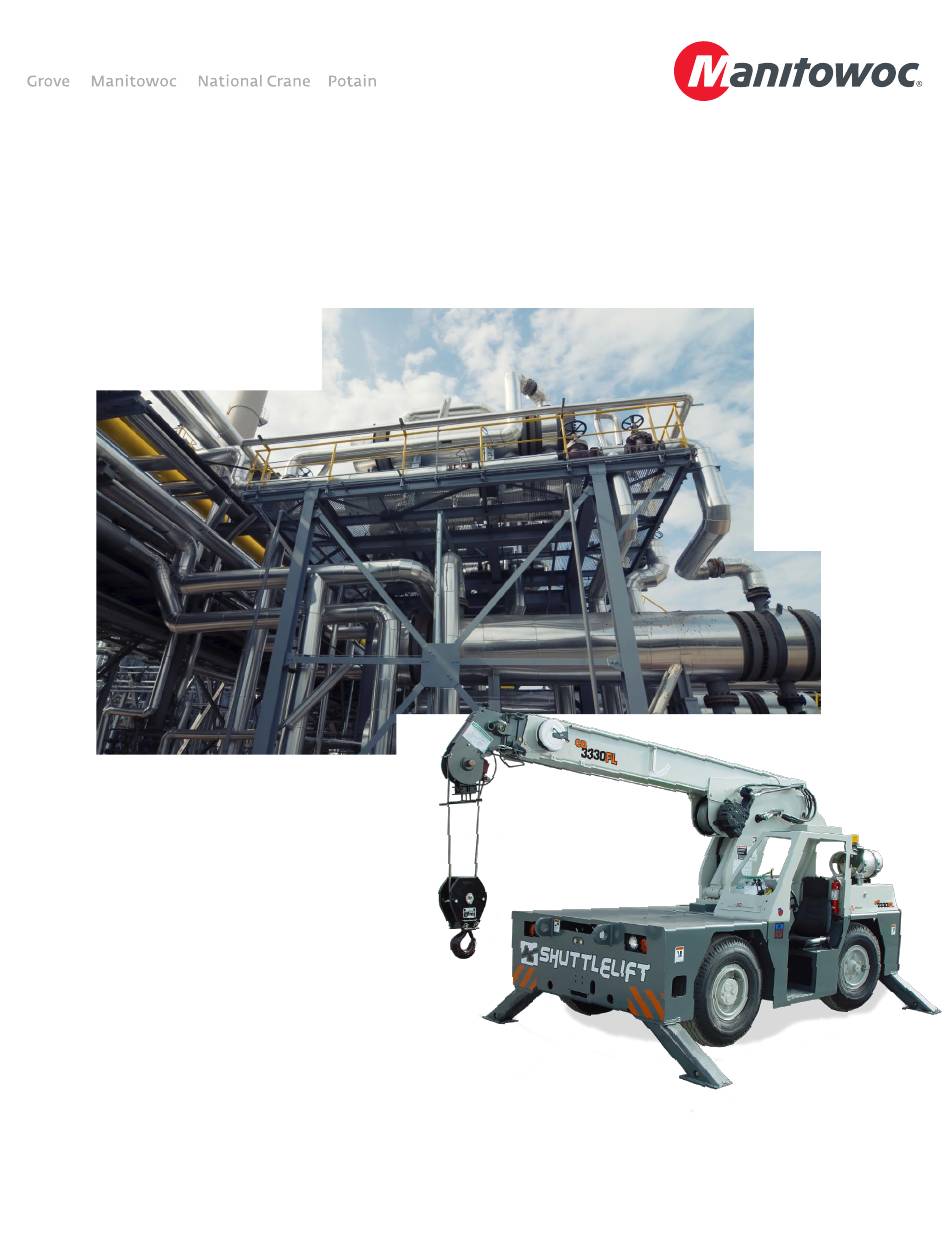

- Page 1 Shuttlelift CD3300 Series Product Guide Features • CD3330F: 7,7 t (8.5 USt) three-section boom with 7,6 m (25 ft 2 in) tip height • CD3330FL: 7,7 t (8.5 USt) three-section boom with 10,2 m (33 ft 6 in) tip height •...
- Page 2 Features Boom Standard: 6,4 m (21 ft) main boom on the CD3330F. 9,1 m (30 ft) main boom on the CD3330FL. 10,0 m (32 ft 10 in) main boom on the CD3339 and CD3340B. Optional: Manual fourth main boom section adds 3,0 m (10 ft) additional main boom length on CD3340F and CD3330FL only.
- Page 3 Contents Specifications CD3330F (dimensions/range diagram/load chart) CD3330FL (dimensions/range diagram/load chart) CD3339 (dimensions/range diagram/load chart) CD3340B (dimensions/range diagram/load chart) Symbols glossary...
- Page 4 Specifications Superstructure Load indicator (LSI) Boom A simple, effective, and easy to use load indicating system used in conjunction with the anti-two block CD3330F: 2,9 m – 6,5 m (9 ft 8 in – 21 ft 2 in) system to assist the operator in efficient operation of three- section full power boom.
- Page 5 The LSI (load indicator) receiver is mounted to the top of the dash and provides warning for A2B and exceeded load capacity. *Denotes optional equipment Shuttlelift CD3300 Series...
- Page 6 Specifications *Operators control station enclosed Tires Includes the standard cab shell with the addition of 10.00 x 15 16PR pneumatic front and rear glass and glass on the right side. Hinged full door with sliding glass. Brakes Front windshield wiper and heater and defroster is included.
- Page 7 2,39 m (7' 10") 1,77 m (5' 9.7") 1,07 m (3' 6") On tires 0,25 m (9.5") 1,60 m (5' 3") 1,93 m (6' 4") 1,99 m (6' 6.25") 2,81 m (9' 2.75") 3,10 m (10' 2") Shuttlelift CD3300 Series...
- Page 8 Range diagram CD3330F 60° 45° 30° 15° 0° Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 9 Min. breaking strength 29,750 lb THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane. Shuttlelift CD3300 Series...
- Page 10 Dimensions CD3330FL �,�� m ��' �"� �,�� m ��' �.��"� �,�� m ���' �"� Retracted �,�� m ���' �.��"� Extended ��,� cm �,�� m ��.�"� ��' �"� �,�� m ��' �.��"� �,�� m �,�� m ��.��"� ��' ��.�"� �,� m ��' �.�"�...
- Page 11 Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 12 Range diagram CD3330FL (Four-section boom) ��˚ ��˚ ��˚ ��˚ �˚ Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 13 Minimum breaking strength ��,��� lb THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 14 ��SECTION MAIN BOOM ��SECTION MAIN BOOM W/ �TH RETRACTED W/ �TH EXTENDED Radius Radius ON OUTRIGGERS �lb� ON RUBBER �lb� ON OUTRIGGERS �lb� ON RUBBER �lb� �ft� �ft� ���° ���° ���° ���° Load chart � ����� ����� ����� ����� � �...
- Page 15 THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 16 Range diagram CD3339 � � � � � � � � �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��° ��° ��,�� m ���' ��"� boom ��...
- Page 17 Min. breaking strength ��,��� lb THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 18 Dimensions CD3340B Retracted �,�� m ���'���"� and Extended ��,�� m ���' � ��"� �,�� m �,�� m ��' � �.�"� ���' � �.��"� �,�� m ��� mm ���' � �.�"� ���"� ��� mm ��� mm ���.�"� ���.�"� See Inset Main block two�part line ���...
- Page 19 Operating radius in feet from axis of rotation THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 20 Load chart CD3340B ON OUTRIGGERS �lb� ON RUBBER �lb� JIB STRUCTURAL CAPACITIES �lb� MAIN EXTENDED ���˚ ON OUTRIGGERS �lb� ON RUBBER �lb� JIB STRUCTURAL CAPACITIES �lb� RADIUS RETRACTED ���˚ ���˚ �� ft JIB �� ft JIB BOOM RETRACTED F/R MAIN �ft�...
- Page 21 Transmission THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE. Shuttlelift CD3300 Series The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
- Page 22 Notes...
- Page 23 Notes Shuttlelift CD3300 Series...
- Page 24 Regional headquarters Manitowoc - Americas Manitowoc - Europe, Middle East & Africa Manitowoc - Asia Pacific Manitowoc, Wisconsin, USA Ecully, France Shanghai, China Tel: +1 920 684 6621 Tel: +33 (0)4 72 18 20 20 Tel: +86 21 6457 0066...
