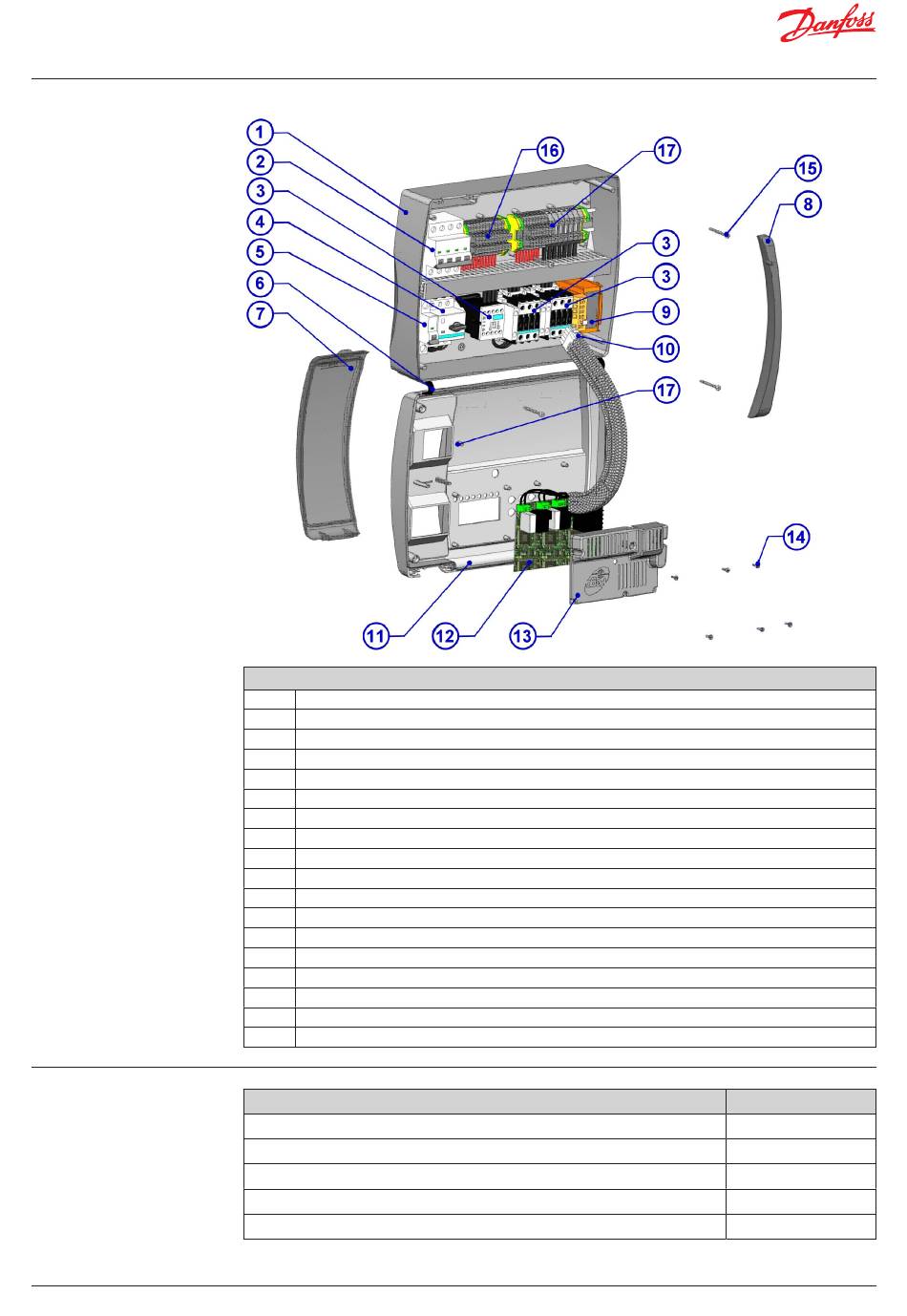

9.2 Part List

10.0 Ordering

© Danfoss | DCS (vt) | 2020.03
Ref. Description
1. Box rear in Abs
2. 4 poles magnetothermic circuit breaker with general switch / general protection function
3. Contactors for units control
4. Compressor protection motor circuit breaker
5. Auxiliary protection 1-pole magnetothermic circuit breaker
6. Box front opening hinges
7. Front cover in transparent polycarbonate
8. Transparent polycarbonate screw cover
9. Auxiliary circuits transformer (N.B. with inside a glass fuse 10 x 20 F250 mA 250 V)
10. Connector for linking panel and the electronic card
11. Front panel
12. Electronic card
13. Electronic card cover
14. Electronic card fixing screws
15. Box closure screws
16. Auxiliary terminal block X1
17. Power terminal block X2
Type
Optyma Control, three phase (4HP), including 2 sensors, 4.5 – 6.3 A
Optyma Control, three phase (4HP), including 2 sensors, 7 – 10 A
Optyma Control, three phase, (7.5HP), including 2 sensors, 11 – 16 A
Optyma Control, three phase, (7.5HP), including 2 sensors, 14 – 20 A
Sensor EKS 221 (spare part)
Key
BC317523579312en-000101 | 19
Code No.
080Z3221
080Z3222
080Z3226
080Z3227
084N3210
