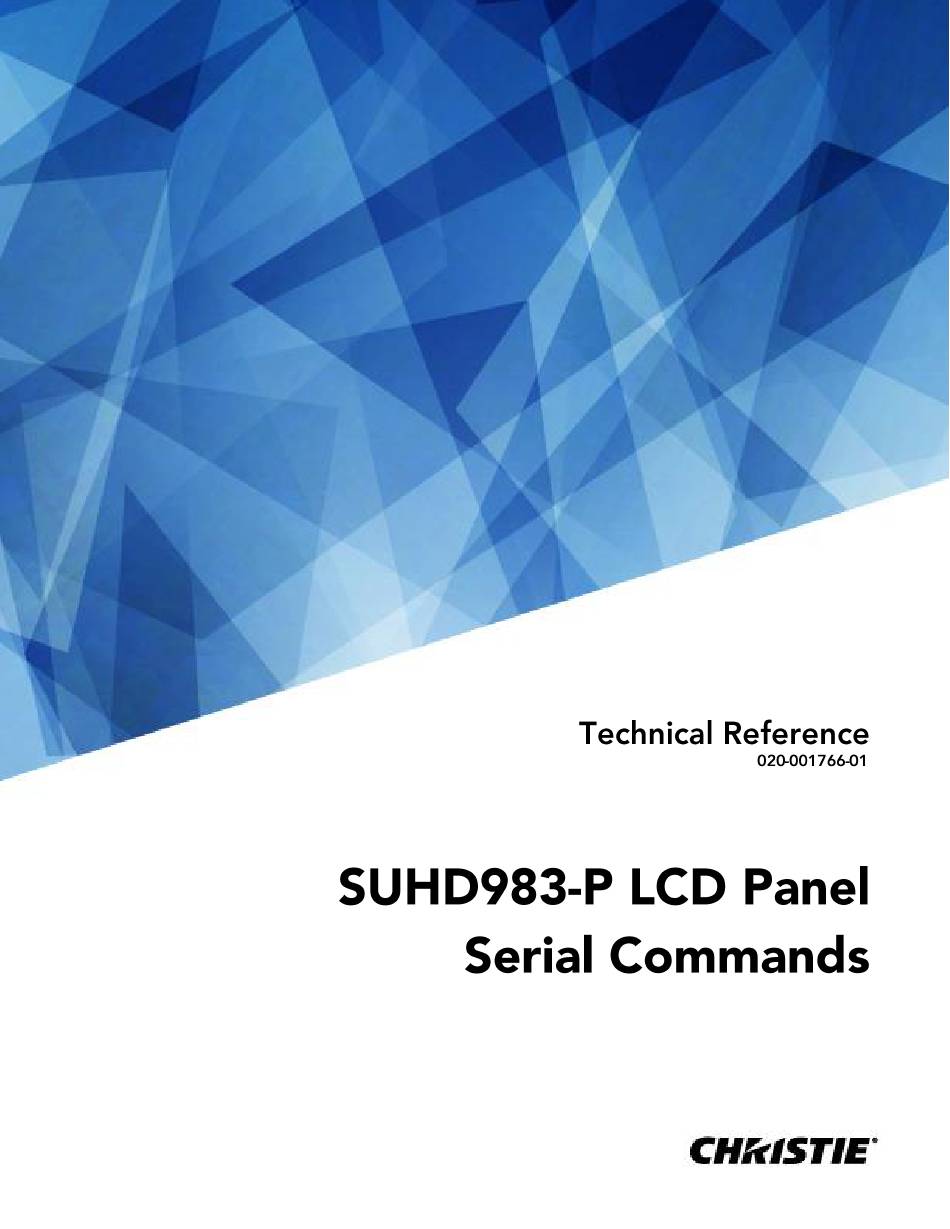

Christie SUHD983-P Technical Reference

Lcd panel serial commands
Hide thumbs Also See for SUHD983-P:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Christie SUHD983-P

Summary of Contents for Christie SUHD983-P

  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.
  • Page 3 Increase/Decrease volume ....................21 Increase/Decrease balance ....................22 Set language ........................22 Set OSD time ........................23 Set power save........................ 23 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 4 Get color temperature ...................... 35 Get red gain ........................35 Get green gain ........................ 35 Get blue gain ........................36 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 5 Red gain ......................... 50 Green gain ........................50 Blue gain ........................51 Baudrate adjustment ......................51 Remote control ........................ 51 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 6 Serial Number read ......................52 Model name read ......................52 Firmware version read ...................... 53 Scheme selection ......................53 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 7 Format : [HEAD][SET ID][COMMAND][END] Example (Power on) : K:ALLPON. • [HEAD] indicates the start of the command data (always “K:”). SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 8 If the data is data write mode, it returns the data of the PC computer. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 9 Black Level 1step Up Direct Control Black Level 1step Down Direct Control Color 1step Up Direct Control Color 1step Down SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 10 OSD Time Off Direct Control OSD Time 5Sec Direct Control OSD Time 10Sec Direct Control OSD Time 20Sec SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 11 Window1 Input HDMI1 Direct Control Window1 Input HDMI2 Direct Control Window1 Input HDMI3 Direct Control Window1 Input HDMI4 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 12 Direct Control Remote control Select key Direct Control Remote control Menu key Direct Control Remote control Info key SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 13 Status check Red Gain Setting 0~100 Status check Green Gain Setting 0~100 Status check Blue Gain Setting 0~100 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 14 Preset Mode status 000=Multi mode off 001=Preset1 002=Preset2 003=Preset3 004=Preset4 005=Preset5 006=Preset6 007=Preset7 008=Preset8 009=Preset9 010=Preset10 011=Preset11 012=Preset12 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 15 Window3 Source Status 000=DP1 001=DP2 002=HDMI1 003=HDMI2 004=HDMI3 005=HDMI4 006=DVI 007=OPS-HDMI 008=OPS-DP Status check Window4 Source Status 000=DP1 001=DP2 002=HDMI1 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 16 K:ALLSH0. Set the source to DP1. K:ALLSH1. Set the source to DP2. K:ALLSH2. Set the source to HDMI1. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 17 Set the picture mode to dynamic. K:ALLPM2. Set the picture mode to user. Examples Set the picture mode to standard. K:ALLPM0. Result: ALL:PM0=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 18 K:ALLCON. Increase contrast one step. K:ALLCON. Decrease contrast one step. Examples Increase contrast one step. K:ALLCON. Result: ALL:CON=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 19 K:ALLSPU. Increase sharpness ten step. K:ALLSPD. Decrease sharpness ten step. Examples Increase sharpness ten step. K:ALLSPU. Result: ALL:SPU=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 20 K:ALLGGU. Increase green gain one step. K:ALLGGD. Decrease green gain one step. Examples Increase green gain one step. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 21 Set the sound input to OPS DP. Examples Set the sound input to DP1. K:ALLAI0. Result: ALL:AI0=A Up/down the volume one step. Commands SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 22 Set the language to Korean. K:ALLLRU. Set the language to Russian. Examples Set the language to English. K:ALLLES. Result: ALL:LES=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 23 Set the movie mode to middle. K:ALLMM3. Set the movie mode to high. Examples Set the power save to off. K:ALLMM0. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 24 Run the factory reset. Commands Command (ASCII) Description Values K:ALLFTR. Run the factory reset. Examples Run the factory reset. K:ALLFTR. Result: SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 25 Set the multi-window mode to triple4. K:ALLWM9. Set the multi-window mode to quad. Examples Set the multi-window mode to single. K:ALLWM0. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 26 K:ALLW28. Set the window2 input to OPS DP. Examples Set the window2 input to DP1. K:ALLW20. Result: ALL:W20=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 27 Set the window4 input to OPS DP. Examples Set the window4 input to DP1. K:ALLW40. Result: ALL:W40=A Remote control key action. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 28 Set brightness to specific value. Picture mode shoud be set to ‘user’. Commands Command (ASCII) Description Values K:ALLBLT(value). Set brightness to ‘value’. 0~100 Examples Set brightness to ‘80’. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 29 Commands Command (ASCII) Description Values K:ALLSAT(value). Set saturation to ‘value’. 0~100 Examples Set saturation to ‘80’. K:ALLSAT080. Result: SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 30 Values K:ALLGGN(value). Set green gain to ‘value’. 0~100 Examples Set green gain to ‘80’. K:ALLGGN080. Result: ALL: GGN=A SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 31 0~100 Examples Set balance to ‘80’. K:ALLBCT080. Result: ALL: BCT=A Set Power Off Mode: standby, sleep, deep sleep. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 32 1=off (power save off) 2=off (RS232, remote control off) Examples Get power status value. K:ALLPWR? Result: ALL: PWR=000 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 33 ALL: PMT=000 Get brightness value. Commands Command (ASCII) Description Values K:ALLBLT? Get brightness value. 0 ~ 100 Examples SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 34 Get sharpness value. Commands Command (ASCII) Description Values K:ALLSHA? Get sharpness value. 0 ~ 100 Examples Get sharpness value. K:ALLSHA? SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 35 Get green gain value. Commands Command (ASCII) Description Values K:ALLGGN? Get green gain value. 0 ~ 100 Examples SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 36 5=HDMI4 6=DVI 7=OPS HDMI 8=OPS DP Examples Get audio input value. K:ALLAUT? Result: ALL: AUT=001 Get volume value. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 37 K:ALLBCT? Get OSD language value. 3=French 4=Italian 5=Russian 6=Korean Examples Get OSD language value. K:ALLLAT? Result: ALL: LAT=001 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 38 Commands Command (ASCII) Description Values K:ALLPRS? Get preset mode value. 0=Off 1=preset1 2=preset2 3=preset3 4=preset4 5=preset5 6=preset6 7=preset7 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 39 Get movie mode value. Commands Command (ASCII) Description Values K:ALLMMT? Get movie mode value. 0=Off 1=low 2=middle 3=high SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 40 1=dual1 2=dual2 3=dual3 4=dual4 5=triple1 6=triple2 7=triple3 8=triple4 9=quad Examples Get uart status value. K:ALLWMT? Result: ALL: WMT=001 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 41 Get window2 input value. K:ALLW2S? Result: ALL: W2S=001 Get window3 input value. Preset mode should be selected before send command. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 42 Examples Get window4 input value. K:ALLW4S? Result: ALL: W4S=001 Get mute status value. Commands Command (ASCII) Description Values SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 43 K:ALLMUT? Get mute status value. 0=mute off 1=mute on Examples Get mute status value. K:ALLMUT? Result: ALL: MUT=001 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 44 00 = return to host (response from the LCD panel) • 01 = read/action • 02 = write • [VALUE] is the parameter setting for the command. SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 45 (DEC) (HEX) Power control 50 4F 57 Input Source 4D 49 4E HDMI1 HDMI2 HDMI3 HDMI4 OPS HDMI SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 46 4D 4E 41 name 6 Bytes Read firmware 47 56 45 version Scheme selection User 53 43 4D Standard Dynamic SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 47 07 01 02 42 52 49 50 08 Set backlight to ‘value’. 0 ~ 100 ( 0 ~ 0x64) SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 48 07 01 02 53 41 54 50 08 Set saturation to ‘value’. 0 ~ 100 ( 0 ~ 0x64) SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 49 07 01 00 42 4C 43 00 08 Set / get color temperature Commands Command (hex) Description Values SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 50 Set green gain to 80 (0x50). 07 01 02 55 53 47 50 08 Result: 07 01 00 55 53 47 50 08 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 51 07 01 02 52 43 55 05 08 Act Right key. 5=right 07 01 02 52 43 55 06 08 Act Enter key. 6=enter SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 52 Read the model name. Commands Command (hex) Description Values 07 01 01 4D 4E 41 08 Read model name (13Bytes) Examples SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 53 Set picture mode to user. 07 01 02 53 43 4D 00 08 Result: 07 01 00 53 43 4D 00 08 SUHD983-P LCD Panel Serial Commands Technical Reference 020-001766-01 Rev. 1 (01-2020) Copyright 2020 Christie Digital Systems USA, Inc. All rights reserved. ©...
