Measuring Insertion Loss
6. The relative power displayed by the IQ-1200 is the insertion loss of the
device under test.
Since the IQ-1200 is a 4 channel power meter, the above procedure could be
used to perform 4 simultaneous insertion loss measurements as shown in
Figure 6-4.

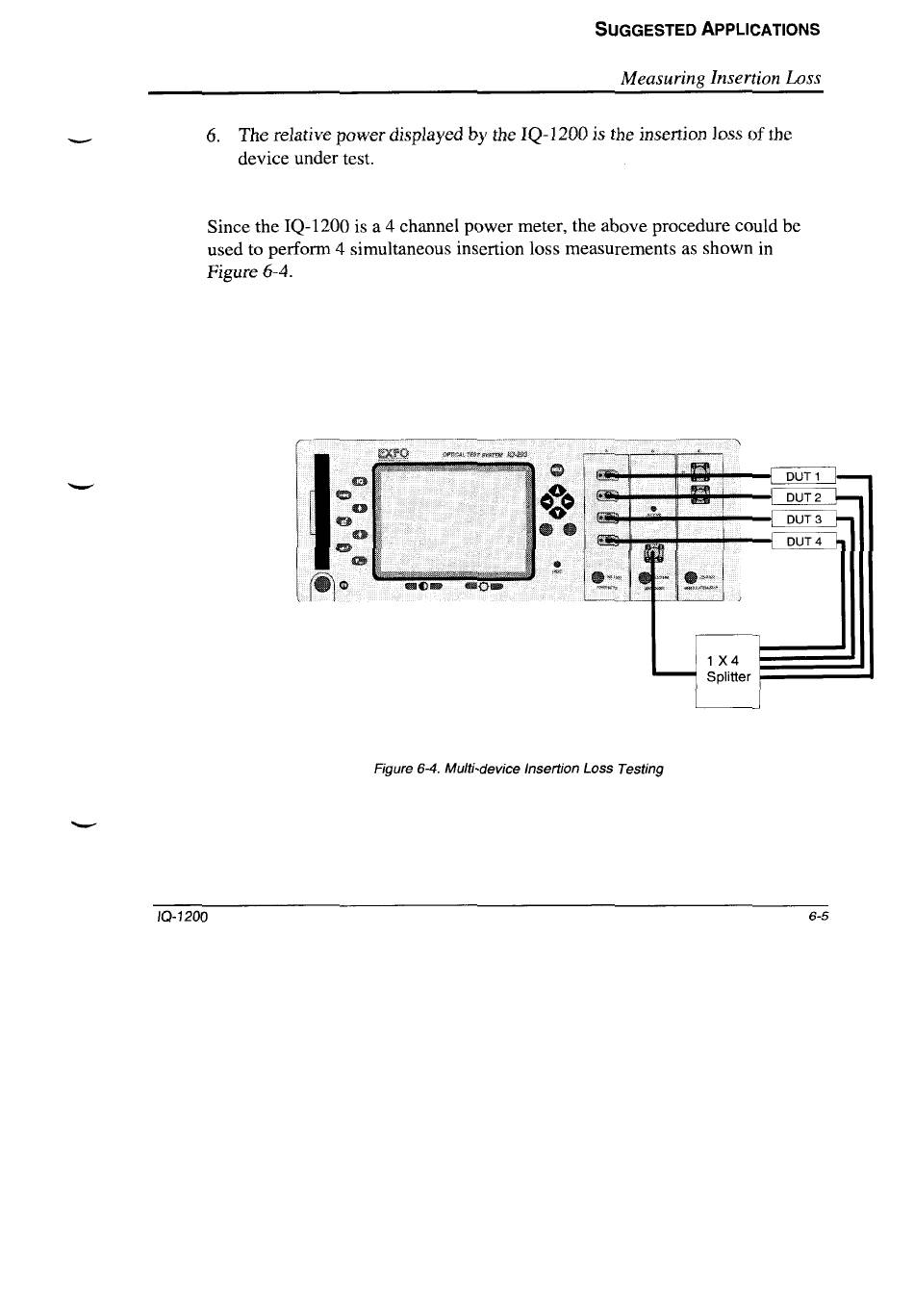

Figure 6-4. Multi-device Insertion Loss Testing
