CDL12P
Constant Directivity Loudspeaker
Owner's Manual
®
www.presonus.com
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDL12P and is the answer not in the manual?

Questions and answers

Related Manuals for PRESONUS CDL12P

Summary of Contents for PRESONUS CDL12P

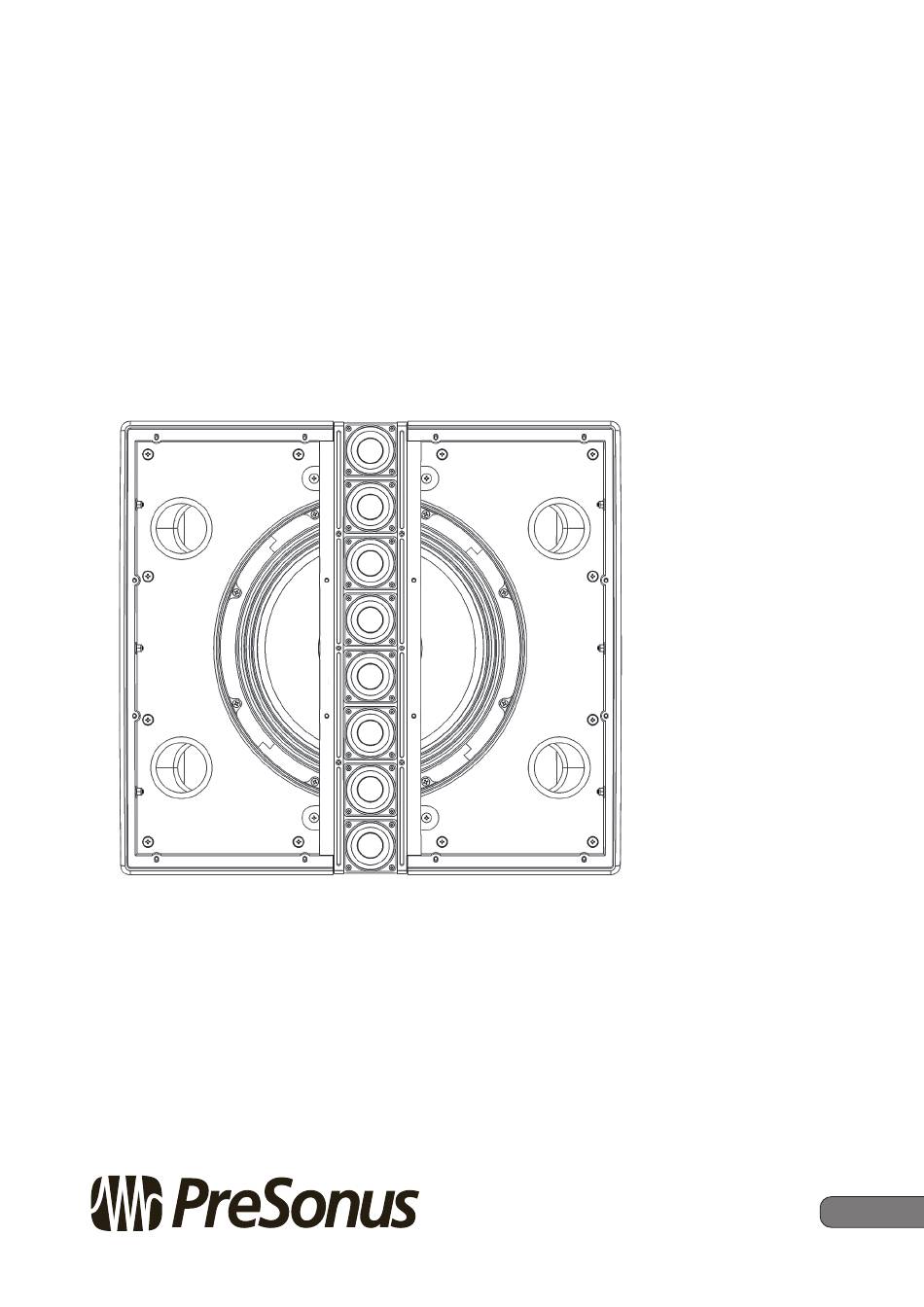

  • Page 1 CDL12P Constant Directivity Loudspeaker Owner’s Manual ® English www.presonus.com...

  • Page 2: Table Of Contents

    Suspending the CDL Array — 7 Supported Configurations — 7 Rigging a CDL12P to Another 2.7.1 CDL12P — 7 Rigging a CDL12P to a CDL12P Rigging 2.7.2 Grid — 7 Using the CDL Rigging Sling with the CDL 2.7.3 Rigging Grid — 8 Pole Mounting Options —...

  • Page 3: Overview

    Loudspeaker (CDL) technology by placing eight 2-inch high-frequency drivers in a 15˚ constant curvature vertical array, centered in front of a 12-inch woofer. This allows the CDL12P to radiate sound in a focused directional pattern with up to 90˚ of vertical coverage when using six boxes rigged together.

  • Page 4: Rigging Accessories (Sold Separately)

    CDL12P Overview What is in the Box Owner’s Manual What is in the Box In addition to this manual, your CDL12P package contains the following: • (1) CDL12P Loudspeaker • (1) AC locking 3 conductor14AWG cord Rigging Accessories (Sold Separately) •...

  • Page 5: Application And Deployment

    Grid. This separately sold rigging grid allows the suspension up to (6) CDL12P loudspeakers. For all supported configurations, see the chart in Section 2.6. Up to two CDL12P loudspeakers maybe be used on a tripod or on a sub pole over the CDL18s. A single CDL12P may be mounted atop a ULT18, or AIR18 subwoofer (See Section 2.7 for restrictions and guidelines).

  • Page 6: Important Safety Instructions

    No one should be allowed to pass beneath the loudspeakers during installation. • Do not suspend any other components or loudspeakers from PreSonus CDL12P loudspeakers other than the supported configurations described in this manual. •...

  • Page 7: Rigging Instructions

    Rigging Instructions CDL12P loudspeakers feature integrated rigging pins. The integrated rigging pins function the same whether you are attaching CDL12P or the CDL12P Rigging Grid. Rotate the pin to the forward 90˚. Press the release button to unlock the pin.

  • Page 8: Cdl Rigging Extension Bar Installation Instructions

    CDL Rigging Extension Bar Installation Instructions Owner’s Manual CDL Rigging Extension Bar Installation Instructions The CDL Rigging Extension Bar is an optional accessory for the CDL12P Rigging Grid that provides upward or downward tilt control for any suspended installation that requires it.

  • Page 9: Suspending The Cdl Array

    PreSonus has tested the configurations below for safety. Please note that the structure from which you are suspending any CDL12P loudspeaker array must be able to support that total weight. DO NOT SUSPEND LOUDSPEAKERS DIRECTLY ABOVE THE AUDIENCE...

  • Page 10: Pole Mounting Options

    (130 lbs / 58.9 kg) or atop a CDL18s. A single CDL12P may be mounted atop a ULT18, or AIR18. When mounting atop a supported PreSonus subwoofer, utilize a sub pole that supports the total weight of the CDL12 loudspeaker(s).

  • Page 11: Pole Mounting Instructions

    The maximum pole height from the top of the CDL18s to the bottom of the CDL12P cannot exceed 33.5”. PreSonus recommends the K&M 21339.000.55 Crank Stand. The (2) CDL12P must be rigged to one another. See Section 2.3.1 for instructions.

  • Page 12: Hookup

    It has no effect on the signal level from the direct output. Push this control to access all the DSP functions in your CDL12P loudspeaker. Power User Tip: A subwoofer can significantly change the frequency response of a full-range system.

  • Page 13: Power

    DSP settings before exiting. Power AC Line Connection. CDL12P loudspeakers have a universal power with a voltage range of 100-120VAC, 50-60Hz. Each loudspeaker is supplied with a locking 3-conductor AC power cord appropriate for the country of sale.
  • Page 14 Line (XLR) Output Direct Line Out (XLR) Mains Connection Locking 3 conductor AC connector In and Out DSP Functions HPF On/Off, No. arrayed boxes, PreSonus subwoofer configuration preset Indicators Signal, -3 dB, Limiter, Clip Enclosure 15 mm Polypropylene Mounting Dual-position pole mount (0˚ and 7.5˚), Integrated Rigging (10:1 load) Dimensions (H x W x D) 18.6”...
  • Page 15 Gulf fish. Also known as Reds or Red Drum, Redfish is not only fun to catch, it’s also delicious! © 2020 PreSonus Audio Electronics, Inc. All Rights Reserved. PreSonus and WorxAudio are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Other product...
  • Page 16 CDL12P Constant Directivity Loudspeakers Owner’s Manual 18011 Grand Bay Ct. • Baton Rouge, ® Louisiana 70809 USA• 1-225-216-7887 Part# 70-32000149-B www.presonus.com...
