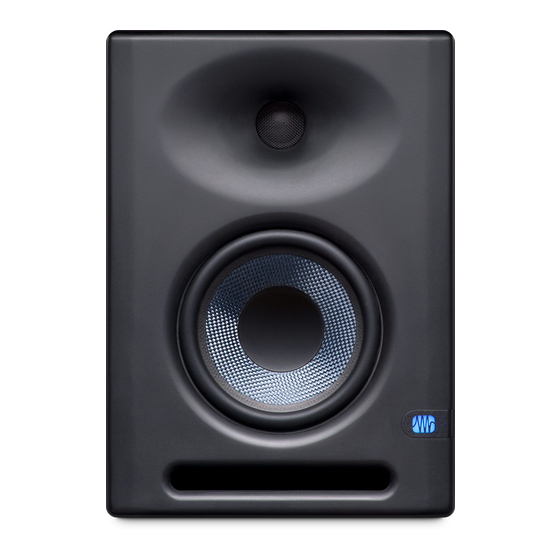

PRESONUS Eris XT Series Owner's Manual

High-definition near field studio monitors
Hide thumbs Also See for Eris XT Series:
Table of Contents

Advertisement

Quick Links

Eris
XT-Series E5 XT / E7 XT / E8 XT
®
High-Definition Near Field Studio Monitors
Owner's Manual 用户手册
®
www.presonus.com
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eris XT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PRESONUS Eris XT Series

Summary of Contents for PRESONUS Eris XT Series

  • Page 1 Eris XT-Series E5 XT / E7 XT / E8 XT ® High-Definition Near Field Studio Monitors Owner’s Manual 用户手册 ® English www.presonus.com...

  • Page 2: Table Of Contents

    Overview 概述 — 1 Introduction 介绍 — 1 Product Registration 产品注册 — 2 What’s in the Box 都有什么 — 2 Companion PreSonus Products PreSonus 产品配备有 — 3 Hookup 连接 — 4 Rear Panel Connections and Controls 后面板连接和控制 — 4 Inputs 输入 — 4 2.1.1...
  • Page 3 Eris XT-series studio monitors ensureyour mix translatesfrom the studio to the stereo. PreSonus Audio Electronics is committed to constant product improvement, and we highly value your suggestions.Webelieve the best waytoachieve our goal of constantproduct improvementis by listening to the real experts; our valued customers.Weappreciatethesupportyouhaveshownus through thepurchase of...

  • Page 4: Product Registration 产品注册

    PreSonus is committed to delivering the best experience for our customers. My PreSonusis aone-stop portal forall ourregisteredcustomers’needs. From your my PreSonus account, you can view all your PreSonus hardware and software registrations;contact support; track orders and more. Toregister your Eris XT studio monitor, go to My.PreSonus.com and follow the onscreen instructions.

  • Page 5: Companion Presonus Products Presonus 产品配备有

    Overview Owner’s Manual Companion PreSonus Products Companion PreSonus Products PreSonus 产品 Thanks for choosing PreSonus! As a solutions company, we believe the best way to takecareofourcustomers(that’syou)istoensurethatyouhavethebestpossible experiencefromthebeginningofyoursignalchaintotheend.Toachievethisgoal, we’veprioritized seamless integrationthroughout every designphase of these products from day one.The resultis systemsthat communicatewith each other asintended–straightoutofthebox–withoutexcessiveconfigurationhassles.

  • Page 6: Hookup 连接

    Eris XT-Series E5 XT / E7 XT / E8 XT Hookup Owner’s Manual Hookup Diagrams Hookup 连接 Rear Panel Connections and Controls 后面板的连接和控制 2.1.1 Inputs 输入 Line-levelInputs.TheErisXTstudiomonitorsprovideachoiceofthreeline- levelinputtypes:balancedXLR,balanced¼”TRS,andunbalancedRCA.Donot connect more than one source to your Eris XT studio monitors simultaneously. Power User Tip: Whenever possible, it is recommended that you utilized the balanced line-level inputs on your Eris XT studio monitors.

  • Page 7: Power 电源

    Eris XT-Series E5 XT / E7 XT / E8 XT Hookup Owner’s Manual Hookup Diagrams 2.1.2 Power 电源 IEC Power Connection. This is the power inlet for your Eris XT studio monitor. IEC电源连接。这是Eris XT工作室监听器的电源入口。 Warning: Do not remove the center grounding prong or use a ground- lift adapter, as this could result in electric shock.

  • Page 8: Acoustic Tuning Controls 声学调音控制

    Power User Tip: If you are using a subwoofer that doesn’t feature a variable low pass filter,like the PreSonusTemblorT10 provides,you will use this controlto set the crossover point for your 2.1 system. For information on configuring a 2.1 system in the studio, please visit www.PreSonus.com/Learn/Technical-Articles.

  • Page 9: Hookup Diagrams 连接图

    监听器的频率响应进行微妙的改变。一般来说，你不会想改变这个控制，因为它将改变你的Eris XT显示器的平坦频率响应。 然而，如果你想快速模仿消费类扬声器的性能，降低这个控制将模仿中频勺，这是消费类设计的标志。 低截止。以-12dB/倍频程的斜率滚去低于指定频率（80或100Hz）的所有频率的电平。把这个控制设置为平坦，可以让Eris XT的国家滚降功能接管。 电源用户提示： 如果你使用的是没有可变低通滤波器的低音炮，比如PreSonus Temblor T10提供的低通滤波器，你将使用这 个控制来设置2.1系统的分频点。有关在工作室配置2.1系统的信息，请访问ww.PreSonus.com/Learn/Technical-Articles。 AcousticSpace.Cutsthe level of all frequencies below800 Hz by either -4 dB or -2 dB to compensate for the bass boost that naturally occurs when a speaker is placed nearawalloracorner.IfyourEris XTmonitorscanbeplaced awayfromthewallsin your mix space, leave this control set to 0 dB.

  • Page 10: Basic Setup 基本设置

    Eris XT-Series E5 XT / E7 XT / E8 XT Hookup Owner’s Manual Hookup Diagrams 2.2.1 Basic Setup 基本设置 Audio Interface (Studio 1824c) Eris E8 XT...
  • Page 11 Eris XT-Series E5 XT / E7 XT / E8 XT Hookup Owner’s Manual Hookup Diagrams 2.2.2 Advanced Setup with Monitor Controller and Speaker Switching 使用显示器控制器和扬 声器切换的高级设置 Audio Interface (Studio 68c) Powe Monitor Controller (Central Station Plus) POWER 12-18VDC 10Watts Sceptre S6 Eris E5 XT...

  • Page 12: Application Guide应用指南

    Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Monitor Placement and Acoustic Space Settings Application Guide 应用指南 Monitor Placement and Acoustic Space Settings 监视器的放置和声学空间的设置 Speakers 8” to 12” from wall Beforeplacingyourstudiomonitorsinyourmixingenvironment,positionyour desk or monitor stands so that your speakers will be at least 8 to 12 inches awayfrom walls and corners.This will be adequateto preventsound waves from hitting the wall and reflecting back to you,causing phase cancellation and other potentiallyharmful acoustic interactions.This might not always be...
  • Page 13 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Monitor Placement and Acoustic Space Settings To compensate for this phenomenon, every PreSonus studio monitor is equipped with anAcousticSpacecontrolthat cuts all frequencies below 800 Hz by a specified amount: •...
  • Page 14 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Monitor Placement and Acoustic Space Settings If possible, your mix position should be placed on the center of a wall as this will provide a more balanced listening position. Place your speakers so that they are the same distance from the sides of the room.
  • Page 15 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Monitor Placement and Acoustic Space Settings 就像把混音位置设置在角落里不是一个好主意一样，用混音位置制造一个 角落也不是一个好主意。确保扬声器到后面墙壁的距离与离它最近的侧墙 的距离不同。例如，如果你的左边扬声器离它左边的墙有一英尺，那么它 离它后面的墙也不应该有一英尺。 Eris XT的集中式EBM波导设计确保了更广泛的水平覆盖和更紧密的垂直扩 散。 覆盖范围，同时具有紧密的垂直扩散，有助于限制来自桌面或控制台的早 期反射。与其他可以水平或垂直放置的Eris显示器不同，这种设计要求Eris XT显示器始终以其垂直方向放置。 60˚ 60˚ Whenever people talk about listening to speaker systems, they talk about the “sweet spot.”...

  • Page 16: Calibrating Using 85Db Spl "Standard

    Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Calibrating Using 85 dB SPL “Standard” Reference Creating the sweet spot is relatively easy. Simply angle, or“toe-in,”each speaker so that the tweeters form an equilateral triangle with your head—that is, the speakers are the same distance from each other as they arefrom you.Themonitors should be angled, or“toed in,”so that they areeach directed to an ear,rather than pointedstraight ahead.
  • Page 17 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Calibrating Using 85 dB SPL “Standard” Reference The main purpose of speaker calibration is to ensure that a specific metered audio level in your DAW or on your mixer equals a predetermined SPL in your studio environment.
  • Page 18 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Calibrating Using 85 dB SPL “Standard” Reference You should calibrate the right and left monitors independently to ensure that both monitors are set to the same acoustic level. This will ensure that your stereo mixes are balanced and will translate well across different speaker systems.
  • Page 19 Eris XT-Series E5 XT / E7 XT / E8 XT Application Guide Owner’s Manual Calibrating Using 85 dB SPL “Standard” Reference 9. Stopthe pink noiseandturn yourleftspeaker backon.Playsomeprogram musicyouarefamiliar with through your speakersand sitdown in your mix position.Youmayneedtofine-tuneyourspeakerplacementuntilthesound is balanced and you have a nice, wide sweet spot from which to mix. Note: If 85 dB is too loud for your room, either becauseof noise constraintsor because the room is too small, you can redo the above calibration steps and dial in each speaker to 79 dB instead.

  • Page 20: Resources 相关资源

    Eris XT-Series E5 XT / E7 XT / E8 XT Resources Owner’s Manual Technical Specifications Resources 相关资 源 Technical Specifications 1- Balanced ¼”TRS 技术参数 Inputs 1- Balanced XLR 1- Unbalanced RCA E5XT E7XT E8XT Performance 性能 48Hzto20kHz 42 Hz to 22 kHz 35 Hz to 20 kHz Frequency Response 频率响应...

  • Page 21: Troubleshooting 故障排除

    E5XT uses a T1L fuse. The Eris E7XT and E8XT use a T2L fuse. If the fuse blows again, you will need to contact PreSonus for a repair. No audio. If your Eris XT studio monitor appears to power on but you hear no sound when playing audio from your audio source (the lights are on but nobody’s home), first make sure that the cable connecting...
  • Page 22 Dinner is Served Addedbonus:PreSonus’previouslyTopSecretrecipefor… Red Beans and Rice 额外的奖励：PreSonus以 前的绝密配方为... 红豆和大米 Ingredients: • 1 lb dried Red Kidney Beans • 1 large onion (diced) • 3 celery stalks (diced) • 1 large green bell pepper (diced) • 6-8 C vegetable stock •...
  • Page 23 10.在米饭上加辣酱和烤安杜尔香肠（可选）。 ©2021 PreSonus Audio Electronics, Inc. All Rights Reserved. AudioBox USB, Capture, CoActual, EarMix, Eris, FaderPort, FireStudio, MixVerb, Notion, PreSonus, PreSonus AudioBox, QMix, RedLightDist, SampleOne, Sceptre, StudioLive, Temblor, Tricomp, WorxAudio, and the Wave Logo are registered trademarks of PreSonus Audio Electronics, Inc. Studio One is a registered trademark of PreSonus Software Ltd.
  • Page 24 Eris XT-Series E5 XT / E7 XT / E8 XT ® High-Definition Near Field Studio Monitors Owner’s Manual 用户手册 Baton Rouge • USA www.presonus.com Part# 70-52000134-B...
