Summary of Contents for PRESONUS Eris E5 BT
- Page 1 Eris E5 BT High-Definition Media Reference Monitor Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Overview 1.1 Introduction 1.2 Product Registration 1.3 What’s in the Box Connections and Controls 2.1 Rear Panel 2.1.1 Inputs 2.1.2 Power 2.1.3 Acoustic Tuning Controls 2.1.4 Speaker Connections 2.2 Active Speaker Front Panel Hookup Diagrams 3.1 Basic Setup 3.2 Audio Connections 3.3 Bluetooth Pairing... -
Page 3: Overview
PreSonus is committed to delivering the best experience for our customers. MyPreSonus is a one-stop portal for all our registered customers’ needs. From your my PreSonus account, you can view all your PreSonus hardware and software registrations; contact support; track orders and more. -
Page 4: What's In The Box
What’s in the Box Your Eris E5 BT package contains the following: (1 pair) PreSonus Eris E5 BT Media Reference Monitors (1 active, 1 passive) (1) 1.5M 1/8” TRS to 2x RCA cable (1) 1.5M 1/8” TRS stereo cable (1) 2M bare-wire speaker cable (1) Quick Start Guide 1.3 What’s in the Box... - Page 5 (1) IEC Power Cable (8) Rubber Feet 1.3 What’s in the Box...
-
Page 6: Connections And Controls

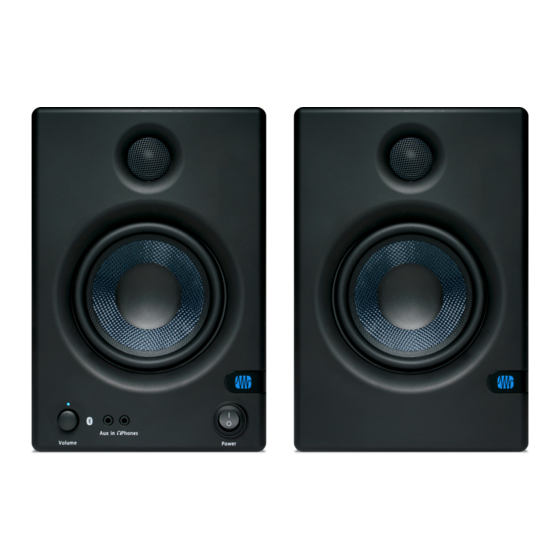

Connections and Controls Your Eris E5 BT consists of one active speaker and one passive speaker. Nearly every connection is loc- ated exclusively on the active speaker. This speaker provides signal and power for the passive speaker. The exceptions are the bare-wire connectors, which send power and signal from the active speaker to the passive speaker. -
Page 7: Power
2.1.2 Power IEC Power Connection. The active speaker accepts a standard IEC C7 power cord. The power switch is located on the front panel of the active speaker. 2.1.3 Acoustic Tuning Controls High. Boosts or cuts all frequencies above 10 kHz by ±6 dB. Power User Tip: The High control is a high-shelf EQ and attenuates or boosts frequencies above 10 kHz. -
Page 8: Speaker Connections
2.1.4 Speaker Connections Bare-wire connectors. This connection is used to send power and signal to the passive speaker. Be sure to connect the positive and negative connections on your active speaker to the positive and neg- ative connections, respectively, on the passive speaker (i.e. connect positive to positive and negative to negative). - Page 9 Power / Bluetooth Status LED. The LED above the volume control indicates power status. This LED also displays the Bluetooth status as follows: Solid Blue. Eris speaker is powered on. Flashing Blue. Eris speaker is in pairing mode. Solid White. Eris speaker is paired to a Bluetooth device. Volume.
- Page 10 Note that connecting headphones will mute the speakers. 2.2 Active Speaker Front Panel...
-
Page 11: Hookup Diagrams
Hookup Diagrams Basic Setup Hookup Diagrams... -
Page 12: Audio Connections
Audio Connections 3.2 Audio Connections... -
Page 13: Bluetooth Pairing
Bluetooth Pairing Your Eris E5 BT can be paired with any Bluetooth device for audio playback. To pair your speakers, first press and hold the pair button on the rear of the active Eris speaker for three seconds. The Power/Bluetooth LED on the front of the active speaker will flash, indicating pairing is active. - Page 14 On your Bluetooth device, select "E5 BT”. Once your Eris speakers are paired, the Power/Bluetooth LED will illuminate white. Power User Tip: You can pair an additional device by repeating these steps. Your Eris speakers can store two Bluetooth device pairings, although audio can only be streamed from one Bluetooth device at a time. Whenever you power on your Eris speakers, your stored Bluetooth devices will automatically pair if within range.
-
Page 15: Resources
Resources Technical Specifications Eris E5 BT Inputs 1- Stereo 1/8” TRS 2- Balanced¼” TRS 2- Unbalanced RCA Stereo Bluetooth 5.0 Outputs 1-stereo 1/8" TRS 1-summed mono 1/4" TRS Sub Out Performance Frequency 53Hz - 22kHz Response Crossover 6.7 kHz Frequency Amplifier Power... - Page 16 Protection RF interference Output-current limiting Over-temperature Turn-on/off transient Subsonic filter External mains fuse Power 100-120 V ~50/60 Hz or 220-240 V ~50/60 Hz Cabinet Vinyl-laminated, medium-density fiberboard Physical Width 7" (177.8 mm) Depth 7.5" (190.5 mm) Height 10.25" (260.35 mm) Weight (per pair) 15.4 lb (6.98 kg) 4.1 Technical Specifications...
-
Page 17: Troubleshooting
Troubleshooting No power. First ensure that your active Eris speaker is plugged in. If it’s connected to a power con- ditioner, verify that the power conditioner is turned on and functioning. No audio. If your active Eris speaker appears to power on but you hear no sound when playing audio from your audio source (the lights are on but nobody’s home), first make sure that the cable connecting your audio source to the active speaker is working correctly. -
Page 18: Dinner Is Served
Dinner is Served! Added bonus: PreSonus’ previously Top Secret recipe for… Chicken and Andouille Gumbo Ingredients: 1 C All-Purpose flour ¾ C Vegetable Oil 1 large onion (diced) 1 small onion (quartered) 6 celery stalks (diced) 1 large green bell pepper (diced) - Page 19 Cook until vegetables are very tender. Do not cover. Slowly add 1 quart of chicken broth and bring to a low boil, stirring constantly. Transfer roux mixture to a soup pot and bring to low boil. Do not cover, the roux will settle on the bot- tom of the pot and burn.
-
Page 20: Legal
EarMix, Eris, FaderPort, FireStudio, MixVerb, Notion, PreSonus, PreSonus AudioBox, QMix, RedLightDist, SampleOne, Sceptre, StudioLive, Temblor, Tricomp, WorxAudio, and the Wave Logo are registered trademarks of PreSonus Audio Electronics, Inc. Revelator is a trademark of PreSonus Audio Electronics, Inc. Studio One is a registered trademark of PreSonus Software Ltd. - Page 21 Eris E5 BT High-Definition Media Reference Monitor Owner’s Manual Part number: 70-52000180...
