Quick Start Guide

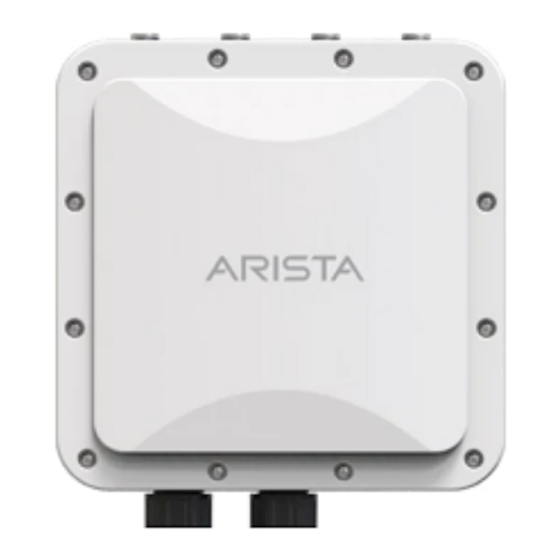

O-105 Access Point
Arista Networks
www.arista.com
DOC-03489-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arista O-105

Summary of Contents for Arista O-105

  • Page 1 Quick Start Guide O-105 Access Point Arista Networks www.arista.com DOC-03489-02...
  • Page 2 © Copyright 2020 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.

  • Page 3: Table Of Contents

    Install the Access Point....................10 Pole Mount the O-105..........................10 Wall Mount the O-105..........................12 Power On the O-105...........................15 Connect the O-105 to the Network......................15 Connect the O-105 using PoE........................15 Access Point Troubleshooting..................16 Appendix A: AP-Server Mutual Authentication ............17 Quick Start Guide: Access Point...

  • Page 4: About This Guide

    Installation constitutes your acceptance of the terms and conditions of the EULA. Intended Audience This guide can be referred to by anyone who wants to install and configure the O-105 outdoor access point. Document Overview This guide contains the following chapters: •...

  • Page 5: Package Content

    Package Content The access point (AP) package must contain the components shown in the following figure. Figure 1: Package Components Quick Start Guide: Access Point...
  • Page 6 Important: The MAC address of the device is printed on a label at the bottom of the product and the packaging box. Note down the MAC address, before mounting the device. If the package is not complete, please contact Arista Networks Technical Support Team at support-wifi@arista.com...

  • Page 7: Access Point Overview

    • Side Panel of O-105 on page 6 • Bottom Panel of O-105 on page 8 Side Panel of O-105 The side panel of the O-105 has LEDs that indicate the working of the device. Quick Start Guide: Access Point...
  • Page 8 Figure 2: O-105 Side Panel Table 2: Labels: Side Panel LEDs Label Description Power 2.4 GHz Radio 5 GHz Radio LAN2 LAN1 (PoE) Power LED: The following table describes the Power LED states.

  • Page 9: Bottom Panel Of O-105

    Bottom Panel of O-105 The bottom panel of the O-105 has LAN/PoE connectors that enable you to connect the device to a wired LAN through a switch or a hub. The ports provide power for the device by using the 802.3at standard.
  • Page 10 LAN1 1 Gigabit Ethernet with 802.3at RJ-45 10/100/1000 Mbps Ethernet compliant PoE LAN2 1 Gigabit Ethernet with 802.3at RJ-45 10/100/1000 Mbps Ethernet compliant PoE Reset Enables you to reset the O-105...

  • Page 11: Install The Access Point

    15 Pole Mount the O-105 Use the pole-mount bracket and pole strap to install the O-105 device on a pole. Standard accessories include two metal clamps.: Use the mounting base to install the O-105 device on the wall. To mount the device: 1.
  • Page 12 2. Attach the pole-mount bracket to the mounting base. You can position the pole-mount bracket for use on a vertical or horizontal pole. Insert the pole strap in to the pole-mount bracket. 3. Mount the device securely to the pole by using the pole strap and a Philips #2 screwdriver.

  • Page 13: Wall Mount The O-105

    Description Philips #2 screwdriver. Wall Mount the O-105 Mounting the access point (AP) on the wall consists of the following steps: 1. Affix the expansion bolts on the wall such that the holes on the mounting base can be perfectly placed over them.
  • Page 14 Table 7: Labels: Dimensions Label Description Horizontal distance between holes: 50mm Vertical distance between holes: 84mm Diameter of the hole: 6.5mm, depth 30mm 2. Attach the mounting base to the bottom cover of the O-105 device.
  • Page 15 Table 8: Labels: Parts Label Description Philips #2 screwdriver. Length >= 100mm 3. Mount the device on the expansion bolts. Quick Start Guide: Access Point...

  • Page 16: Power On The O-105

    5. Log on to the server using ssh and run the get sensor list command. You will see a list of all Arista devices that are recognized by the server. Single Sign-On users can go to the Monitor tab in CloudVision WiFi and check whether the device is visible under the Monitor tab.

  • Page 17: Access Point Troubleshooting

    'Authentication failed ' event is raised on the server. Refer to the event for recommended action. The AP has encountered a problem. • If you are using Arista Cloud Services, then open the TCP port 443 (SSL). If you have an on-premises installation, then open UDP port 3851 and port 80.

  • Page 18: Appendix A: Ap-Server Mutual Authentication

    Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds. After the authentication succeeds, a session key is generated. From this point on, all communication between the AP and server is encrypted using the session key.
