  • Page 1 Quick Start Guide O-105E Access Point Arista Networks www.arista.com DOC-03652-03...
  • Page 2 © Copyright 2021 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service names may be trademarks or service marks of others.
  • Page 3: Table Of Contents

    4 Install the Access Point..............6 4.1 Pole Mount the O-105E......................6 4.2 Wall Mount the O-105E......................9 4.3 Power On the O-105E......................12 4.4 Connect the O-105E to the Network..................12 4.5 Connect the O-105E using PoE...................13 4.6 Connect External Antennas to O-105E................13 5 Access Point Troubleshooting............14 6 Appendix A: AP-Server Mutual Authentication.......15...
  • Page 4: About This Guide

    EULA from https://www.arista.com/en/support/product-documentation. Installation constitutes your acceptance of the terms and conditions of the EULA. Intended Audience This guide can be referred to by anyone who wants to install and configure the O-105E outdoor access point. Document Overview This guide contains the following chapters: •...
  • Page 5 Figure 1: Package Components Table 1: Labels: Package Components Label Description O-105E Access Point Mounting Bracket 4 screws for fixing bracket on the wall...

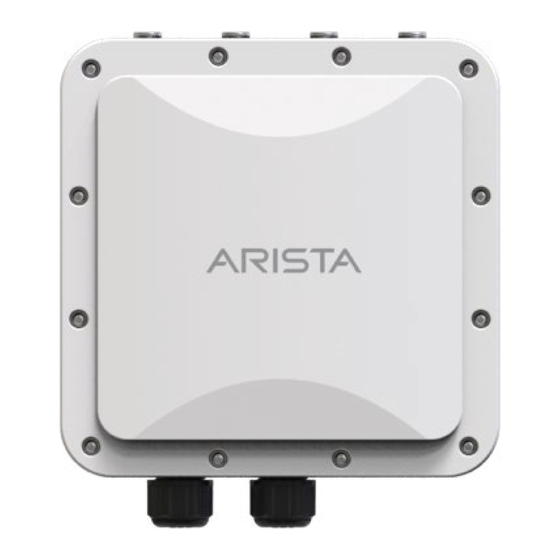

  • Page 6: Access Point Overview

    The O-105E is a dual radio 802.11ac wave 2 access point. This chapter provides an overview of the O-105E and describes: • Side Panel of O-105E • Bottom Panel of O-105E Side Panel of O-105E The side panel of the O-105E has LEDs that indicate the working of the device.
  • Page 7 Figure 2: O-105E Side Panel Table 2: Labels: Side Panel LEDs Label Description Power 2.4 GHz Radio 5 GHz Radio LAN2 LAN1 (PoE) Power LED: The following table describes the Power LED states. Table 3: Power LED States Description Green...
  • Page 8: Bottom Panel Of O-105E

    Bottom Panel of O-105E The bottom panel of the O-105E has LAN or PoE connectors that enable you to connect the device to a wired LAN through a switch or a hub. The ports provide power for the device by using the 802.3at standard.
  • Page 9: Install The Access Point

    Connect the O-105E to the Network Pole Mount the O-105E Use the pole-mount bracket and pole strap to install the O-105E device on a pole. Standard accessories include two metal clamps.: Use the mounting base to install the O-105E device on the wall. To mount the device:...
  • Page 10 4 Install the Access Point 2. Attach the pole-mount bracket to the mounting base. You can position the pole-mount bracket for use on a vertical or horizontal pole. Insert the pole strap in to the pole-mount bracket.
  • Page 11 3. Mount the device securely to the pole by using the pole strap and a Philips #2 screwdriver.
  • Page 12: Wall Mount The O-105E

    Description Philips #2 screwdriver. Wall Mount the O-105E Mounting the access point (AP) on the wall consists of the following steps: 1. Affix the expansion bolts on the wall such that the holes on the mounting base can be perfectly...
  • Page 14 Description Horizontal distance between holes: 50mm Vertical distance between holes: 84mm Diameter of the hole: 6.5mm, depth 30mm 2. Attach the mounting base to the bottom cover of the O-105E device. Table 8: Labels: Parts Label Description Philips #2 screwdriver. Length >= 100mm...
  • Page 15: Power On The O-105E

    Power On the O-105E An O-105E device can be powered on by plugging one end of the Ethernet cable into the 802.3at Power Over Ethernet+ (PoE+) switch or injector and the other end into the PoE port on O-105E of nominal input voltage 48V DC.
  • Page 16: Connect The O-105E Using Poe

    4 Install the Access Point Connect the O-105E using PoE If you are using a PoE injector, make sure the data connection is plugged into a suitable switch port with proper network connectivity. Table 9: Labels: Parts Label Description Width of the LAN cap is 29mm...
  • Page 17: Access Point Troubleshooting

    URL Content Filter between the AP and the Internet, ensure that the settings allow communication between the AP and Arista Cloud Services. • If your configuration requires you to specify an exact IP address or IP range for Arista Cloud Services, please contact support- wifi@arista.com.
  • Page 18: Appendix A: Ap-Server Mutual Authentication

    6 Appendix A: AP-Server Mutual Authentication 6 Appendix A: AP-Server Mutual Authentication The AP-server communication begins with a mutual authentication step in which the AP and server authenticate each other using a shared secret. The AP-server communication takes place only if this authentication succeeds.
