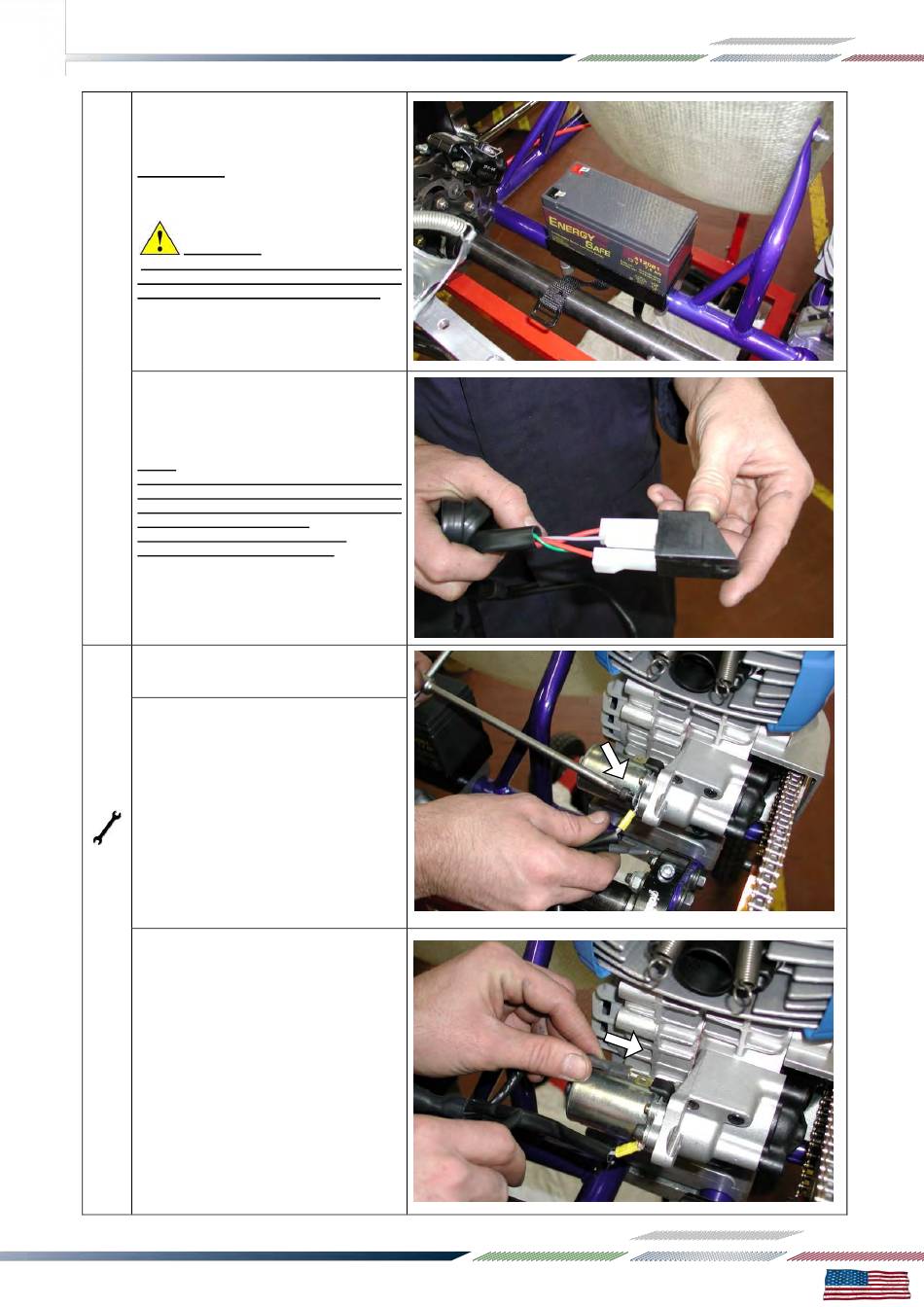

Electrical Connections On The Engine - IAME MINI SWIFT 60CC - USA Installation Manual

3.7.4 POSITION THE BATTERY ON THE
SUPPORT (SEE FIG.21).
SUGGESTION:
NEVER CONNECT THE BATTERY UNTIL
YOU ARE READY TO START THE ENGINE.
:
ATTENTION
PAY ATTENTION NOT TO SHORT CIRCUIT
THE BATTERY TERMINALS AS BATTERY
COULD BE DAMAGED BEYOND REPAIR.
3.7.5 CONNECT THE STARTER RELAY TO
THE CABLE TERMINALS (SEE FIG.22).
NOTE:
THE 2 CABLES PROVIDED WITH 10mm
TERMINALS CAN BE INVERTED ON THE
STARTER RELAY, WITHOUT CAUSING ANY
MALFUNCTION PROBLEMS.
ALSO THE 2 CABLES WITH 6.3mm
TERMINALS CAN BE INVERTED .
3.8 ELECTRICAL CONNECTIONS ON
THE ENGINE (
REFER TO THE
ATTACHED ELECTRICAL SCHEMATIC)
UNSCREW THE M6
STARTER AND CONNECT THE GROUND
CABLE TO THE ENGINE.
(SEE FIG.23).
TORQUE SCREW AT 8÷10 Nm
(70 ÷ 90 in-lb)
(5 mm ALLEN WRENCH)
3.8.1 CONNECT THE TERMINAL (8mm) OF
THE HARNESS TO THE STARTER (SEE
FIG.24).
Fig.21
Fig.22
Fig.23
SCREW ON THE
Fig.24
