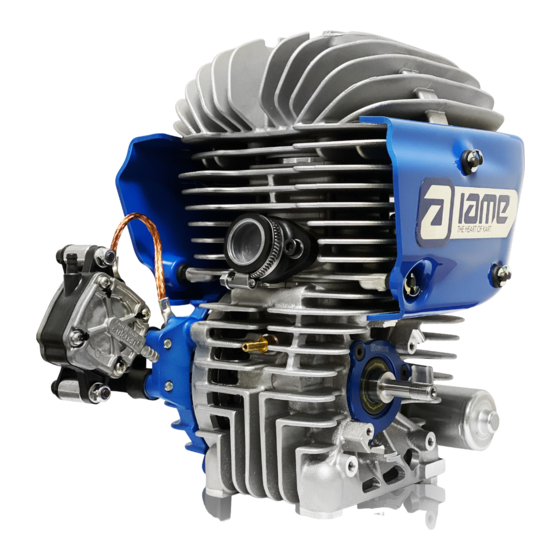

IAME GR-3 040/EM/12 User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
GR-3 - 040/EM/12 - 60cc
USER MANUAL
MAN – 095-20 - EN
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR-3 040/EM/12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IAME GR-3 040/EM/12

Summary of Contents for IAME GR-3 040/EM/12

  • Page 1 GR-3 - 040/EM/12 - 60cc USER MANUAL MAN – 095-20 - EN...
  • Page 2 FEEDING Fuel mixture 98 RON and 4% motor oil (CIK homologated). We recommend: - WLADOIL K 2T ; - ELF HTX 909 ; - ELF HTX 976 ; - EXCED RSK M. PREPARING THE MOTOR MOUNT To fix the engine onto the chassis it is necessary to make holes on the motor mount with the following dimensions:...

  • Page 3: Electric System

    ELECTRIC SYSTEM The engine is provided with homologated digital ignition. The advance has to be set to 2.60mm before TDC, corresponding to 26°~. The spark point is where the markings on both rotor and stator match. Please take particular care to the ground connection between the coil’s steel body and the appropriate screw on the clutch cover.
  • Page 4 MAIN ENGINE COMPONENTS’ MAINTENANCE INTERVALS The components’ lifetime can change according to the engine use PISTON / CYLINDER MATCHING The piston has to be replaced when the measured clearance exceed 0.11mm. As a general prescription, we recommend to replace it after an approximate consumption of 60 litres.

  • Page 5: Main Bearings

    MAIN BEARINGS With the roller bearings, the lifetime is a full sporting season. CONROD BIG END CAGE, CRANKPIN and WASHERS The replacement must be performed after an approximate consumption of 120lt of fuel. CONROD SMALL END CAGE The replacement must be performed after an approximate consumption of 120lt of fuel.
  • Page 6 CARBURETTOR SETTING The carburettor is supplied with a standard setup. Please find the standard setup reported below. The carburettor setup has to be adjusted in function of track and weather conditions, acting on the setup parts available. DELLORTO PHBG 18 BASIC SETUP CONICAL NEEDLE W23 - 2ª...
  • Page 7 TECHNICAL DATA SUMMARY TABLE DESCRIPTION DATA 4% OF OIL FUEL MIXTURE / FUEL FUEL 98 RON Oil CIK homologated Exhaust 156° (0°/-2°) Transfers 114° (0°/-2) LIMIT PORT TIMING Inlet 144° (0°/-2) Feeler gauge 0.2x5mm 2.60 mm TIMING ADVANCE Before TDC 7 cm³...
