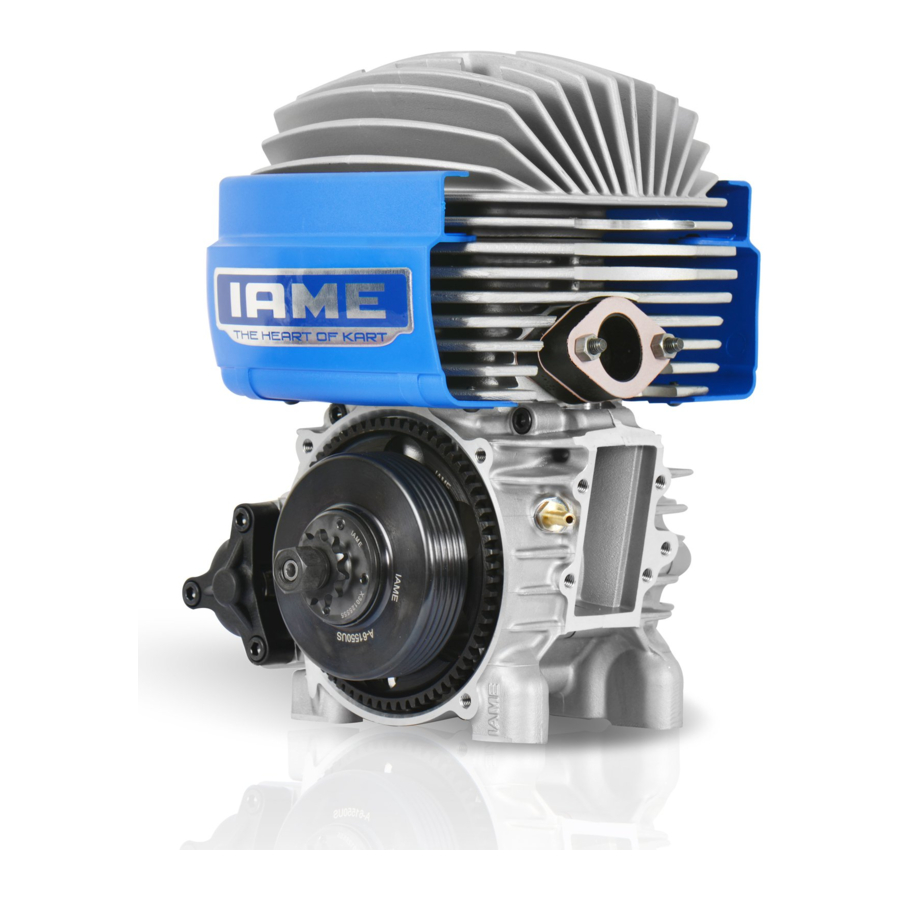

Summary of Contents for IAME NORSWIFT 60cc

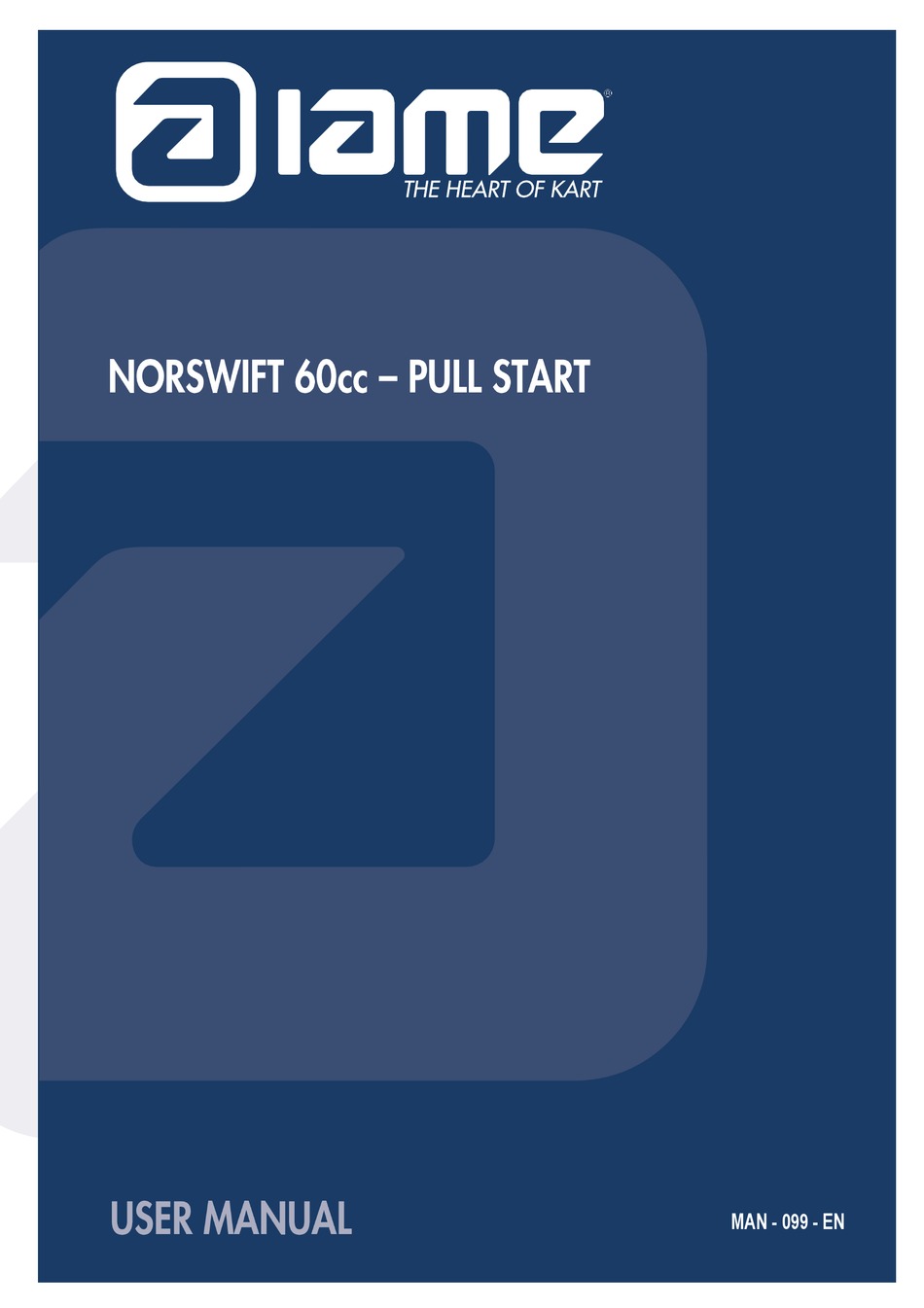

  • Page 1   MAN - 099 - EN...
  • Page 2 FEEDING Fuel mixture 98 RON and 3% oil (33:1). Our experience dictates use of oils, such as: - WLADOIL K 2T; - ELF HTX 909; - ELF HTX 976; - LEXOIL 996. ENGINE MOUNT PREPARATION In case you are not provided with an engine mount previously prepared with holes at the distances as prescribed in the figure, drill 4 holes Ø8.25÷8.5mm (Ø13.5÷14mm counterbore) in the engine mount as described in the drawing.
  • Page 3 ELECTRICAL PLANT The engine is equipped with an analogical ignition with fixed advance, normally set to 1.1mm (min0.8 max1.4mm) before TDC. 1. SWITCH ON / OFF 2. COIL CABLE 3. COIL 4. IGNITION WARNING ON THE EXHAUST PLANT Check that the muffler mounting springs are well hooked. In case of breaking, replace the broken spring.
  • Page 4 CADETTI CLASS TILLOTSON HW-47A CARBURETTOR SETTING ( I ) IDLE SPEED SCREW ( L ) LOW SPEED FUEL MIXTURE ( H ) HIGH SPEED FUEL MIXTURE The recommended base setup of the carburetor screws, after running-in, is as follows: ▪ L (from totally closed position, open): 1 turn+15’ – 1turn + 30’ ▪...
  • Page 5 MINI CLASS TILLOTSON HW-34B CARBURETTOR SETTING ( I ) IDLE SPEED SCREW ( L ) LOW SPEED FUEL MIXTURE ( H ) HIGH SPEED FUEL MIXTURE The recommended base setup of the carburetor screws, after running-in, is as follows: ▪ L (from totally closed position, open): 1 turn+30’ – 1turn+40’ ▪...
  • Page 6 CORRECT INSTALLATION OF THE IGNITION COIL ONTO THE CRANKCASE (BOTH CLASSES) In the case the ignition coil has been removed from the engine, the correct installation must be performed in order to guarantee the proper ignition functioning. Take a 0.3mm wedge, gently shape it as an arc to approx. copy the diameter of the flywheel.
  • Page 7 Intervals may vary according to the use the engine, ex: professional (top performance required) or hobby (top durability). IAME recommends replacing the piston every 100 liters of use, or earlier, if the cylinder/piston tolerance exceeds 0.11mm. If the marking on the piston crown indicates:...
  • Page 8 CON ROD SMALL END ROLLER CAGE Replacement is recommended after about 100 liters of use. CRANKSHAFT, CON ROD BIG END CAGE, CRANK PIN, WASHERS Replacement is recommended after 200 liters of use. MAIN ROLLER BEARINGS Replacement is recommended after 200 liters of use. CON ROD Replacement is recommended after 400 liters of use The con rod must be replaced when the roundness of the big end hole exceeds...
  • Page 9 TECHNICAL DATA ENGINE SUMMARY TABLE DESCRIPTION DATA NOTES 98 RON FUEL MIXTURE / FUEL Min 3% OF OIL Oil CIK homologated See fiche for how 1.1mm (0.8÷1.4)mm from TIMING ADVANCE to read Installed in the CORRECT MEASURE TIPS PISTON RING 0.10 ÷...
