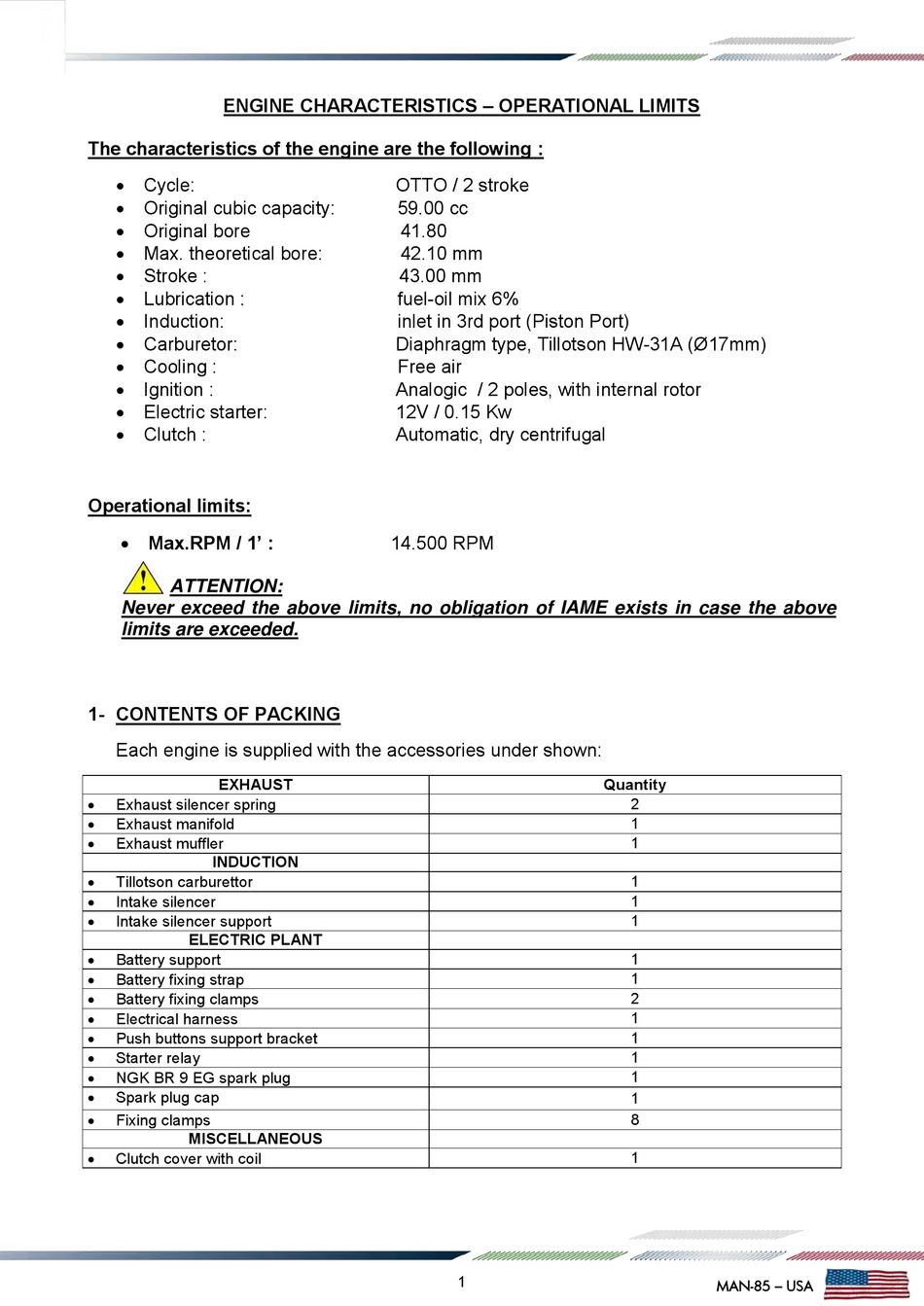

ENGINE CHARACTERISTICS – OPERATIONAL LIMITS
The characteristics of the engine are the following :
 Cycle:
 Original cubic capacity:
 Original bore
 Max. theoretical bore:
 Stroke :
 Lubrication :
 Induction:
 Carburetor:
 Cooling :
 Ignition :
 Electric starter:
 Clutch :
Operational limits:
 Max.RPM / 1' :
ATTENTION:
Never exceed the above limits, no obligation of IAME exists in case the above
limits are exceeded.

1- CONTENTS OF PACKING

Each engine is supplied with the accessories under shown:
EXHAUST
Exhaust silencer spring

Exhaust manifold

Exhaust muffler

INDUCTION
Tillotson carburettor

Intake silencer

Intake silencer support

ELECTRIC PLANT
 Battery support
Battery fixing strap

Battery fixing clamps

 Electrical harness
 Push buttons support bracket
 Starter relay
NGK BR 9 EG spark plug

Spark plug cap

 Fixing clamps
MISCELLANEOUS
Clutch cover with coil

OTTO / 2 stroke
59.00 cc
41.80
42.10 mm
43.00 mm
fuel-oil mix 6%
inlet in 3rd port (Piston Port)
Diaphragm type, Tillotson HW-31A (Ø17mm)
Free air
Analogic / 2 poles, with internal rotor
12V / 0.15 Kw
Automatic, dry centrifugal
14.500 RPM
1
Quantity
2
1
1
1
1
1
1
1
2
1
1
1
1
1
8
1
