SETTINGS ON THE BATTERY CHARGER

To communicate correctly with the GMDSS interface, the
continuous monitoring mode should be enabled on the
Mass series battery charger:
To do so, DIP-switches 1 + 2 of the Mass battery charger
must be adjusted to the ON position
Please note that when the Continuous monitoring mode is
enabled, the micro processor in the battery charger will
stay active and drain a very small current of ±25mA when
the charger has no AC supply
If the continuous monitoring mode is not
enabled, the GMDSS Interface may show
incorrect alarms!
Refer to the user's manual of the Mass battery
charger for details about adjustment of the
DIP switches. Adjust the DIP-switches prior to
commissioning of the battery charger!
CAUTION!
Invalid settings of the Mass Charger can
cause serious damage to your batteries
and/or the connected load! Adjustments of
settings may be undertaken by authorised
personnel only.
EN / GMDSS Mass Charger Alarm Interface / January 2013 / Copyright © 2013 Mastervolt

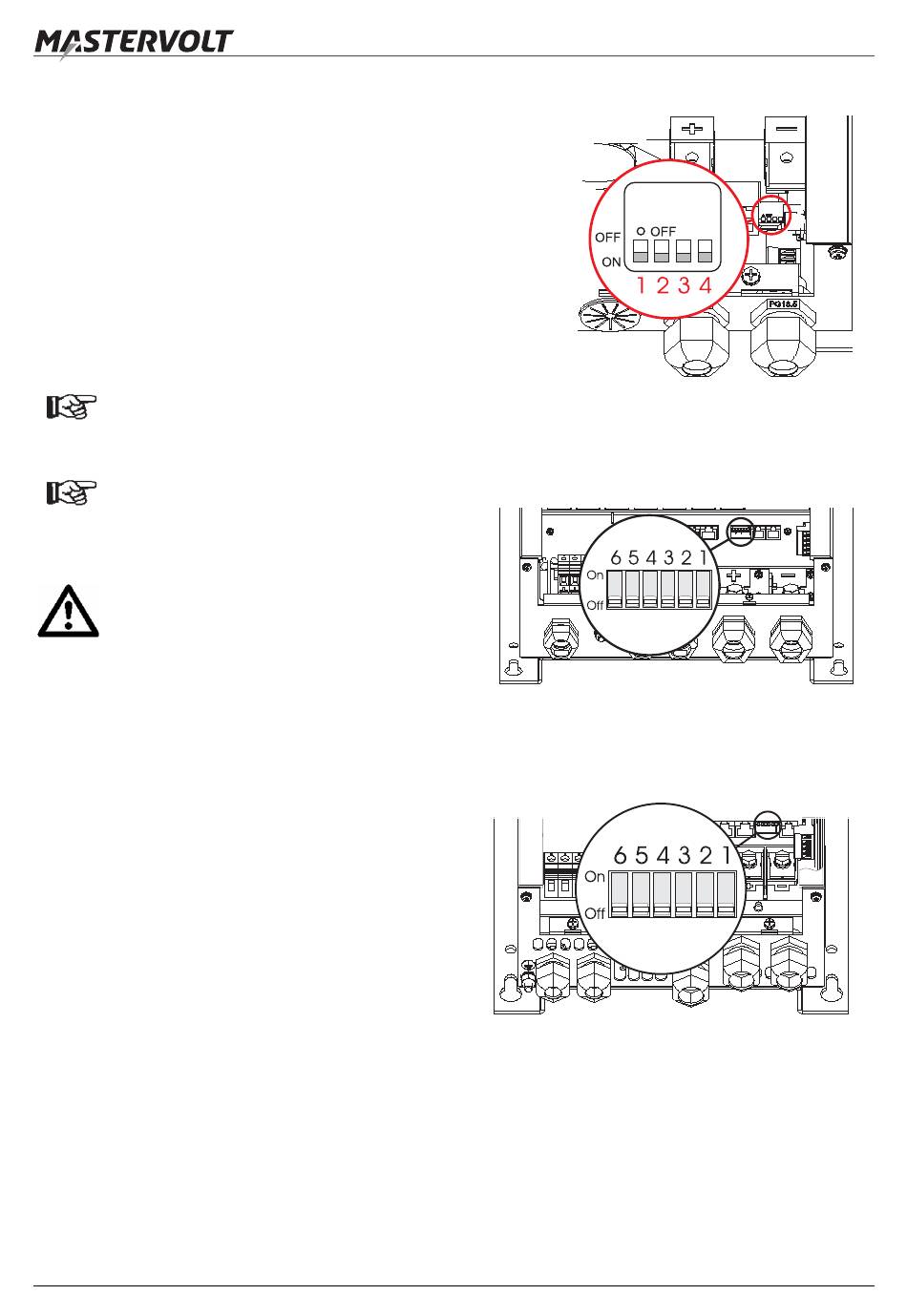

Figure 5: Location of the DIP-switches at battery charger
model Mass 24/25-2 (DNV)
Figure 6: Location of the DIP-switches at battery charger
models Mass 12/60-2, Mass 12/80-2 and Mass 24/50-2
Figure 7: Location of the DIP-switches at battery charger
models Mass 24/75 and Mass 24/100
INSTALLATION AND COMMISSIONING
13
