INSTALLATION AND COMMISSIONING
4.4
INSTALLATION DRAWING
DC Load
This schematic is to illustrate the general placement of the GMDSS Interface in a circuit. It is not meant to provide detailed
wiring instructions for any particular electrical installation.

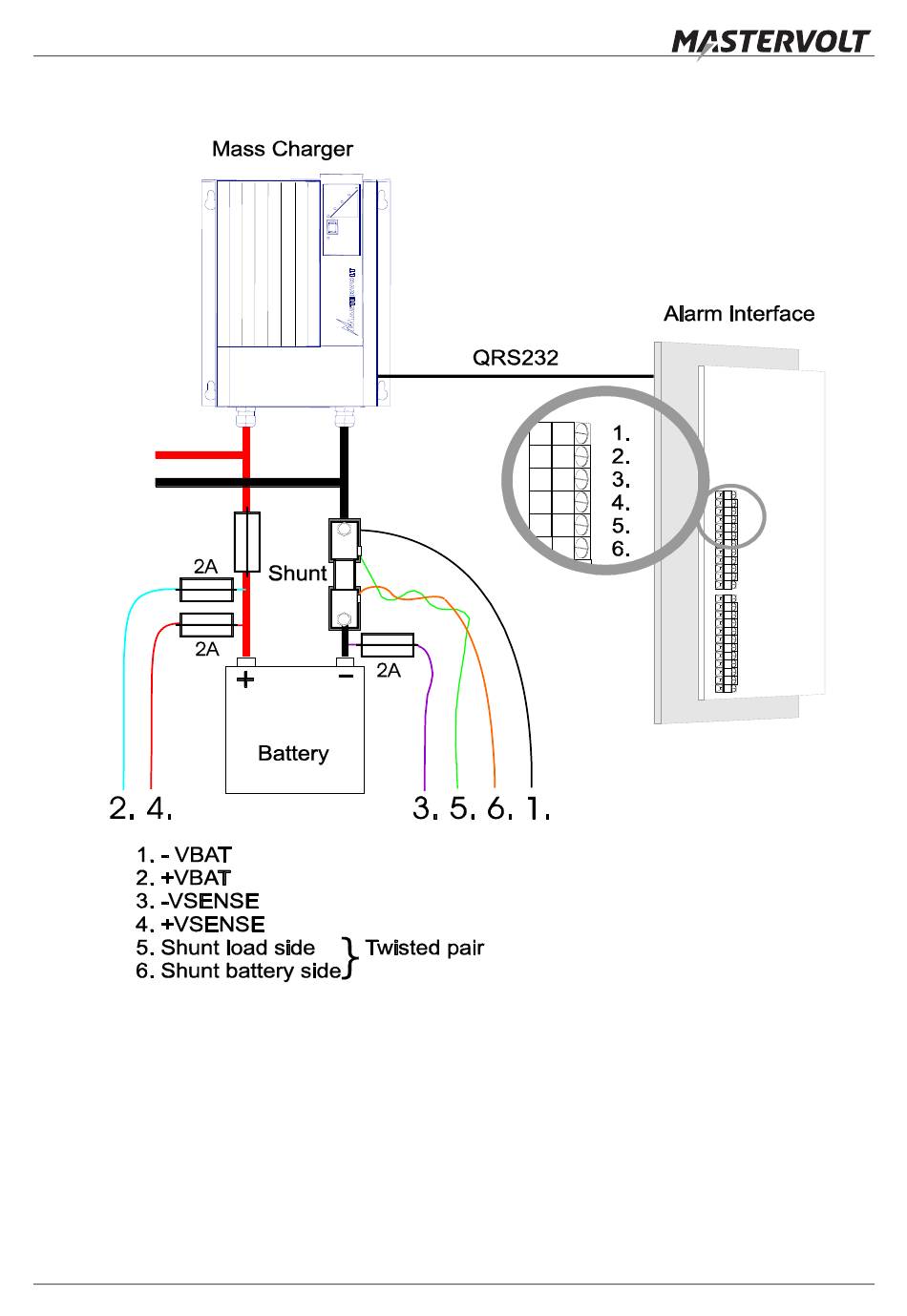

Figure 4: Installation drawing of the GMDSS Interface
12
Copyright © 2013 Mastervolt / January 2013 / GMDSS Mass Charger Alarm Interface Copyright / EN
