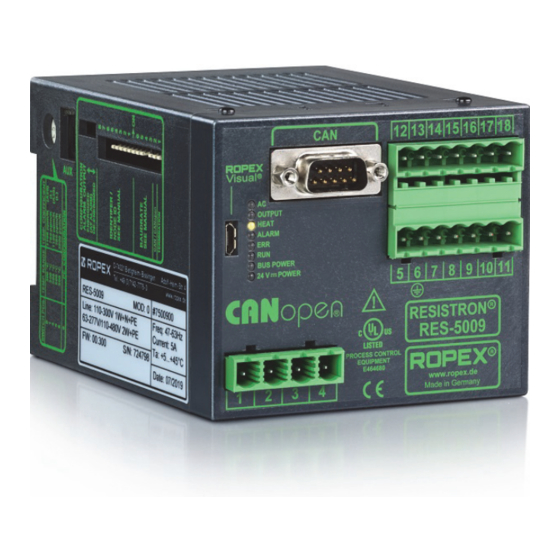

RESISTRON
RES-5009

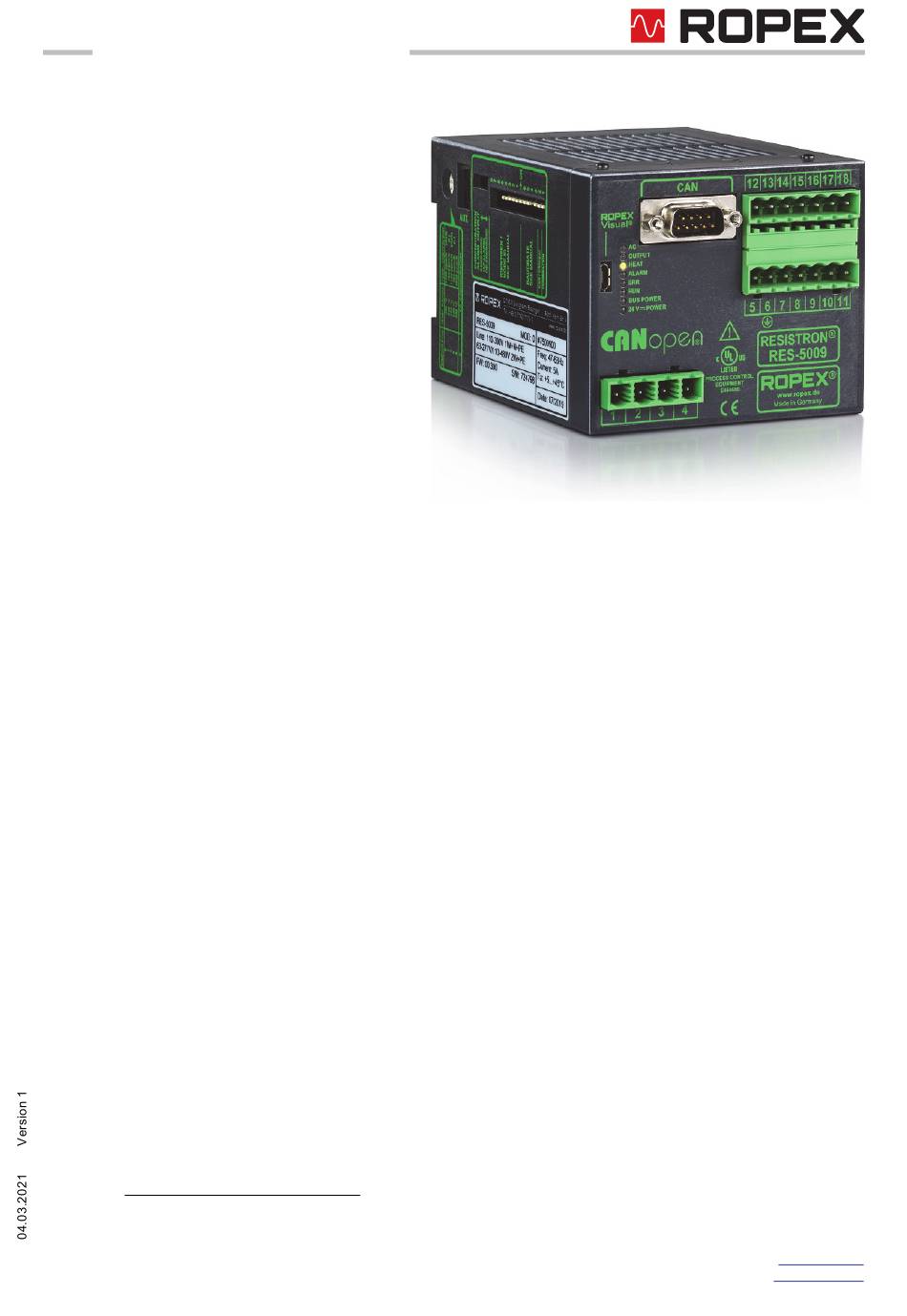

User Guide
Important features
•
CAN interface CAN 2.0A as per ISO 11898 for complete regulator control
®1
•
CANopen
•
ROPEX CAN protocol
•
Automatic zero calibration (AUTOCAL)
•
Automatic optimisation (AUTOTUNE)
•
Automatic configuration of the secondary voltage and current range (AUTORANGE)
•
Automatic phase correction (AUTOCOMP)
•
Automatic frequency adaptation
•
Booster output standard
•
Analogue output 0...10 VDC for ACTUAL temperature
•
Additional 24 VDC control signals for START 0 (setpoint 0) and START 1 (setpoint 1)
•
Alarm function with error diagnosis
•
Heating element alloy and temperature range can be selected
•
Wide voltage range for the use of 110...480 V
•
Eight channels for administration of various calibration values
•
Micro-USB interface for ROPEXvisual
•
cULus approval
®
1.
CiA
and CANopen
ROPEX Industrie-Elektronik GmbH
Adolf-Heim-Str. 4
74321 Bietigheim-Bissingen (Germany)
®1
Protocol (as per CiA
profile 301 in version 4.2.0)
®
are European Union trade marks of CiA e.V.
Tel.: +49 (0)7142-7776-0
Fax: +49 (0)7142-7776-211
®
E-Mail:
info@ropex.de
Internet:
https://ropex.de
Data subject to change
