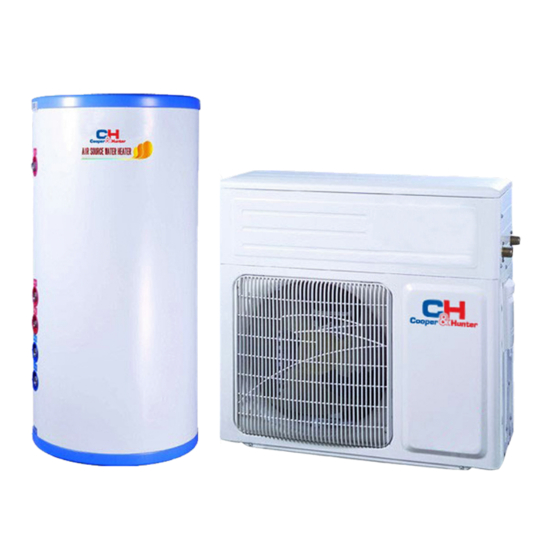

Air Source Heat Pump
Water Heater
Installation and Operation Manual
Air Conditioners
GRS-C3.8/NbA-K
MODEL:
GRS-C5.0/NbA-K
www.cooperandhunter.com
Advertisement
Table of Contents
Related Manuals for Cooper & Hunter GRS-C3.8/NbA-K
Summary of Contents for Cooper & Hunter GRS-C3.8/NbA-K
- Page 1 Air Source Heat Pump Water Heater Installation and Operation Manual Air Conditioners GRS-C3.8/NbA-K MODEL: GRS-C5.0/NbA-K Please read this manual carefully before using this product and keep it properly for future reference. Designed by Cooper&Hunter International Corporation, Oregon, USA www.cooperandhunter.com...
- Page 2 To Distinguished Users Thank you for choosing C&H air source heat pump water heater. In order to use this product safely, please read this Instruction carefully and pay special attention to cautions before and during installation. C&H air source heat pump water heater is a kind of technical electronic appliance, so its installation and maintenance should be performed by professionals and the user can contact local service center for help.
-
Page 3: Table Of Contents
Contents 1 Accessory Parts .................... 1 2 Cautions for Operation .................. 2 3 Specification and Technical Parameters ............4 4 Principle and Features of Product ..............5 4.1 Introduction of Principles ............... 5 4.2 Features of Unit ..................5 5 Instruction to Functions and Operation of Wired Controller ....... 6 5.1 Main Functions of Wired Controller ............ -
Page 4: Accessory Parts
Filter Safety check valve Manual discharge valve Automatic discharge valve Instruction Joint G 3/8 Drainage joint A (GRS-C3.8/NbA-K); Power cord with leakage module B (GRS-C5.0/NbA-K) Wrapping tape Wired controller Circulating water pipe DN20 PPR Tankinlet water pipe DN 15 PPR... -
Page 5: Cautions For Operation
Air Source Heat Pump Water Heater 2 Cautions for Operation Please read the following contents carefully before operating. WARNING Once abnormality like burning smell Don't operate water heater with Before installation, please occurs, please cut off the power supply wet hand. see if the voltage of local immediately and then contact with place accords with that... - Page 6 Air Source Heat Pump Water Heater E a rt h in g : t h e u n it m u s t b e Never insert any foreign matter Don't attempt to repair the unit by earthed reliably! The earthing i nto w at e r he ate r to a v o id yourself.
-
Page 7: Specification And Technical Parameters
Air Source Heat Pump Water Heater 3 Specification and Technical Parameters Table 1: Models and Specifications of Main Unit Model GRS-C3.8/NbA-K GRS-C5.0/NbA-K Heating capacity 3800 5000 Water yield Power input 1020（2520） 1350（2850） Current input Rated input 1750 2430 Rated current 11.1... -
Page 8: Principle And Features Of Product
Air Source Heat Pump Water Heater 4 Principle and Features of Product 4.1 Introduction of Principles Principle Drawing of Water Heater By use of heat pump principle, air source heat pump water heater consumes a part of electric energy for compensation and obtains heat from low level energy (air source) around through thermal circuit. -
Page 9: Instruction To Functions And Operation Of Wired Controller
Air Source Heat Pump Water Heater room or basement according to conditions. Without addition care by people, it is suitable for high buildings, villa, and so on. ● Easy operation: Water temp can be set by you and water supply can be on or off according to water temp and water quantity used by user, so that hot water can be supplied at any time in a day. -
Page 10: Touch Buttons Of Wired Controller
Air Source Heat Pump Water Heater 5.2 Touch Buttons of Wired Controller 1.Check button 2. Timer button 3. Increase button for temp and clock 4. Mode button 5. Prior button 6. Rapid button 7. Decrease button for temp and clock 8. On/off button 5.3 LCD Display of Wired Controller 1. -
Page 11: Instruction To Operation Of Wired Controller
Air Source Heat Pump Water Heater 5.4 Instruction to Operation of Wired Controller Notice: If there is not any operation of button for 15s, the wired controller will half light. In this case, the wired controller can be normally operated if pressing any of the buttons to let it light. - Page 12 Air Source Heat Pump Water Heater 3) Temp Setting Press ▲/▼ to increase or decrease setting water temp .When long press of it, the temp will increase or decrease by 1 per 0.5 second. Water temp setting range: 35 ~ 70 (50 under save mode) As shown in the right figure.
- Page 13 Air Source Heat Pump Water Heater System Time Setting Press check button into check state. In this case, defaulted check code 00 will be displayed at water temp displaying area. Under check state and when check codes are 00, press Timer button to set system’s time.
-
Page 14: Notices For Operation Of Wired Controller
Air Source Heat Pump Water Heater Parameters Check This function is usually for debugging personnel. When press check button into checking state, checking code flashes and corresponding parameters are displayed in clock displaying area. Press ▲ and ▼ to switch among code. 6) Malfunction Display If malfunctions occur during operation of system, temp displaying area will display error codes. -
Page 15: Installation
Air Source Heat Pump Water Heater 6 Installation 6.1 Notices for Installation ● Important Notices 1) Installation of the unit must be done by qualified personnel according to local layout rules and this Instruction. 2) Before installation, please contact with local maintenance center. Malfunction resulted from non- authorized department is not easy to handle. -
Page 16: Installation Of Insulated Water Tank
Air Source Heat Pump Water Heater 3) If canopy is installed, radiation and heat absorption of heat exchanger should not be hindered. 4) Main unit should be installed vertically at firm place and fixed with foot bolts. If vibration is great, anti- shock rubber mat should be added. -
Page 17: Connection Of Waterway System
Air Source Heat Pump Water Heater replenishment, hot water supply and drainage of water tank. 5) Connection of inlet/outlet waterway: Connect the safety check valve attached with the unit (→ points at insulated water tank) with the water inlet of water tank with PPR pipe according to the following figure, sealing with unsintered tape. -
Page 18: Installation Sketch Of Unit
Air Source Heat Pump Water Heater Warning: The water may drip from the discharge pipe of the pressure-relief device (Safety check valve) and ① . that this pipe must be left open to the atmosphere. T he pressure-relief device (Safety check valve) is to be operated regularly to remove lime deposits ②... -
Page 19: Electric Connection
Capacity of Model Power supply air switch (A) Live wire Neutral wire Earth wire GRS-C3.8/NbA-K 220-240V~ 50Hz GRS-C5.0/NbA-K 220-240V~ 50Hz Notice: T he power cord must be copper core and working temp should not exceed specified value. ① . I f the power cord is higher than 15m, please enlarge sectional area of it to avoid overload. -
Page 20: Installation Of Wired Controller
Air Source Heat Pump Water Heater 6) Install and fix the wired controller and then connect the communication wire between wired controller and main unit. 7) Separately lay the heavy and light current wires. Wired controller Main unit Water temp sensor 1 Main board Water temp... -
Page 21: Debugging Of Complete Unit
Air Source Heat Pump Water Heater Caution: During connection of wirings, pay special attention to the following items to avoid interference of electromagnetism to unit and even failure of it. T o ensure normal communication of unit, signal line and wiring (communication) of wired controller ①... - Page 22 Air Source Heat Pump Water Heater Fill of water and leakage test: Open cut-off valves of water inlet and outlet of water tank and tap or shower at hot water using end. If there is water continuously flowing out from tap or shower, it means the water tank has been full, so close the tap or shower.
-
Page 23: Addition And Discharge Methods Of Refrigerant
Air Source Heat Pump Water Heater 3) Operation of complete unit: Check waterway system after air discharge operation to ensure tap or shower at user side has been closed. Open other cut-off valves and then turn on the unit till “Heat up” icon is displayed on the wired controller to check the unit for normal operation. -
Page 24: Operation Performance Of Unit
Air Source Heat Pump Water Heater 9 Operation Performance of Unit 9.1 Hot Water Yield During heating, the water is heated by the unit absorbing heat energy from outside and then releasing it into the water in water tank. Heating capacity may be reduced once outdoor temp is decreased. The following chart is for reference. -
Page 25: Defrosting During Hot Water Operation
Air Source Heat Pump Water Heater 9.2 Defrosting During Hot Water Operation 1) If the unit frosts during water heating, it will automatically defrost for 2-3 min to improve heating efficiency. 2) During defrosting, fan motor stops running. 9.3 Re-startup after Long-time Stop If water heater restarts after long-time stop (including the first startup), there may be turbid liquid flowing from tap at the beginning. -
Page 26: Care And Maintenance
Air Source Heat Pump Water Heater any water flowing from drainage outlet and manual discharge valves A and B, and then close all valves and the two manual discharge valves. If the unit need be used again after drainage by the user, the water tank must be charged with water and then discharge the air before startup of the unit. -
Page 27: Troubleshooting
Air Source Heat Pump Water Heater 12 Troubleshooting Warning Don’t repair the water heater yourself to avoid electric shock or fire. If there is any question, please contact with service center. To save your money and time, please check the following items before asking for help. - Page 28 Air Source Heat Pump Water Heater Malfunction Phenomena Troubleshooting Ambient temp is out of running range of main unit, so Wired controller displays L6 and water temp by turns. the main unit won’t start up. Only auxiliary electric heater is independently run, which is normal. When ambient temp is too low, controller will limit There is difference between water temp when stop of the max.
- Page 29 Designed by Cooper&Hunter International Corporation, Oregon, USA www.cooperandhunter.com E-mail: info@cooperandhunter.com...
