  • Page 1 CH-HP0 8 UIMPR K CH-HP 12 UIMPR M CH-HP 20 UIMPR M...

  • Page 2: Table Of Contents

    CONTENT 1 Preface 2 Safety Precaution (1) Mark notes (2) Icon Notes (3) Warning (4) Attention 3 Specification (1) Appearance and structure of the heat pump (2) The data of unit (3) Unit dimension 4 Installation (1) Application of heat pump (2) Choose a right heat pump unit (3) Installation place (4) Installation method...

  • Page 3: Preface

    Preface In order to provide the customers with high quality, strong reliability and good versatility product, this heat pump is produced by strict design and manufacture standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit.

  • Page 4: Safety Precaution

    Safety Precaution To prevent the users and others from the harm of this unit, and avoid damage on the unit or other property, and use the heat pump properly, please read this manual carefully and understand the following information correctly. Mark Notes Meaning Mark...

  • Page 5: Warning

    Safety Precaution Warning Meaning Installation The heat pump must be installed by qualified personals, to avoid improper installation which can lead to water Professional installer leakage, electrical shock or fire. is required. Please make sure that the unit and power connection have good earthing, otherwise may cause electrical shock.

  • Page 6: Attention

    Safety Precaution ATTENTION Meaning Installation The unit CANNOT be installed near the flammable gas. Once there is any leakage of the gas, fire can be occur. Installation Place Make sure that the basement of the heat pump is strong enough, to avoid any decline or fall down of the unit Fix the unit Make sure that there is circuit breaker for the unit, lack of circuit breaker can lead to electrical shock or fire.

  • Page 7: Specification

    Specification 2. The data of unit s C H-HP08UIMPRK C H-HP12UIMPRM C H-HP20UIMPRM Model Heating Condition - Ambient Temp. (DB/WB): 7/6° C, Water Temp. (In/Out): 30/35° C 2.29~8.25 4.70~12.5 6.0~20.0 Heating Capacity Range BTU/h 7814~28150 16037~42652 20472~68240 Heating Power Input Range 0.63~1.81 1.08~3.44 1.5~5.0...

  • Page 8: Unit Dimension

    Specification 3. Unit dimension Model:CH-HP0 8 UIMPR K Power line Signal line Water outlet 1 '' Water inlet 1'' Drain 1002 Model:CH-HP 12 UIMPRM Power line Water outlet 1 '' Signal line Water inlet 1'' Model:CH-HP20UIMPRM...

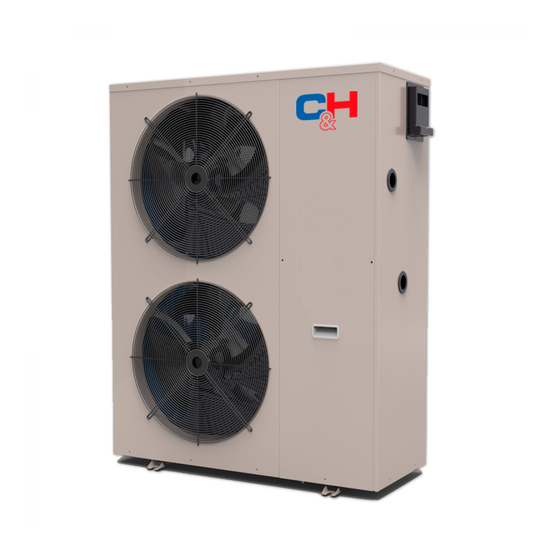

  • Page 9 Specification 1. Appearance and structure of the heat pump Model:CH-HP08UIMPRK Remote Controller (Manually) Air outlet in horizontal The longest distance of installing the direction remote controller is 200 meters. Water outlet tube Water intlet tube Model:CH-HP12UIMPRM Remote Controller (Manually) Air outlet in horizontal...

  • Page 10: Installation

    Installation Application of heat pump 1.1 Only for air-con Buffer tank Buffer tank Hot water tank Hot water tank PT valve PT valve Remark:Item 17, 18, 20, 21 Remark:Item 17, 18, 20, 21 Heat pump Heat pump Relief valve Relief valve can be connected with heat can be connected with heat Electrical heater...

  • Page 11: Choose A Right Heat Pump Unit

    Installation Choose a right heat pump unit 2.1 Based on the local climate condition, construction features and insulation level, calculate the required cooling(heating) capacity per square meter. 2.2 Conclude the total capacity which will be needed by the construction. 2.3 According to the total capacity needed, choose the right model by consulting the heat. pump features as below: Heat pump features Cooling only unit...

  • Page 12: Water Loop Connection

    Installation 5 Water loop connection Please pay attention to below matters when the water pipe is connected: Try to reduce the resistance to the water from the piping. The piping must be clear and free from dirty and blocks. Water leakage test must be carried out to ensure there is no water leaking.

  • Page 13: Transit

    Installation 8 Transit When the unit need to be hung up during installation, a 8 meters cable is needed, and there must be soft material between the cable and the unit to prevent damage to the heat pump cabinet. (See picture 1) Picture 1 WARNING DO NOT touch the heat exchanger of the heat pump with fingers or other objects...

  • Page 14: Operation And Use

    Operation and Use 1.Main interface display and function (1) Power on interface (2) Starting up interface...
  • Page 15 Operation and Use Key function Key number Key name Key function Click this key to switch ON or OFF On and off Red represents ON, while grey represents OFF Hot water mode, heating mode, cooling mode, Mode key hot water+heating mode or hot water+cooling mode can be selected by pressing this key.
  • Page 16 Operation and Use On and off As the main interface shows In shutting down interface (on/off key is in gray status), press on/off key can start up the machine. Note: In starting up interface (on/off key is in red status), press on/off key can shut down the machine.
  • Page 17 Operation and Use In the main interface, there are five modes can be selected after tapping the mode key (1) tapping hot water mode icon , then the display will change to this mode interface; (2) tapping heating mode icon , then the display will enter this mode interface;...
  • Page 18 Operation and Use 1.4 When the target temp is being set, pop-up keyboard is shown as following: Key function Key name Key number Tapping this key can back to Return key the main interface. Tapping this key to undo Delete key the last action.
  • Page 19 Operation and Use Note: Input the password of 22 or 022, click the enter key and the screen will be unlocked. 1.6 Timer setting Click the timer setting key to enter the timer setting and the interface display is as follows:...
  • Page 20 Operation and Use Key number Key name Key color Key function Click this key to return to the main Return key interface. Enable the Click this key to start or turn off the Enable: Green ON timer on timed start-up function Disable: Gray OFF Enable the Click this key to start or turn off the...
  • Page 21 Operation and Use Key number Key name Key function Click this key to return to the main Return key interface. Click this key to view the current Operating mode operating parameters of the unit. Click this key to set the unit mute Mute setting function mode.
  • Page 22 Operation and Use (2)Tapping system time setting button , then the interface display is shown as follows: Key number Key name Key function Click this key to return to the setup Return key interface. Up key Click this key to increase the value. Down key Click this key to decrease the value.
  • Page 23 Operation and Use (3)Tapping Mute setting button , then the interface display is shown as follows: Note: When the unit starts the automatic mode, the icon is displayed as When the unit is enabled to activate the mute function, the icon is displayed as When the unit is enabled to activate the powerful function, the icon is displayed as...
  • Page 24 Operation and Use 1.7 Fault interface Click the fault icon on the main interface and the interface display is as follows: Note: :Fault code :Fault name :Occurrence time of the fault, Day, month and year hour: minute :Click this key to clear all fault records 1.8 Color Display Calibration Keep click quickly at the blank area on any interface till you hear a long beep.

  • Page 25: Parameter List And Breakdown Table

    Operation and Use 2. Parameter list and breakdown table 2.1 Electronic control fault table Can be judged according to the remote controller failure code and troubleshooting Fault Reason Elimination methods Protect/fault display Standby Normal boot The temp. Sensor is broken or Inlet Temp Sensor Fault Check or change the temp.
  • Page 26 Operation and Use Frequency conversion board fault table: Fault Protect/fault Reason Elimination methods display Check and adjust the current IPM Overcurrent Shutdown IPM Input current is large measurement Fault Compressor Activation Lack of phase, step or drive hardware Check the measuring voltage check Failure damage requency conversion board hardware...

  • Page 27: Interface Diagram

    Operation and Use 3. Interface diagram 3.1 Wire control interface diagram and definition Sign Meaning 12V power + No use No use 485A 485B GND(power-) 3.2 Controller interface diagram and definition 485_A3 485_B3 485_A2 PC8002 485_B2 485_A1 485_B1 CAN_H CAN_L...
  • Page 28 Operation and Use Main board of the input and output interface instructions below Number Sign Meaning AI01 Inlet water temperature AI02 Outlet water temperature AI03 Exhaust temperature AI04 No use AI05 Ambient temperature AI06 Antifreeze Temperature / AI07 Suction temperature AI08 Coil temperature AI09...
  • Page 29 Operation and Use Inlet water temperature DO4_PWM DI4_PWM Outlet water temperature DO5_PWM Exhaust temperature No use DI5_PWM Electronic expansion valve Electronic expansion valve of EVI No use No use Wire controller/thermostat CN7(485-1) Driver board CN7(485-2) CN7(485-3) RO18 No use RO17 No use RO16 Alarm output...

  • Page 30: Appendix (1) Appendix

    Appendix Appendix 1 Install sketch map Especial installation expandable water tank automatic Pressure fill-water leakage valve valve Technical request 1.Each connection must be connected tightly and have no leakage. 2.the arrowhead orientation of automatic filled- water must accord with water supply. 3.The pressure of automatic filled-water has been set,and please do not remove screw.

  • Page 31: Appendix

    Appendix Appendix 2 The installation explanation of automatic filled-water When automatic filled-water valve is installed,the arrowhead orientation of inlet water must accord with the orientation of valve ; 2 Automatic filled-water has been adjusted in advance to 1.5bar 3 If readjust the pressure of inlet water,please operate as follows * open the screw cap C * If reduce the pressure of water supply, p l ease unscrew the pressure to adjust the screw(B)

  • Page 32: Appendix 3

    Appendix Appendix 3 The installation explanation of the leakage pressure valve. 1 The action pressure of leakage pressure valve 'is more than 3bar(valve is open) but the pressure can not be adjusted. 2 The valve will open automatically to make sure that the water loop of air-con system is safe when the water pressure in the backwater side is higher than the set pressure.
  • Page 33 Appendix Appendix 5 Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorised dealer. for Europe market 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 34 Appendix Appendix 6 Cable specification Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 2 1.5mm 1.5mm 30mA less than 0.1 sec than 10A 2 2.5mm 2.5mm 30mA less than 0.1 sec 10~16A 2 4mm 30mA less than 0.1 sec 16 ~25A...
  • Page 35 Appendix Appendix 7 C apacity correction table CH-HP20UIMPRM Heating Capacity（kW） Ambient Temperature(℃) Water outlet Temp.(℃) 10.70 11.61 12.53 13.04 14.08 15.05 16.07 17.15 19.16 20.81 21.82 22.61 23.78 24.85 25.81 26.67 27.44 10.54 11.44 12.34 12.84 13.88 14.83 15.83 16.90 18.87 20.50 21.50...
  • Page 36 Appendix Model:CH-HP 08 UIMPR K...
