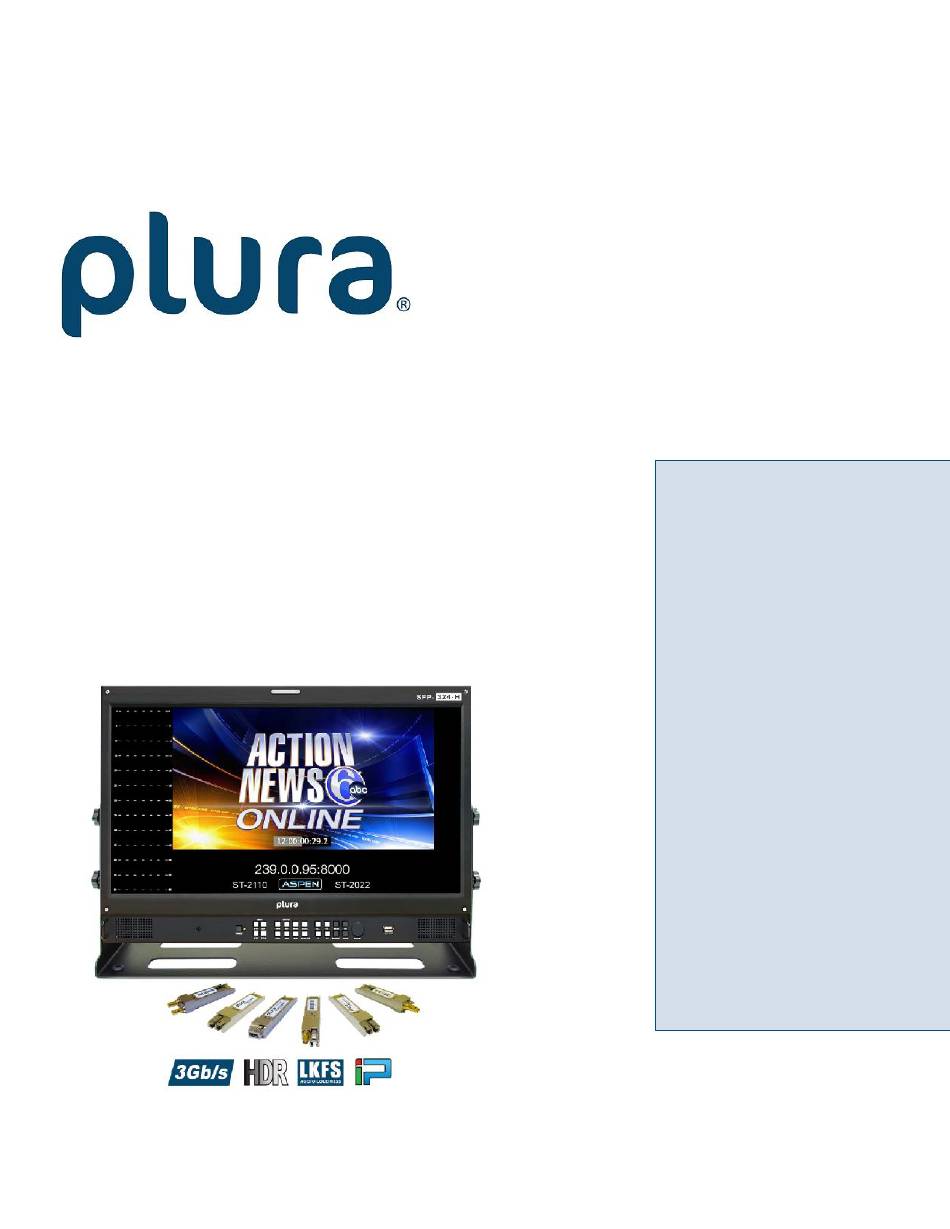

- Page 1 Operating SFP-H Series Instructions SFP-317-H SFP-H “Hybrid” Series SFP-321-H SFP-324-H SFP-332-H SFP-347-H SFP-355-H SFP-365-H SFP-384-H...
-
Page 2: Table Of Contents
SFP-H SERIES PRECAUTION--------------------------------------------------------------------------------------------------6 OVERVIEW---------------------------------------------------------------------------------------------- 10 GENERAL FEATURES----------------------------------------------------------------------------------- 10 FUNCTIONS AND I/O DESCRIPTIONS --------------------------------------------------------------- 11 ----------------------------------------------------------------------------------------------- 11 RONT SFP-317-H------------------------------------------------------------------------------------------ 11 Front Keypad--------------------------------------------------------------------------------------- 11 Front Keypad Operations ------------------------------------------------------------------------- 12 SFP Modules Information ------------------------------------------------------------------------- 13 Front panel LED Operations----------------------------------------------------------------------- 13 ... - Page 3 SFP-H SERIES MENU OPTIONS FOR DIFFERENT I/P SOURCES ---------------------------------------------------- 20 Menu of different Input source ------------------------------------------------------------------- 20 Adjust ---------------------------------------------------------------------------------------------- 21 Color Temperature Control------------------------------------------------------------------------ 21 SCAN ----------------------------------------------------------------------------------------------- 21 Aspect Ratio --------------------------------------------------------------------------------------- 22 Zoom ----------------------------------------------------------------------------------------------- 22 Mono/Blue Only ----------------------------------------------------------------------------------- 23 ...
- Page 4 SFP-H SERIES SETUP MENU OPTIONS ---------------------------------------------------------------------------- 31 Setup Load & Setup Save------------------------------------------------------------------------- 31 Function 1 & Function 2 & Function 3----------------------------------------------------------- 31 On Screen Display --------------------------------------------------------------------------------- 32 OSD Option ---------------------------------------------------------------------------------------- 32 Time code------------------------------------------------------------------------------------------ 33 Under Monitor Display (color: Tally R/G mode action ) ----------------------------------------- 33 Input ID -------------------------------------------------------------------------------------------- 33 ...
- Page 5 SFP-H SERIES Position--------------------------------------------------------------------------------------------- 40 PIP Blend ------------------------------------------------------------------------------------------- 41 PIP Swap ------------------------------------------------------------------------------------------- 41 Audio Select --------------------------------------------------------------------------------------- 41 Sub Window Function ----------------------------------------------------------------------------- 41 OSD TREE -------------------------------------------------------------------------------------------- 43 ------------------------------------------------------------------------------------------------ 44 ICTURE ------------------------------------------------------------------------------------------------- 45 OUND ------------------------------------------------------------------------------------------------ 46 ARKER GPI ---------------------------------------------------------------------------------------------------- 47 -------------------------------------------------------------------------------------------------- 48 ETUP PIP ---------------------------------------------------------------------------------------------------- 49...
-
Page 6: Precaution
To reduce the risk of any electric shock, do not remove back cover as there are no user serviceable parts inside. Please refer to Plura or a qualified service personnel/agent. To prevent fire or shock hazard, do not expose the rear side of the unit to rain or moisture. Do not rub or clean the Active Matrix LCD with any harsh surface as this may scratch, mark, or damage the Active Matrix LCD permanently. - Page 7 A product should be transported with care. Excessive force and uneven surfaces may cause the damage to product. Attachments Do not use attachments not recommended by Plura as they may cause hazards. Ventilation Do not block any of the ventilation openings.
- Page 8 SFP-H SERIES receptacles and the point where they exit from the product. 13. Outdoor Cable Grounding If an outdoor cable is connected to the product, be sure the cable is grounded to provide some protection against voltage surges and built-up static charges. A face plate also needs to be “...
- Page 9 SFP-H SERIES 18. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform s afety checks to determine that the product is in proper operating condition and the front seal is int 19.
-
Page 10: Overview
Party H/W decoder and the NEW PIPM "Plura Software Stack IP Platform" decoder. SFP-H is the ONLY monitor series in the market that can decode ST-2110, ST-2022 and ASPEN IP streams with PIPM "Plura Software Stack IP Platform" based on a powerful computing core and utilizing standard 10G/s SFP+ module. -
Page 11: Functions And I/O Descriptions
SFP-H SERIES 3. Functions and I/O descriptions 1) Front SFP-317-H Headphone Speaker USB-PIPM Front Key Front Keypad User’s Manual 11 of 50... -
Page 12: Front Keypad Operations
SFP-H SERIES Front Keypad Operations Key Name Operation STANDBY ►Power ON/OFF Button. This button is operated after being pressed about 3 seconds. ►SFP Modules Input CH selected. INPUT SFP1/SFP2/SDI/PIPM ►Channels in the input signal, the key led light. OUTPUT ►SFP Modules Output CH selected. -
Page 13: Sfp Modules Information
SFP-H SERIES SFP Modules Information SFP1/SFP2: SFP Module information will be displayed when available. The selected output channel will be in Yellow. SFP1/SFP2/SDI/PIPM: Available input channels. SFP1/SFP2/SDI/Aux/SDI Main/SDI Sub: can be selected as output port. Front panel LED Operations ... -
Page 14: Rear
SFP-H SERIES 2) Rear I/O Details Power IN – AC & DC PIN NO Description 1 , 2 3 , 4 + 12V *DC is not applicable when using PIPM User’s Manual 14 of 50... -
Page 15: Pipm Option - Connectivity
SFP-H SERIES PIPM OPTION - Connectivity PIPM In OPS 8p Connector User’s Manual 15 of 50... -
Page 16: Connections
SFP-H SERIES RJ-45 Connections ETHERNET/UPDATE - Firmware Upgrade/ System Controller (Ethernet) & GPI Remote PIN Assignment 8 PIN COMMON(GND) 4 PIN GPI 4 PORT GPI 7 PORT 3 PIN GPI 3 PORT 7 PIN (STAND BY/POWER ON/OFF) 6 PIN GPI 6 PORT 2 PIN GPI 2 PORT... -
Page 17: Menu Overview
SFP-H SERIES High Definition Multimedia Input Compatible CVBS1/Pr/R In GBR (SOG sync) Input CVBS2/Y/G/Y In Y, Pb, Pr Component Video Input CVBS / Composite/S-Video Input CVBS3/Pb/B/C In CVBS1/Pr/R Out CVBS2/Y/G/Y Out Component/GBR/Composite1,2,3/ S-Video Loop Out CVBS3/Pb/B/C Out AUDIO R In DVI-I/Component/GBR/Composite1,2,3/S-Video Sound Input AUDIO L In... -
Page 18: Typical Menu Operation
SFP-H SERIES Typical Menu Operation 1. Press MENU button: The main menu will be displayed. 2. Use button to select the desired menu option (icon). Adjust / Take Turn Right/ Left 3. While the desired menu option is selected, press to move to the second level. -
Page 19: On Screen Menus Selection And Adjustment
SFP-H SERIES 6. On Screen Menus Selection and Adjustment How to adjust the OSD screen 1. Press the MENU button and then UP/DOWN button to select each menu. button and then use UP/DOWN (SEL/INPUT)/MENU button to 2. Press the SEL/INPUT display the available menu. -
Page 20: Menu Options For Different I/P Sources
SFP-H SERIES 8. MENU OPTIONS FOR DIFFERENT I/P SOURCES Menu of different Input source < Video (NTSC) menu> < PC menu> < SDI, HDMI menu> User’s Manual 20 of 50... -
Page 21: Adjust
SFP-H SERIES Adjust - Adjust the values of Brightness, Contrast, Color, Tint and Sharpness directly from -50 to 50 Contrast, Brightness, Sharpness, Color (All Sources), Tint N/A (PC, DVI, HDMI, Component), Phase (Component). Color Temperature Control - For Setting the Color temperature or adjusting RGB gain value. - User (User setting RGB gain value), VAR(3200K ~ 11000K), Often used value (11000K, 9300K, 6500K, 5400K, 3200K) SCAN... -
Page 22: Aspect Ratio
SFP-H SERIES SFP-H SERIES SFP-H SERIES Aspect Ratio Aspect Ratio Aspect Ratio - For setting the aspect ratio. - For setting the aspect ratio. - For setting the aspect ratio. - Full Screen: The images are displayed to the full panel resolution. - Full Screen: The images are displayed to the full panel resolution. -
Page 23: Mono/Blue Only
SFP-H SERIES SFP-H SERIES SFP-H SERIES Mono/Blue Only Mono/Blue Only Mono/Blue Only - Mono color: For selecting monochrome images. - Mono color: For selecting monochrome images. - Mono color: For selecting monochrome images. - Blue Only: IN blue ONYr - Blue Only: IN blue ONYr - Blue Only: IN blue ONYr PC Menu (pc mode only) -
Page 24: Nr (Noise Reduction)
SFP-H SERIES NR (Noise Reduction) -Noise Reduction on/off. (NR is for Video signal (HD-SDI, Composite, S-Video and Y.Pb.Pr) & DTV timing. SFP Setting - SFP 1/ SFP 2 / SDI / AUX / SDI Main / SDI Sub available Output ports. - SFP 1/ SFP 2 / SDI / PIPM available Input ports. -
Page 25: Audio Menu Options
SFP-H SERIES 9. AUDIO MENU OPTIONS MAIN / SUB Audio out -Main: Select Internal Speaker out. (Auto/SDI1/SDI2/HDMI/Line in) -Sub: Select sub display sound. (Auto/SDI1/SDI2/HDMI/Line in) SDI Main/ SDI Sub Audio Output Channel - Audio output channel source select. (Channel1~4, Channel1/2, Channel3/4, off) SDI Main/ SDI Sub Audio Group ... -
Page 26: Level Meter Type
SFP-H SERIES Level Meter Type -Pair: Displays Right and Left Channels in pairs -Group: Displays Right and Left Channels in groups Level Meter Position - Level Meter Position selection. (TOP/Middle/Bottom) Level Meter Scale - Level Meter Scale mode selection (SMPTE Digital/EBU Digital/SMPTE IRT/EBU IRT/Nordic/ BBC/EBU/DIN/Expander DIN/SMPTE VU/EBU VU/France User’s Manual... -
Page 27: Audio Loudness (Lkfs)
SFP-H SERIES Audio Loudness (LKFS) -Audio Loudness setting (Off, Normal, Transparent) and Set Target levels (LKFS) Volume - Adjust the speaker or headphone Volume level. (0~32) Lip Sync Delay - Lip sync delay: Off, 1 Frame, 2 Frame User’s Manual 27 of 50... -
Page 28: Marker Menu Options
SFP-H SERIES Marker MENU OPTIONS Marker & User Marker < Marker > < User Marker > 1. Marker : 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1&4:3, User1, User2, User3 fitted panel size marker on screen. 2. User Marker: The user wants Marker size setting. (Below panel size) Example (1440x900 panel) 16:9 (16:9 Marker) 16:9 (4:3 Marker) -
Page 29: Center Maker
SFP-H SERIES Center Maker - “+” Marker on center of screen Marker Width -Marker line thickness setting. (0~10) Marker Color - Marker Line Color: Select Marker line color (White, Yellow, Blue, RED, Black) - Safety Line Color: Select Safety line color (White, Yellow, Blue, RED, Black) - Marker Back Color: Select Marker Back Color. -
Page 30: Gpi Menu Options
SFP-H SERIES GPI MENU OPTIONS GPI Control & GPI# - For allocating functions to particular GPI pins. - When remote control operations are to be performed using the GPI Controller. - GPI Control: GPI function Enable/Disable - GPI 1 ~ 7 GPI Function Description UNDEF... -
Page 31: Setup Menu Options
SFP-H SERIES SETUP MENU OPTIONS Setup Load & Setup Save - Setup Load: Load user saved values or default value - Setup Save: Save user setting values at user 1, 2, 3. Function 1 & Function 2 & Function 3 ... -
Page 32: On Screen Display
SFP-H SERIES Marker size Select Marker size Safety Area Marker Select Safety Area Time Code Time Code Display Caption Closed Caption On/Off Audio Mute Toggles Audio speaker/headphone Mute . Still Image Still Image On/Off Flip H-Flip Display ON/OFF Gamma Select Gamma Level Select (0.8 ~ 3.0) Vector Color Select 100% or 75%... -
Page 33: Time Code
SFP-H SERIES Time code Time code Enable: Time code Display (off/VITC/ATC LTC/ATC VITC1/ATC VITC2) Time code size: Time code size selection. (Small, Middle, Large) Time code Position: Time code display position selection (L-T, C-T, R-T, L-B, C-B, R-B) Time code Transparency: Disable blending Timecode background with video image. -
Page 34: Sdi Signal State
SFP-H SERIES ID Style: select “Input Format”/”Custom Label” Input Label: Display user custom name instead of standard input source ID on source OSD and message OSD SDI Signal state SDI Signal date display on/off (H/V sync, image, Audio, Audio Phase, EDH packet, EDH FF CRC, EDH APCRC, SAC, EAV, VPI) Advanced ... -
Page 35: Screen Saver
SFP-H SERIES Screen Saver - Blue Screen: Enables screen saver functions if necessary. - BG Gray: Select gray level for outside video boundary - Power save Mode: DPMS ( Display Power Management Signaling Power Save Mode Screen Control -Reset Calibration Color Calibration Reset -Backlight Adjust... -
Page 36: Network Configuration
SFP-H SERIES Network Configuration -Plura System Controller (PSC-400/500) Network setting. Load Network Settings: select “Enter”. (IP Address/Gateway/Subnet Load) DHCP: DHCP on/off (Manual IP settings – DHCP on) and Select “Apply” . X768 Mode -Selects X768 native PC video timings. (Auto/1024x/1280x/1360x/1366x) Caption ... -
Page 37: Waveform Format (Sdi Only)
SFP-H SERIES - 608 Caption mode Select. (C/C1, C/C2, C/C3, C/C4, TEXT1, TEXT2, TEXT3, TEXT4, OFF) Waveform Format (SDI ONLY) Press the WAVEFORM button to display the WAVEFORM Mode Y-Pb-Pr Waveform - Y_Pb_Pr WAVEFORM, Audio Level Meter, Video Info status & Time code Display. Y-Waveform + Vector Scope ... -
Page 38: Double
SFP-H SERIES Double - SDI 1, 2 & WAVEFORM & Vector Scope & Audio Level Meter, Video Info status & Time code Display. Y-Waveform + Vector Scope Trans - WAVEFORM & Vector Scope Trans. Vector Color - Vector color: Select 100% or 75% Line Select ... -
Page 39: Line
SFP-H SERIES Line # -line select Line Display -off/on/5 sec Dual Link Mode (SDI only) -Dual Link Mode select. (Auto/Off/RGB444/YCbCr444/YCbCr422/Progressive) Set ID & Active Set ID - Set ID is required for remote control. Set ID range (01~99). - Set Active SET ID number to enable Remote control. -
Page 40: Aspect Ratio
SFP-H SERIES Aspect Ratio - Choose PIP size PIP Small POP2 PIP1 Position - Choose the PIP position User’s Manual 40 of 50... -
Page 41: Pip Blend
SFP-H SERIES SFP-H SERIES SFP-H SERIES PIP Blend PIP Blend PIP Blend -Blend setting -Blend setting -Blend setting PIP Swap PIP Swap PIP Swap - Using Swap option, you can swap the program or source. - Using Swap option, you can swap the program or source. - Page 42 SFP-H SERIES - Part Sub Window: images are scaled to fit the screen in half. - FULL, Part function is only available with Digital input (SDI1, SDI2, DVI, HDMI) Sub Window Full Sub Window Part User’s Manual 42 of 50...
-
Page 43: Osd Tree
SFP-H SERIES SFP-H SERIES SFP-H SERIES OSD TREE OSD TREE OSD TREE User’s Manual User’s Manual User’s Manual 43 of 50 43 of 50 43 of 50... -
Page 44: Picture
SFP-H SERIES SFP-H SERIES SFP-H SERIES 1) Picture 1) Picture 1) Picture User’s Manual User’s Manual User’s Manual 44 of 50 44 of 50 44 of 50... -
Page 45: Sound
SFP-H SERIES SFP-H SERIES SFP-H SERIES 2) Sound 2) Sound 2) Sound User’s Manual User’s Manual User’s Manual 45 of 50 45 of 50 45 of 50... -
Page 46: Marker
SFP-H SERIES SFP-H SERIES SFP-H SERIES 3) Marker 3) Marker 3) Marker User’s Manual User’s Manual User’s Manual 46 of 50 46 of 50 46 of 50... -
Page 47: Gpi
SFP-H SERIES SFP-H SERIES SFP-H SERIES 4) GPI 4) GPI 4) GPI User’s Manual User’s Manual User’s Manual 47 of 50 47 of 50 47 of 50... -
Page 48: Setup
SFP-H SERIES SFP-H SERIES SFP-H SERIES 5) Setup 5) Setup 5) Setup User’s Manual User’s Manual User’s Manual 48 of 50 48 of 50 48 of 50... -
Page 49: Pip
SFP-H SERIES SFP-H SERIES SFP-H SERIES 6) PIP 6) PIP 6) PIP User’s Manual User’s Manual User’s Manual 49 of 50 49 of 50 49 of 50... - Page 50 www.plurainc.com www.plurasfp.com U.S.A. Germany U.A.E. S.Korea Mexico...
