Procom PCNSD18T Manual page 18

WARNING: Failure to posi-
tion the parts in accordance
with these diagrams or failure
to use only parts specifically
approved with this heater may
result in property damage or
personal injury.
CAUTION: After installation
and periodically thereafter,
check to ensure that no yellow
flame comes in contact with any
log. With the heater set to High,
check to see if yellow flames
contact any log. If so, reposi-
tion logs according to the log
installation instructions in this
manual. Yellow flames contact-
ing logs will create soot.
It is very important to install the logs exactly
as instructed. Do not modify logs. Use only
logs supplied with heater.
Each log is marked with a number. This
number will help you to identify the logs when
installing.
After installing logs, add decorative cinders
around the grate base, do not place any
decorative cinders on logs or burner.
Model PCNSD18T Log Placement:
1. Insert log #1 into slots in rear log bracket
on grate base as shown in Figure 20.
2. Insert log #2 into slots in middle grate
bracket as shown in Figure 20.
3. Insert logs #3 and #4 into slots in front
grate bracket as shown in Figure 20.
4. Place logs #5, #6 and #7 as shown in
Figure 21.
Model PCNSD24TD and PCNSD24M log
sets have a different appearance, but
install the same. See Figure 22a and
22b.
18
INSTALLATION
INSTALLING LOGS
Log #2
Log #3

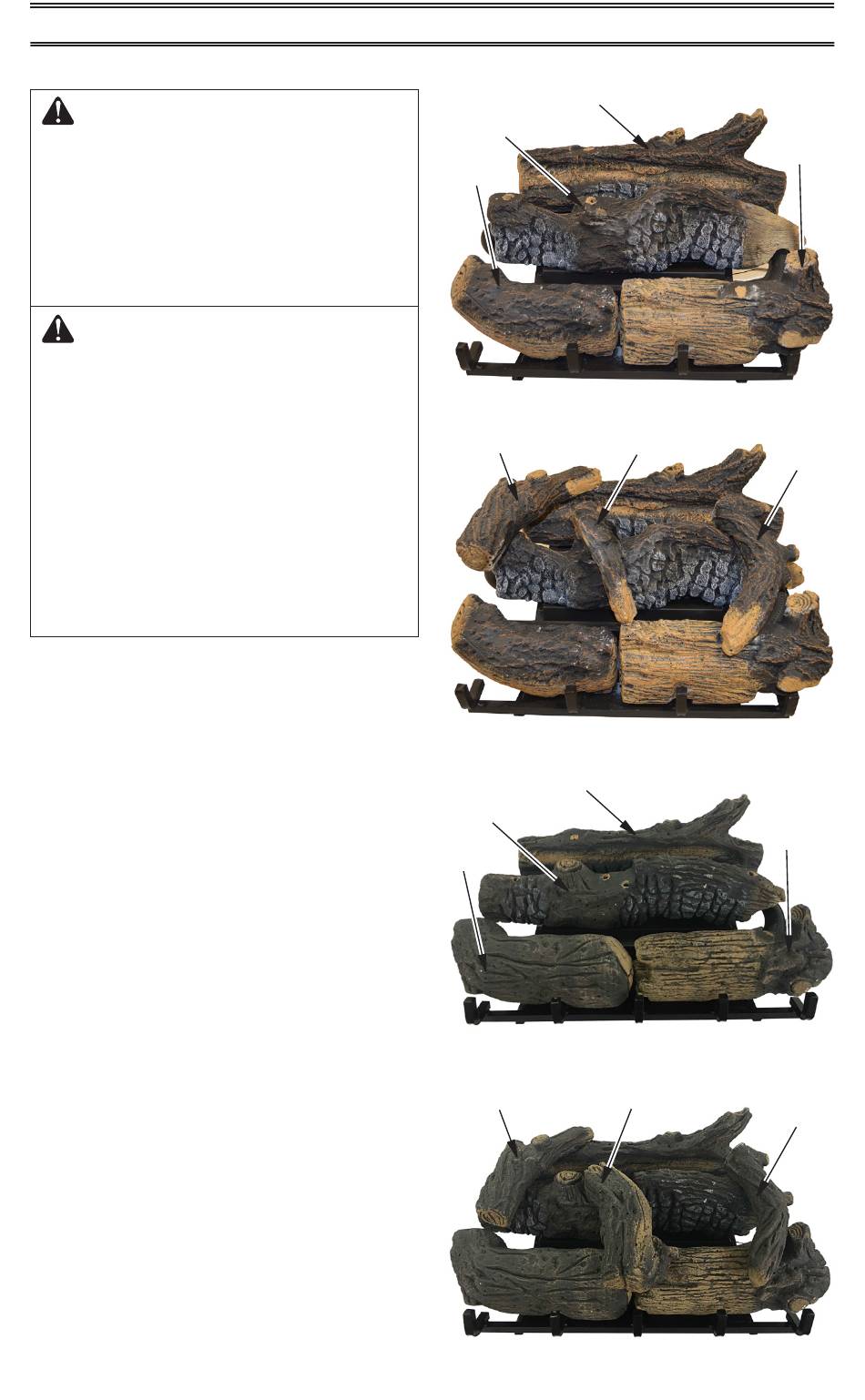

Figure 20 - Installing Logs #1 through #4
Log #5
Figure 21 - Installing Log #5, #6 and #7
Log #2
Log #3
Figure 22a - Installing Logs #1 through #4
Log #5
Figure 22b - Installing Log #5, #6 and #7
www.usaprocom.com
Log #1
Log #6
Log #1
Log #6
Log #4
Log #7
Log #4
Log #7
200239-01C
