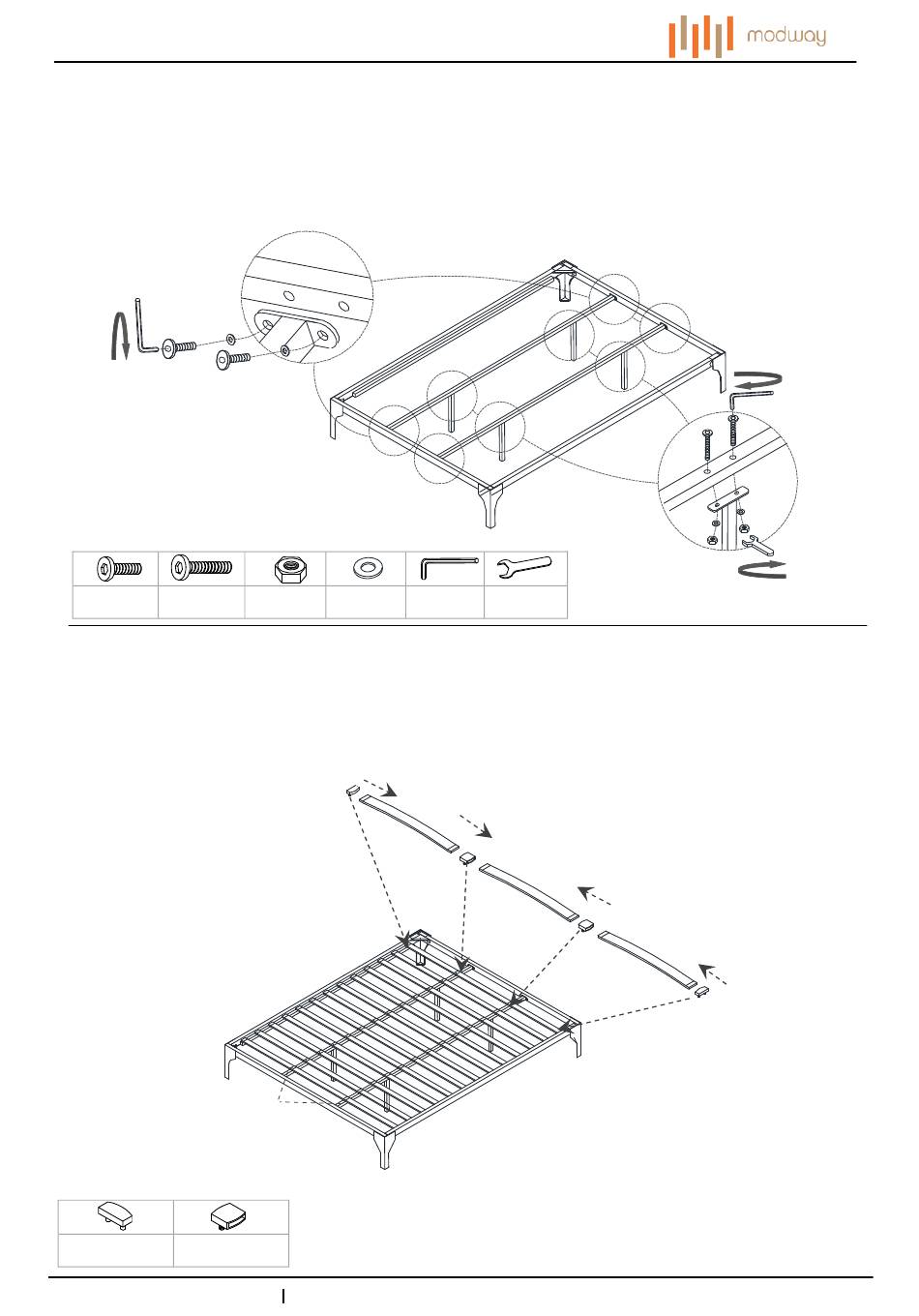

STEP 3:
Place 2 pieces of Stretcher (4) to the assembled Long Board (2).
Secure each end of Stretcher (4) by using 2 pieces of Bolt (A) and 2 pieces of Flat Washer (E) as shown.
Tighten Bolts (A) by using Allen Wrench (F) clockwise until secure.
Place 2 pieces of Support Leg (5) under each assembled Stretcher (4).
Secure each Support Leg (5) by using 2 piece of Bolt (B), 2 pieces of Nut (D), 2 pieces of Flat Washer (E) as shown.
Tighten Bolts (B) and Nuts (D) by using Allen Wrench (F) and Open Wrench (G) until secure.
F
E
A
Ax8 Bx8
STEP 4:
Insert 2 piece of Center Plastic Cover (J) into the end of 1 piece of Slat (6) as shown.
Insert one end of 2 pieces of Slats (6) into the 2 pieces of Center Plastic Cover (J) as shown.
Insert 2 pieces of Side Plastic Cover (H) into the reaming end of 2 pieces of Slat (6) as shown.
Insert the assembled Side Plastic Covers (H) into the corresponding holes on Long Board (1), and the assembled Center
Plastic Covers (J) into the corresponding holes on Center Rail (4)as shown.
Repeat the same steps for the remaining 33 pieces Slat (6).
Hx26 Jx26
Customer Service 908-368-1025︱www.modwayfurniture.com
1
4
E
A
3
1
Dx8 Ex16
H
2
4
1
Assembly is complete. Your bed frame is ready to be used now!
