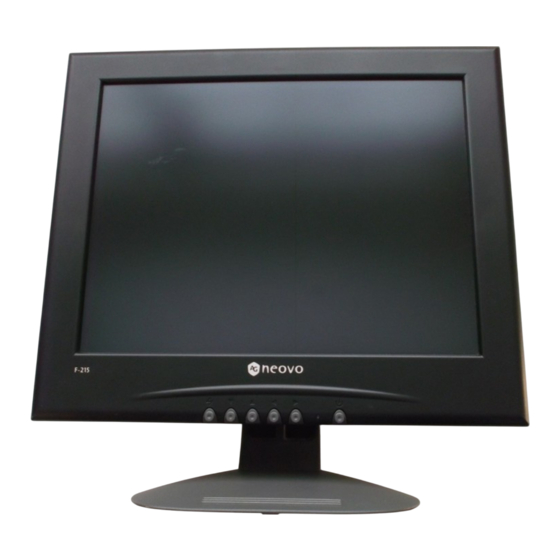

Page 2: Table Of Contents
Precautions ...2 ... 2 NSTALLATION ... 2 OWER CONNECTION ... 2 SING THE ... 3 AINTENANCE RANSPORTING THE MONITOR Getting Started ... 4 ...4 ACKAGE CONTENTS DENTIFYING PARTS AND CONTROLS ...6 ETUP Customizing your Monitor ...7 OSD G ORKING WITH ROUPS Display Adjust...8 Color Temperature...8... -
Page 3: Precautions
Installation Do not cover or block the ventilation ports on the rear of the monitor. Do not install the monitor close to heat sources such as radiators or air ducts, or in a location exposed to direct sunlight, excessive dust, mechanical vibration, or shock. Power connection Use the correct power cord for your local voltage. -
Page 4: Maintenance
Maintenance Clean the cabinet and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any abrasive materials or solvents such as alcohol or benzene. Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as pens or screwdrivers, as the screen may scratch. -
Page 5: Getting Started
Package contents Before beginning, ensure that the carton contains the following items: Monitor Power adapter Power cord Floppy/CD-ROM containing Windows This manual Getting Started information file ®... -
Page 6: Identifying Parts And Controls
Identifying parts and controls The center front panel of the monitor carries the control array. The controls are described below: AUTO button Automatically adjusts the picture and performance. The AUTO function should be used the first time you use the monitor and after changing the resolution and/or refresh rate of the input signal. -
Page 7: Setup
Setup Follow these directions to correctly set up your monitor. Remove all packing materials and wrapping from the monitor Place the monitor in its desired location. Ensure that there is space around the monitor, especially the rear area. With the computer turned off, connect the VGA signal cable. The native monitor cable connects to the 15-pin compatible VGA port on your IBM/PC computer. -
Page 8: Customizing Your Monitor
The On Screen Display (OSD) system provides a full range of customizable tools to optimize your display. Important: While full customization is available, we strongly recommend using the AUTO settings, which are preset to fully optimize your monitor’s performance. Simply press the AUTO button to engage the AUTO settings. -
Page 9: Display Adjust
The OSD Areas contain the following adjustment functions: Display Adjust Color Temperature OSD Adjust Misc Adjust... -
Page 10: Brightness & Contrast
Brightness & Contrast To fine-tune the monitor’s brightness and contrast, select the pertinent item from the menu. Use the RIGHT scale that appears at the bottom of the window. Push the AUTO button menu. Horizontal & Vertical Position To fine-tune the display’s position on the monitor screen, select the pertinent item from the menu. -
Page 11: White Balance
White Balance To enable the monitor’s automatic White Balance capability, select White Balance from the menu. Use the RIGHT at the bottom of the window. Push the AUTO button menu. Selecting a Color Temperature setting The following conditions are recommended for the available settings: Setting 9300K 6500K... -
Page 12: Osd Time
OSD Time To set the duration of the OSD window’s display, select OSD Time from the menu. Use the RIGHT 30, 40, 50, 60 seconds. Push the AUTO button menu. Transparency OSD To change the transparency of the OSD window, select Transparency OSD from the menu. -
Page 13: Mode Text/Graphics
Mode Text/Graphics To choose between the monitor’s automatic Sharpness optimization for Text or Graphic use, select Mode Text/Graphic from the menu. Use the RIGHT desired at the bottom of the window. Push the AUTO button menu. Note: For better performance, please change to “Text” mode when display resolution is set at 720 x 400 and change to “Graphics”... -
Page 14: Warning Messages And Troubleshooting
Warning Messages and Troubleshooting Warning Messages Message CAN NOT DISPLAY THIS INPUT SIGNAL NO SIGNAL INPUT MAIN CONTROL MENU LOCKED WAIT FOR AUTOMATIC ADJUSTMENT Solution The input signal is not acceptable by the monitor. Please ensure that the video resolution and frequency range ·... -
Page 15: Troubleshooting
Troubleshooting Symptom No picture · LED power indicator is · not lit No picture · The LED power · indicator is orange Text is not solid · Screen image is not · centered properly Some lines are missing · There are tiny red, ·... -
Page 16: Lcd Panel Display Technical Features And Specifications
LCD Panel Display Technical Features and Specifications Panel Input Signal Compatibility Connector Tilt Weight Power Screen Size 15" (381mm) diagonal Pixel Format 1024 x 768 vertical strip Horizontal: 30kHz - 60kHz, Frequency Vertical: 50Hz - 75Hz Max. Pixel Clock 80MHz Max to 1024 x 768 @ 75Hz Max to 1024 x 768 @ 75Hz Power... -
Page 17: Regulations
FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Tco'95
TCO'95 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. - Page 19 TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden). Environmental requirements Brominated flame retardants Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire.
-
Page 20: Tco'99
TCO’99 Congratulations! You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. - Page 21 Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
