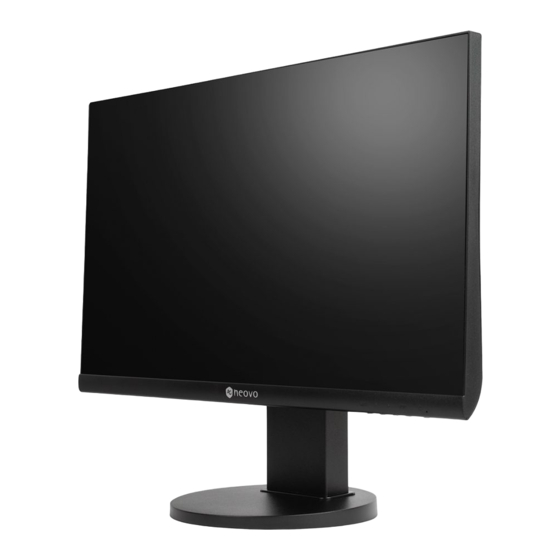

- Page 1 FS-24G & FS-27G LED-Backlit Monitor User Manual displays.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION WEEE ................................3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Monitor ........................... 6 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................7 1.2 Installation .............................. -
Page 3: Safety Information
Safety Information SAFETY INFORMATION WEEE Information for users applicable in European Union countries o on t e pro ct or its pac a in si nifies t at t is pro ct as to e ispose separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 4: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
PRECAUTIONS Cautions When Using Use only the power cord supplied with the LCD monitor. The power outlet should be installed near the LCD monitor and be easily accessible. If an extension cord is used with the LCD monitor, ensure that the total current consumption plugged into the power outlet does not exceed the ampere rating. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance o not atte pt to ser ice t e onitor o rse re er to a ifie ser ice personne . Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. -
Page 7: Chapter 1: Product Description
When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor Stand Quick Start Guide Quick Start Guide FS-24G & FS-27G LED-Backlit Monitor FS-24G/FS-27G_Quick Guide_V010 displays.agneovo.com FS-24G FS-27G HDMI Cable... -
Page 8: Installation
2. Attach the stand to the LCD monitor. a. Rotate the base mount 90° counter-clockwise. b. Attach the stand to the base mount. c. Fasten the screw to secure the stand. Then push the screw ring down to lock it in place. FS-24G FS-27G... -
Page 9: Adjusting The Viewing Angle And Height
Hold the stand so that the screen does not topple when you make the adjustment. You are able to adjust the screen angle and height as below: • Tilt angle: -5°~ +22° -5°~ +20° FS-24G FS-27G • Swivel angle: 40° 40°... - Page 10 PRODUCT DESCRIPTION • Pivot angle: 0°~ 90° 0°~ 90° 90° 90° FS-24G FS-27G Note: Before making the adjustment, make sure to adjust the height to the highest position, and then tilt the screen 90˚. • Height adjustment: 0 ~ 130 mm...
-
Page 11: Wall Mounting
Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View Monitor screen Control buttons Press the button to perform its function. For more information about each button, refer to pages 13-14. -
Page 13: Control Buttons
PRODUCT DESCRIPTION 1.3.2 Control Buttons LED Indicator LED Indicator FS-24G FS-27G Button Description Menu Button On Screen Display (OSD) (MENU) • Press to call out the OSD menu. During OSD menu se to confir t e se ection or enter a s en . - Page 14 PRODUCT DESCRIPTION Button Description Auto Button Auto Adjustment (available in VGA input only) (AUTO) Press to perform auto adjustment. This function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. When auto adjustment is initiated, the below message is displayed on the screen. Auto Adjust When the message disappears, this indicates the auto adjustment is completed.
-
Page 15: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View AUDIO HDMI HDMI FS-24G FS-27G AUDIO HDMI AC power input. DP(DisplayPort) Connect DisplayPort signals input. HDMI Connect HDMI signals input. Connect VGA signals input. AUDIO IN Connect audio signals input (3.5 mm Stereo Audio Jack). -
Page 16: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 17: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • DisplayPort HDMI Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD monitor and the other end to the DisplayPort connector of the computer. -
Page 18: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices • Audio Input Connect one end of an audio cable to the audio port of the LCD monitor and the other end to the audio port of the computer. AUDIO Audio Out • Audio Output Connect a headphone to the headphone jack of the LCD monitor. -
Page 19: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu 1. Press the MENU button to call out the OSD window. Contrast Brightness Submenu During H D M I/Display P ort input, Picture Setting is Color Temp. -
Page 20: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree Main Menu Submenu Reference Colour Contrast Refer to page 22. Brightness Color Temp. 9300 6500 5500 USER Auto Adjust Color Adjust Picture H. Position Refer to page 23. V. Position Clock Phase Language English Refer to page 24. - Page 21 ON SCREEN DISPLAY MENU Main Menu Submenu Reference Other Mode Refer to page 25. Vivid Movie Audio Volume Signal Source HDMI Aspect Ratio 16:9 AUTO Active Contrast Over Drive Anti Blue Light ANTI-BURN-IN Reset Reset Refer to page 26. aila ility of some menu items e en on the in ut source signal. f the menu is not a aila le it is Note: disabled and greyed out.
-
Page 22: Chapter 4: Adjusting The Lcd Monitor
Chapter 4: Adjusting the LCD Monitor CHAPTER 4: ADJUSTING THE LCD MONITOR 4.1 Colour Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Colour menu. Contrast Contrast Brightness... -
Page 23: Picture Setting
ADJUSTING THE LCD MONITOR 4.2 Picture Setting Note: This menu is only available if the input source is VGA. 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Picture menu. H. -
Page 24: Osd Setting
ADJUSTING THE LCD MONITOR 4.3 OSD Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the OSD menu. Language English Language English OSD H. -
Page 25: Other Setting
ADJUSTING THE LCD MONITOR 4.4 Other Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Other menu. Mode VIVID Movie Mode VIVID Movie... -
Page 26: Reset Setting
ADJUSTING THE LCD MONITOR 4.5 Reset Setting 1. Press the MENU button to call out the OSD window. 2. Press the t or u button to select and press the MENU button to enter the Reset menu. Reset Reset 1920x1080 60Hz 1920x1080 60Hz 3. -
Page 27: Chapter 5: Appendix
Chapter 5: Appendix CHAPTER 5: APPENDIX 5.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of Change the resolution or the the graphics card of the computer refresh rate of the graphics Out of range is set too high. -
Page 28: Troubleshooting
APPENDIX 5.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 29: Transporting The Lcd Monitor
Lift the screw ring and loosen it to detach the stand from the base mount. Then remove the stand. c. Rotate the base mount 90° clockwise. FS-24G FS-27G 2. Put the LCD monitor inside its original plastic. Then place the LCD monitor into the lower foam cushion. - Page 30 APPENDIX FS-24G FS-27G Note: • It is recommended to use the original packaging box. • W hen repacking, carefully place the LCD monitor in its box and protect the glass panel from touching any object.
-
Page 31: Chapter 6: Specifications
Chapter 6: Specifications CHAPTER 6: SPECIFICATIONS 6.1 Monitor Specifications FS-24G FS-27G Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 23.8" 27" Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.275 mm... -
Page 32: Monitor Dimensions
220.0 535.0 16.2 M4x10L 51.4 FS-27G 40° 320° 613.8 M4x10L 46.6 606.5 256.9 100.0 256.9 22.0 51.4 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2020 AG Neovo. All rights reserved. FS7G00/FS4G00_UM_V010...
