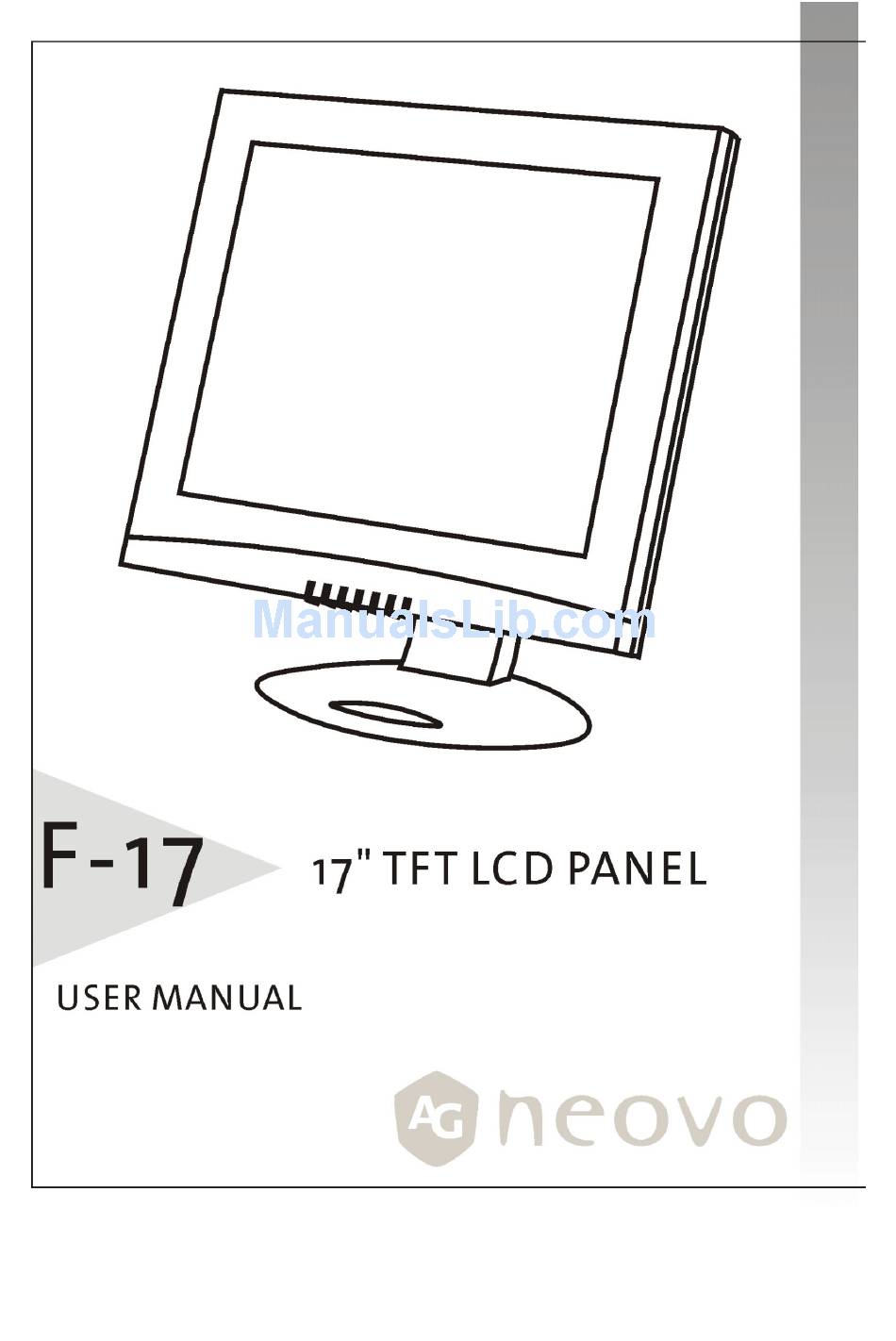

AG Neovo F-17 User Manual

17" tft lcd panel
Hide thumbs Also See for F-17:
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo F-17

Summary of Contents for AG Neovo F-17

  • Page 2: Table Of Contents

    Table of Contents GETTING STARTED...3 Quick Setup...3 Unpacking ... 4 Identifying Components and Controls...5 Adjusting the Monitor’s Tilting Angle... 6 Connecting AC Power...7 Connecting Video... 8 CUSTOMIZING YOUR MONITOR ... 9 Adjusting the Monitor’s Display ... 9 Working with OSD Groups ...9 Display Adjust ...10 Brightness &...

  • Page 3: Getting Started

    Your LCD monitor is versatile, ergonomic, and above all easy to use. The LCD monitor is capable of displaying most standards, from 640 x 480 VGA to 1280 by 1024 SXGA. The front-panel controls allow you to easily adjust the monitor’s display parameters to suit your habits.

  • Page 4: Unpacking

    Unpacking After you unpack the monitor, make sure the following items are included in the box and are in good condition: LCD monitor · Power adapter · Power cord · Floppy/CD-ROM · (containing information file) This user’s manual · If you find that any of these items are missing or appear damaged, contact your dealer immediately.

  • Page 5: Identifying Components And Controls

    Identifying Components and Controls The following figure shows the monitor’s power button, status LED, and On-Screen Display (OSD) controls: The controls are described below: AUTO button Automatically adjusts the picture and performance. The AUTO function should be used the first time you use the monitor and after changing the resolution and/or refresh rate of the input signal.

  • Page 6: Adjusting The Monitor's Tilting Angle

    Adjusting the Monitor’s Tilting Angle Your LCD monitor’s vertical tilting angle can be adjusted for comfortable viewing. To adjust the tilting angle, grasp the top corners of the monitor with both hands and tilt to the desired angle. Warning! Forcing the monitor past its maximum extension can result in damage to the monitor.

  • Page 7: Connecting Ac Power

    Connecting AC Power Refer to the following instructions for connecting AC power to the LCD monitor. Plug the female end of the power cable into the AC-adapter and the male end of the power cord into a wall socket. (The plug on the power cable will vary according to the electrical standard for your area.) Plug the adapter power connector into the LCD monitor’s DC power jack on the rear of the monitor as shown here.

  • Page 8: Connecting Video

    Connecting Video Turn off the PC and the LCD monitor before connecting your LCD monitor to the computer. Connect the VGA cable to the PC’s VGA port. Tighten the connecting screws.

  • Page 9: Customizing Your Monitor

    This section covers the LCD monitor’s On-Screen Display (OSD), and front panel control buttons. Adjusting the Monitor’s Display The LCD monitor features an intuitive, menu-driven, OSD. You can access the OSD any time that the PC is powered up. If the PC is in a power saving mode, or is powered down, the OSD is inaccessible.

  • Page 10: Display Adjust

    Use the DOWN Push the AUTO button selection menu. Push the AUTO button The OSD Groups contain the following adjustment functions: Display Adjust BRIGHTNESS CONTRAST H-POSITION V-POSITION CLOCK PHASE AUTOADJUST ADVANCEAUTO 1280 X 1024 / Brightness & Contrast To fine-tune the monitor’s brightness and contrast, select the item from the menu.

  • Page 11: Clock & Phase

    Clock & Phase To fine tune picture performance to compensate for drifts in the computer signal, select the item from the menu. Use the RIGHT 100 scale that appears at the bottom of the window. Push the AUTO button selection menu. Auto Adjust To enable the monitor’s Auto Adjust capability, select Auto Adjust from the menu.

  • Page 12: Selecting A Color Temperature Setting

    Selecting a Color Temperature setting The following conditions are recommended for the available settings: Setting Select the desired setting from the menu. Push the AUTO button selection menu. Selecting a User-Defined Color Balance Setting You can fine-tune the red/green/blue picture settings according to your preference or specific application.

  • Page 13: Osd Position

    OSD Position To position the OSD window to your preference, select OSD Position from the menu. Use the RIGHT available positions. Push the AUTO button selection menu. OSD Time To set the duration of the OSD window’s display, select OSD Time from the menu.

  • Page 14: Misc Adjust

    Misc Adjust RECALL MODE TEXT/GRAPHICS INFORMATION BACKLIGHT SHARPNESS 1280 X 1024 / Recall To return the monitor’s settings to the factory default, select Recall from the menu. Use the RIGHT Push the AUTO button selection menu. Mode Text/Graphics To choose between the monitor’s automatic sharpness optimization for text or graphic use, select Mode Text/Graphic from the menu.

  • Page 15: Backlight

    Backlight To set the brightness of the monitor’s backlight, select Backlight from the menu. Use the RIGHT 1-100 scale. Push the AUTO button selection menu. Sharpness To set the sharpness of the display, select sharpness from the menu. Use the RIGHT Softer-Sharper scale.

  • Page 16: Troubleshooting

    Troubleshooting Procedures This LCD monitor comes pre-adjusted with standard VGA timing. Due to output timing differences among various VGA cards, you may initially experience an unstable or unclear display when a new display mode or new VGA card is selected. Before applying any of the following troubleshooting procedures, you should first press the AUTO Warning Messages...

  • Page 17: Troubleshooting

    Troubleshooting Symptom No picture · LED power indicator is · not lit No picture · The LED power indicator · is orange Text is not solid Screen image · centered properly Some lines are missing · There are tiny red, green, blue or black dots on the screen.

  • Page 18: Lcd Panel Display Technical Features And Specifications

    LCD Panel Display Technical Features and Specifications Screen Size Panel Pixel Format Frequency Input Signal Max. Pixel Clock Compatibility Connector Power Tilt Tilt Angle Weight Power Consumption To ensure supply availability at shipment, your monitor will be fitted with one of two panels. Both options are of superior quality and state-of-the-art manufacturing.

  • Page 19: Regulation

    Regulation FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 20: Tco '95

    TCO ‘95 Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 21 via the Internet, using the address: TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden). Environmental requirements Brominated flame retardants Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings.

  • Page 22: Tco'99

    TCO’99 Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 23 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
