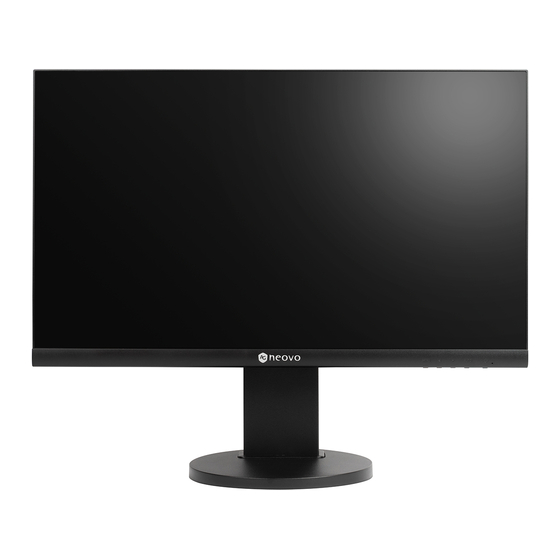

- Page 1 FS-24 & FS-27 LED-Backlit Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Contents SAFETY INFORMATION WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 6 Notice for the LCD Display ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... - Page 3 TABLE OF CONTENTS CHAPTER 6: APPENDIX 6.1 Warning Messages ..........................29 6.2 Troubleshooting ............................ 30 6.3 Transporting the LCD Display ......................31 CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications .......................... 33 7.2 Display Dimensions ..........................34...
-
Page 4: Safety Information
SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources. -
Page 5: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cautions When Using
AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 7: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 8: Chapter 1: Product Description
LCD display Stand Stand screws Power cord HDMI cable FS-24 & FS-27 Quick Start Guide FS-24 & FS-27 LED-Backlit Display FS-24/FS-27_Quick Guide_V010 www.agneovo.com Audio cable Quick start guide Warranty card Note: • The pictures are for reference only. Actual items may vary upon shipment. -
Page 9: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the stand to the LCD display. a. Align and attach the stand to the rear of the LCD display. b. -
Page 10: Adjusting The Viewing Angle And Height
PRODUCT DESCRIPTION 1.2.2 Adjusting the Viewing Angle and Height For optimal viewing, it is recommended to look at the full face of the screen, then adjust the screen of the LCD display angle and height according to your preference. Hold the stand so that the screen does not topple when you make the adjustment. You are able to adjust the screen angle and height as below: Tilt angle: Pivot angle:... -
Page 11: Wall Mounting
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Control Buttons
PRODUCT DESCRIPTION 1.3 Control Buttons HDMI D-SUB ] AUTO/SOURCE/EXIT [ ] Down • Call out the Source quick menu. Then • Call out the Eco Mode quick menu. press the button repeatedly to switch Then press the button to select the the input source. -
Page 13: Overview
PRODUCT DESCRIPTION 1.4 Overview 1.4.1 Front View Display screen Control buttons Press the button to perform its function. For more information about each button, refer to page 12. -
Page 14: Rear View
PRODUCT DESCRIPTION 1.4.2 Rear View HDMI D-SUB (AC-IN) HDMI D-SUB Power Input Connect the power cord to the power input. DP(DisplayPort) connector Use to connect DP cable for digital input signal. HDMI connector Use to connect an HDMI cable for digital input signal. D-SUB (VGA) connector Use to connect a D-Sub (VGA) cable for analogue input signal. -
Page 15: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 16: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • DP Connect one end of an DP cable to the DP connector of HDMI D-SUB the LCD display and the other end to the DP connector of the computer. -
Page 17: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices 1. Connect one end of an audio cable to the audio port at the rear of the LCD display. 2. Connect the other end of an audio cable to the audio out port of the computer. -
Page 18: Chapter 3: Using The Lcd Display
CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power 1. Plug the power cord to a power outlet or power supply. 2. Press the button to turn the LCD display on. Power button When the LCD display is turned on, press the button to turn off the LCD display. -
Page 19: Adjusting The Volume
USING THE LCD DISPLAY 3.3 Adjusting the Volume 1. Press the button to call out the Volume quick menu. Volume 2. Press the button to adjust the volume. Note: • During volume or menu setting adjustment, press and hold the button to change the values continuously. -
Page 20: Locking The Osd Menu
USING THE LCD DISPLAY 3.4 Locking the OSD Menu To lock the OSD menu, press and hold the button while the LCD display is off, and then press the button to turn the LCD display on. Menu button Power button To unlock the OSD menu, press and hold the button while the LCD display is off, and then press the button to turn the LCD display on. -
Page 21: Chapter 4: On Screen Display Menu
CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu 1. Press the button to call out the OSD window. T P V Luminance Contrast Brightness Main Submenu menu Eco Mode Standard Over Drive Menu option :Exit :Move :Select AUTO MENU 2. -
Page 22: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference Contrast Refer to page 24. Luminance ( Brightness Eco Mode Text Internet Game Movie Sports Standard Over Drive Clock Refer to page 25. Image Setup ( Phase H. Position V. - Page 23 ON SCREEN DISPLAY MENU Main Menu Submenu Reference H. Position Refer to page 27. OSD Setup ( V. Position Timeout Language English Spanish French Portuguese Russian Simplified Chinese Traditional Chinese Korean Input Select Auto Refer to page 28. Extra ( DisplayPort HDMI D-SUB...
-
Page 24: Chapter 5: Adjusting The Lcd Display
CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Luminance Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Luminance menu. T P V T P V Luminance Luminance Contrast... -
Page 25: Image Setup Setting
ADJUSTING THE LCD DISPLAY 5.2 Image Setup Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Image Setup menu. T P V T P V Image Setup Image Setup Clock... -
Page 26: Color Temperature Setting
ADJUSTING THE LCD DISPLAY 5.3 Color Temperature Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Color Temp. menu. T P V T P V Color Temp. -
Page 27: Osd Setup Setting
ADJUSTING THE LCD DISPLAY 5.4 OSD Setup Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the OSD Setup menu. T P V T P V OSD Setup OSD Setup H.Position... -
Page 28: Extra Setting
ADJUSTING THE LCD DISPLAY 5.5 Extra Setting 1. Press the button to call out the OSD window. 2. Press the button to select and press the button to enter the Extra menu. T P V T P V Extra Extra Input Select Auto Input Select... -
Page 29: Chapter 6: Appendix
CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh √ Change the resolution or the rate of the graphics card of refresh rate of the graphics Input Not Support the computer is set too high. -
Page 30: Troubleshooting
APPENDIX 6.2 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power adapter is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 31: Transporting The Lcd Display
APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging box. 1. Remove the stand. a. Place the LCD display with the screen side down on a cushioned surface. b. - Page 32 APPENDIX Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD display in its box and protect the glass panel from touching any object.
-
Page 33: Chapter 7: Specifications
CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications Model Name Item FS-24 FS-27 Electrical Characteristics Panel Size 23.8” 27.0” Max. Resolution 1920 x 1080 Brightness 250 cd/m 300 cd/m Panel Contrast Ratio 1000:1 Viewing Angle (H/V) 178°/178° Display Color 16.7 M Response Time 5 ms H: 30 kHz –... -
Page 34: Display Dimensions
100mm 322.60mm HDMI D-SUB 175.5mm FS-27 249.00mm 249.00mm 49.00mm 611.89mm 100mm 86.80mm 100mm 366.57mm HDMI D-SUB 152.17mm AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2018 AG Neovo. All rights reserved. FS-24/FS-27_UM_V010...
