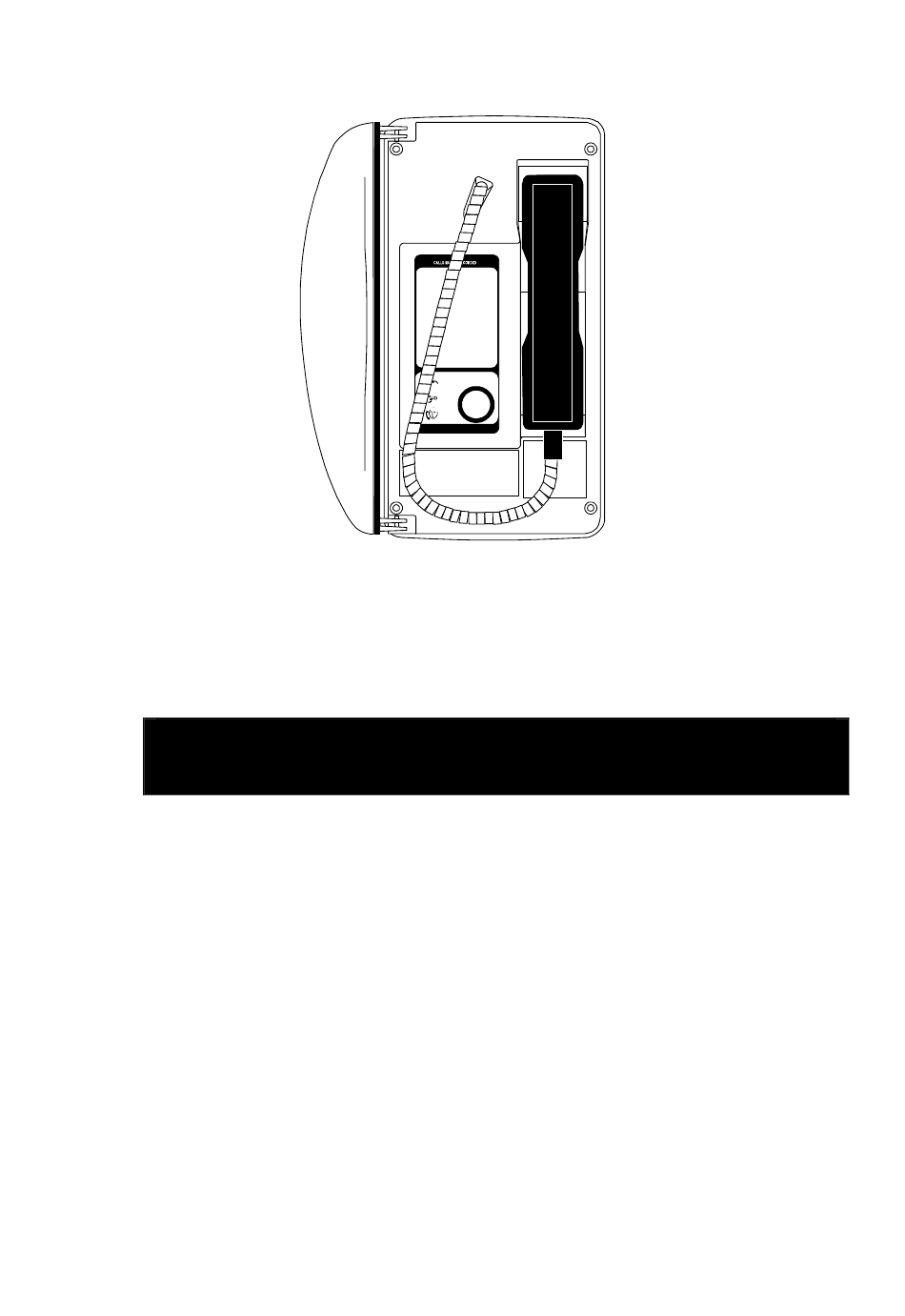

- Page 1 Press LIFT HANDSET PRESS BUTTON WAIT ANSWER Installation and User Guide ILC-1117 Titan Illuminated Crossing Telephone GAI-TRONICS Doc. No. 502-20-0132-001 Iss2. Dec 2012. (CN37277-002)
-
Page 2: Table Of Contents
6.2. Fitting the legend panel.............. 13 Cleaning ....................13 7.1. Normal Cleaning ................ 13 7.2. Stainless Steel Push-buttons ............. 13 7.3. Graffiti..................13 Aftercare ....................14 Technical Specifications ................15 CE Declaration ..................17 ILC-1117 Titan Illuminated Crossing Telephone... -
Page 3: Safety And Care Information

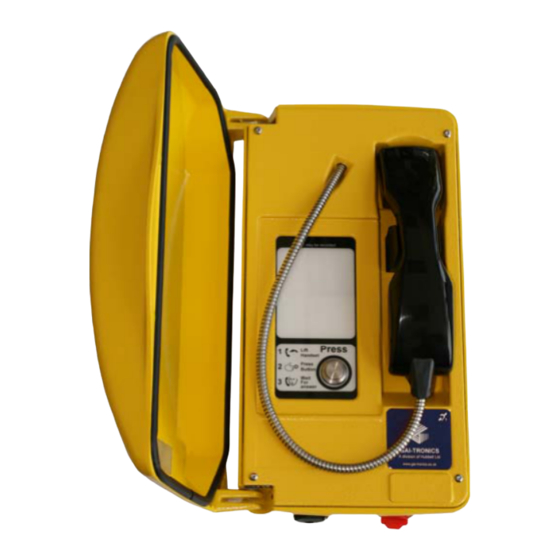

Product Description This manual describes the ILC-1117 model Titan telephone, designed for use on PETS (Public Emergency Telephone System) at automatic half barrier (AHB) level crossings in the UK. The product was introduced with the design of PETS3, but is backward compatible with PETS2 and PETS1. -
Page 4: At A Glance
2.2. At a Glance Faceplate Door Handset Illuminated panel Press LIFT HANDSET PRESS BUTTON WAIT ANSWER Pushbutton Legend panel slides in here Main Terminal Block Timer Switch ILC-1117 Titan Illuminated Crossing Telephone... -
Page 5: Operation / Testing
This should cause PETS to signal an alarm. Note that a terminating resistor should not be fitted across the telephone terminals. ILC-1117 Titan Illuminated Crossing Telephone... -
Page 6: Installation
Because of this, extra precautions must be observed: installation must be carried out by trained personnel. Contact GAI-Tronics if installation service is required. To prepare for installation, open the door, then undo the four retaining screws to remove the faceplate from the rear enclosure. -
Page 7: Wall Mounting
- the outer ones are recommended. The inner holes are provided to be compatible with older-style mounting posts, and should be left intact if not used. If the inner holes are used they must be fitted with the supplied plastic bushes. ILC-1117 Titan Illuminated Crossing Telephone... -
Page 8: Pole Mounting
5. Complete the installation by making the appropriate connections (section 5) and re-fitting the face plate. 4.4. Pole mounting ILC-1117 Titan Illuminated Crossing Telephone... -
Page 9: Connections And Option Settings
Kit No 100-02-0208-001 This accessory is for mounting GAI-Tronics telephones on to the side of round poles of 100mm to 200mm diameter, or on to square or rectangular section uprights of 100mm to 150mm across the mounting surface. NOTE: Banding straps (large scale worm-drive clamps) are not included in this kit and must be obtained separately. - Page 10 Note: Conductor sizes to be 0.5mm-2.5mm (flexible cable);0.5-4.0mm (solid cable) The terminal block can be disconnected from the circuit board for easier installation Cabling must not infringe European Low Voltage Directive (LVD) 2006/95/EC. ILC-1117 Titan Illuminated Crossing Telephone...
- Page 11 The timer is set by the position of switch SW2. Position the switch to the left to set the timer ON, and to the right to set it OFF. This unit is supplied with the switch set to the OFF position. ILC-1117 Titan Illuminated Crossing Telephone...
-
Page 12: Legend Panel
OHP film), preferably 0.5mm thick (max 1mm), and cut to the template below. AREA FOR TEXT Note that the area for printing is 81mm x 66mm and allows a border and a tab for ease of fitting. ILC-1117 Titan Illuminated Crossing Telephone... -
Page 13: Fitting The Legend Panel
7.3. Graffiti For graffiti, paint and ink we recommend the use of 3M GR1 graffiti stain remover. CAUTION: This is a very aggressive chemical. Pay close attention to the manufacturer's recommendations for storage, handling and use. ILC-1117 Titan Illuminated Crossing Telephone... -
Page 14: Aftercare
Aftercare The purchase of your GAI-Tronics product does not end our commitment to you. In addition to our warranty obligations, GAI-Tronics are able to offer various levels of maintenance packages, installation and commissioning packages and technical support, from ad-hoc repairs to full maintenance contracts. -
Page 15: Technical Specifications
IP65 to EN60529:1992 – Degrees of protection provided by Protection enclosures. Physical characteristics Casing material Die-cast Aluminium Handset Material Cycoloy (2800) with stainless steel cord. Weight 5kg approx. Dimensions 189W x 366H x 130D (mm) ILC-1117 Titan Illuminated Crossing Telephone... - Page 16 Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal. ILC-1117 Titan Illuminated Crossing Telephone...
-
Page 17: Ce Declaration
10. CE Declaration ILC-1117 Titan Illuminated Crossing Telephone... - Page 18 ILC-1117 Titan Illuminated Crossing Telephone...
- Page 19 ILC-1117 Titan Illuminated Crossing Telephone...
- Page 20 Stretton Park Burton on Trent DE13 0BZ England Tel: 01283 500500 Fax: 01283 500400 www.gai-tronics.co.uk The policy of GAI-Tronics is one of continuous improvement, therefore the Company reserves the right to change specifications without notice ILC-1117 Titan Illuminated Crossing Telephone...
