Zero Weight (Set Tare) - RDS Technology Weighlog 200 User Manual

3.4

Zero Weight (Set Tare)

The weight should be zeroed if the weight
reading for an empty bucket is more than
±0.02t, or 20 kgs, or 40lbs.
Ensure that the hydraulic system is up to
it's normal operating temperature. It may
be necessary to lift and lower a full bucket
for a
hydraulics and warm the system up.
Observe the correct lifting routine (section
2.2).
1. Ensure that the bucket is completely
empty. Crowd (roll) the bucket right back
as far as it will go.
2. SELECT THE CHANNEL TO BE ZEROED.

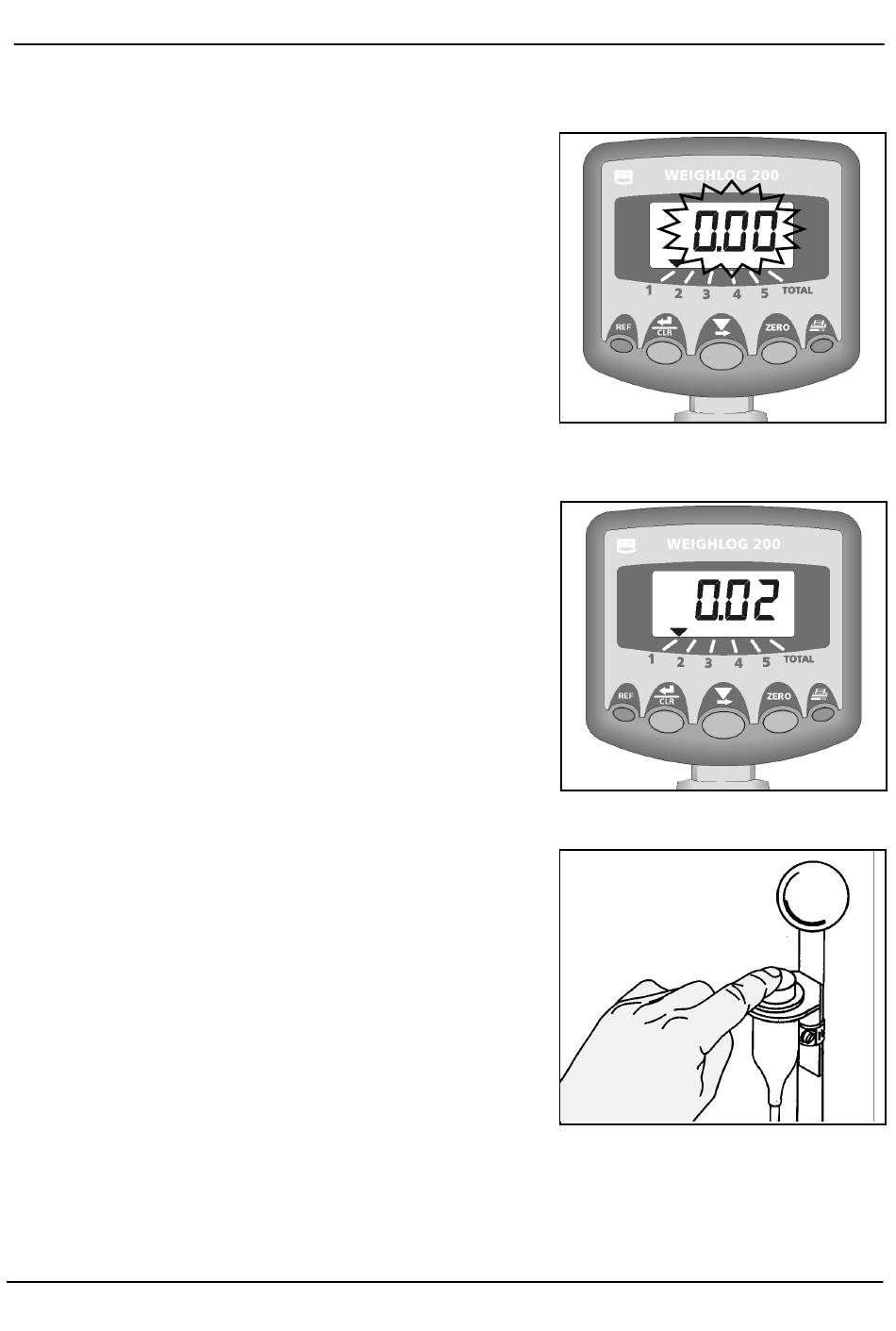

3. Press and hold the ZERO button (fig 9).
The audible alarm will beep THREE times
and the display will flash "0.00".
4.a Dynamic weighing mode : Lift the bucket
through the reference position. Two beeps
will be heard. The display will show a
value.
4.b Static weighing mode : Lift the bucket up
to the reference position and stop. A
single beep will be heard. If you lift too
high, the display will show 4 dashes (fig.
6). If so, lower the bucket back down to
the reference position.
5. As the weight is registered, the display will
continue to flash but may change to show
a number (fig. 10). Press the REMOTE
ENTER BUTTON to zero the weight (fig.
11). The alarm will sound one beep to
confirm the weight is zeroed.
NOTE: Press ZERO button to cancel routine.
6. Repeat the routine several times to
confirm the system is correctly zeroed.
few minutes to exercise the
PRELIMINARY SETTINGS
Figure 9
Figure 10
Figure 11
11
