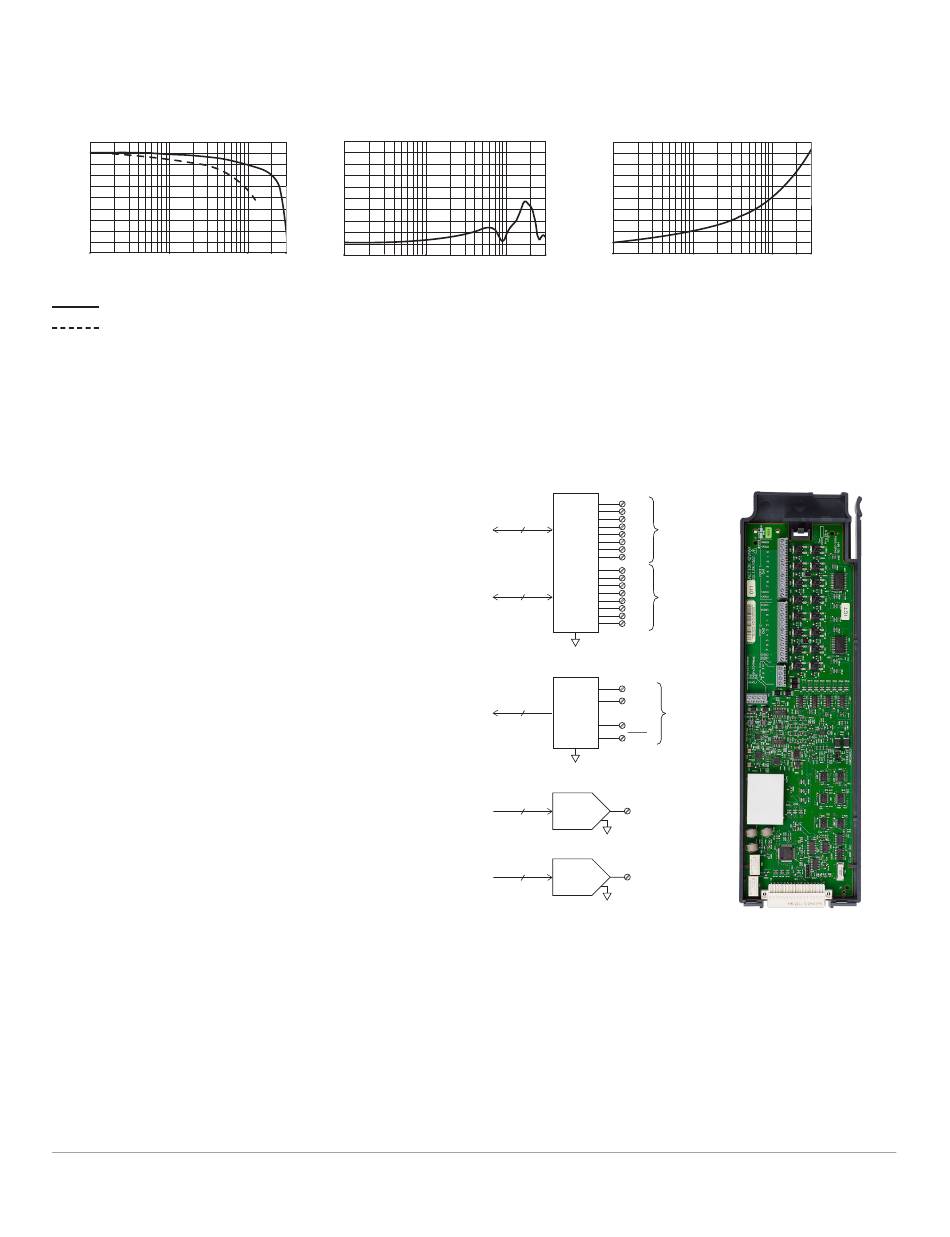

50 Ω MUX typical AC performance graphs
Insertion loss
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz
Direct to card
Using provided adapter cables
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz
DAQM907A
Multifunction Module
– 16 bits of digital input and output
– 100 kHz totalizer input
– Two ±12 V analog outputs or ± 24 mA outputs
The Keysight DAQM907A allows great flexibility for a variety of
sense and control applications. It combines two 8-bit ports of
digital input and output, a 100 kHz gated totalizer, and two ± 12 V
or ± 24 mA analog outputs—all on a single earth-referenced
module. The digital inputs and totalizer input may be included in
a scan. Alarm limits for the digital and event counter inputs are
evaluated continuously, capturing and logging alarm conditions
even between scans.
On top of that, it has two additional channels (Channel 6 and 7)
that provide the ability to sense output current when sourcing
voltage, or sense output voltage when sourcing current.
Find us at www.keysight.com
VSWR
1.80
1.60
1.40
1.20
1.00
1 GHz 3 GHz
10 MHz 100 MHz
1.80
1.60
1.40
1.20
1.00
1 GHz 3 GHz
10 MHz 100 MHz
Allice Messtechnik GmbH
Crosstalk
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
1 GHz 3 GHz
10 MHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
1 GHz 3 GHz
10 MHz
Bit 0
8
Port 1
Channel 01
Bit 7
DIO
Bit 0
8
Port 2
Channel 02
Bit 7
+IN
-IN
26 Bits
Channel 03
TOT
Gate
Gate
16
DAC 1 Channel 04
16
DAC 2 Channel 05
100 MHz 1 GHz 3 GHz
100 MHz 1 GHz 3 GHz
