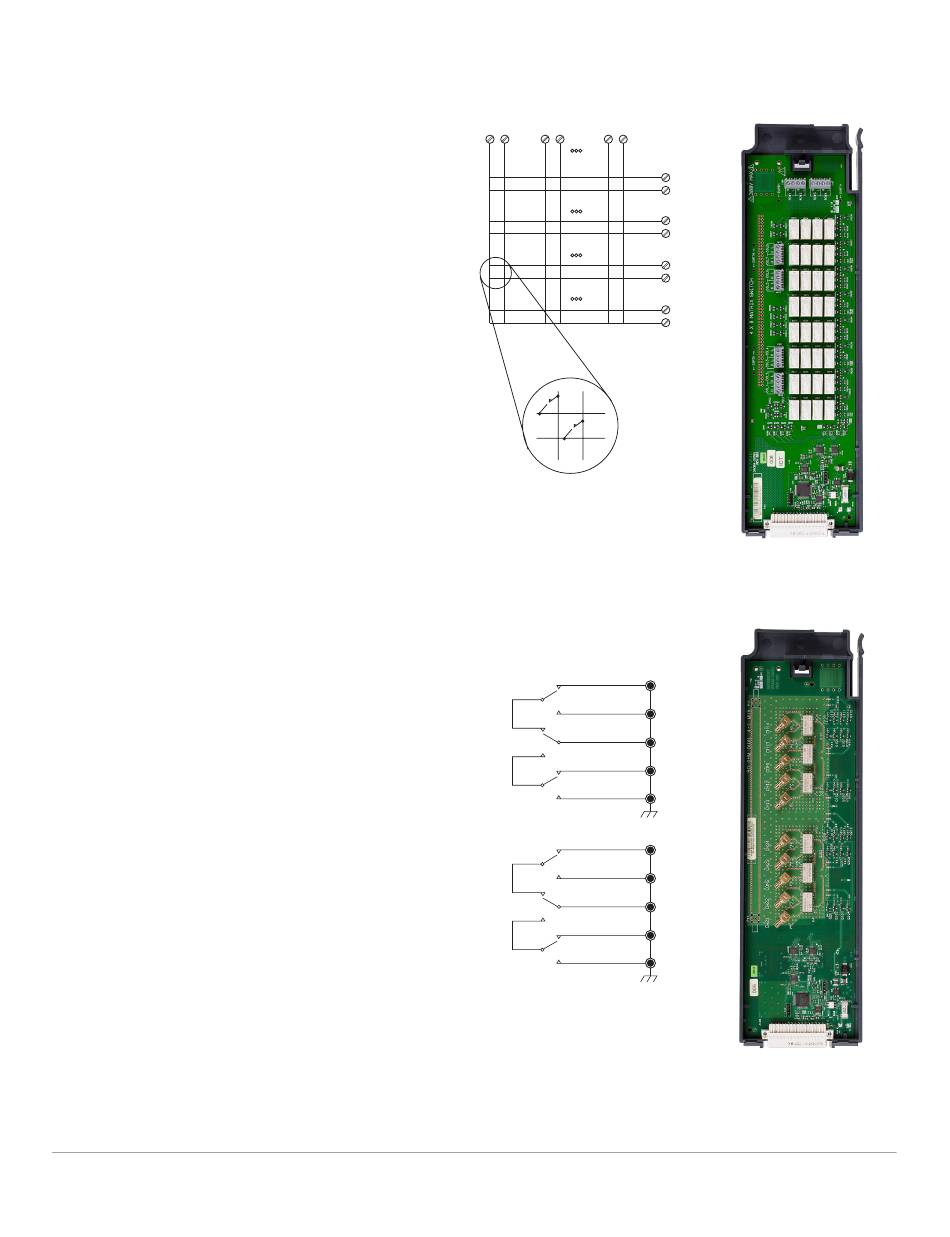

DAQM904A
4x8 Two-wire Matrix Switch
– 32 two-wire crosspoints
– 300 V, 1 A switching
The Keysight DAQM904A gives you the most flexible connection
path between your device under test and your test equipment,
allowing different instruments to be connected to multiple points
on your DUT at the same time.
Rows or columns may be connected between multiple modules to
build 8x8, 4x16 or larger matrices, with up to 96 crosspoints in a
single frame.
DAQM905A
Dual 4-Channel RF Multiplexer 50 Ω
– 2 GHz bandwidth
– BNC to SMB adapter cables included
The Keysight DAQM905A RF multiplexers offer broadband
switching capabilities for high frequency and pulsed signals. Use
them to route test signals between your device under test and
your signal generator, oscillo-scope, spectrum analyzer, or other
instrumentation.
The RF multiplexer are arranged as two independent 1x4
multiplexers, each with a common shield and a switched center
conductor. Connections can be made directly to SMB inputs
with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters
provided with 1 GHz bandwidth. Multiple banks may be cascaded
together for applications requiring even larger topologies—create
a 16:1 multiplexer in a single frame.
Find us at www.keysight.com
Allice Messtechnik GmbH
Col 1 Col 2 Col 8
H L H L H L
H L
H
Channel 31
(Row 3, Column 1)
L
H
Row 1
L
H
Row 2
L
H
Row 3
L
H
Row 4
L
11
12
Com
13
14
21
22
Com
23
24
