B-Tech Ventry BTV502 Installation Manual & Parts List

BTV502

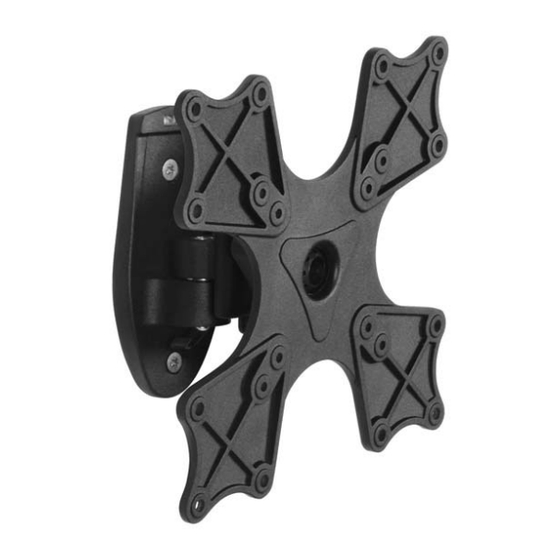

MEDIUM FLAT SCREEN WALL MOUNT
WITH TILT AND SWIVEL
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
©2011 B-Tech International Ltd. All rights reserved. B-Tech Audio Video Mounts is a division of B-Tech International Ltd. B-Tech, Better By Design & Ventry are registered trademarks of B-Tech International Ltd.
All other brands and product names are trademarks of their respective owners. Photographs are for illustrative purposes only. E&OE.
•
Wall mount designed for screens up to 42" (107cm) / 25kg (55lbs)
•
Features 180º swivel and ±15º tilt
•
360º rotation for easy screen levelling
•
Mounts screen 105mm from wall
•
Quick and simple installation
•
Integrated spirit level and cable management
•
All necessary fixings and mounting hardware included
•
Mounts VESA® patterns: 200mm x 200mm, 200mm x 100mm,
100mm x 100mm and 75mm x 75mm
Crosshead
screwdriver
8mm (5/16") masonry bit
or 3mm (1/8") wood bit
