Page 2: Installation Instructions

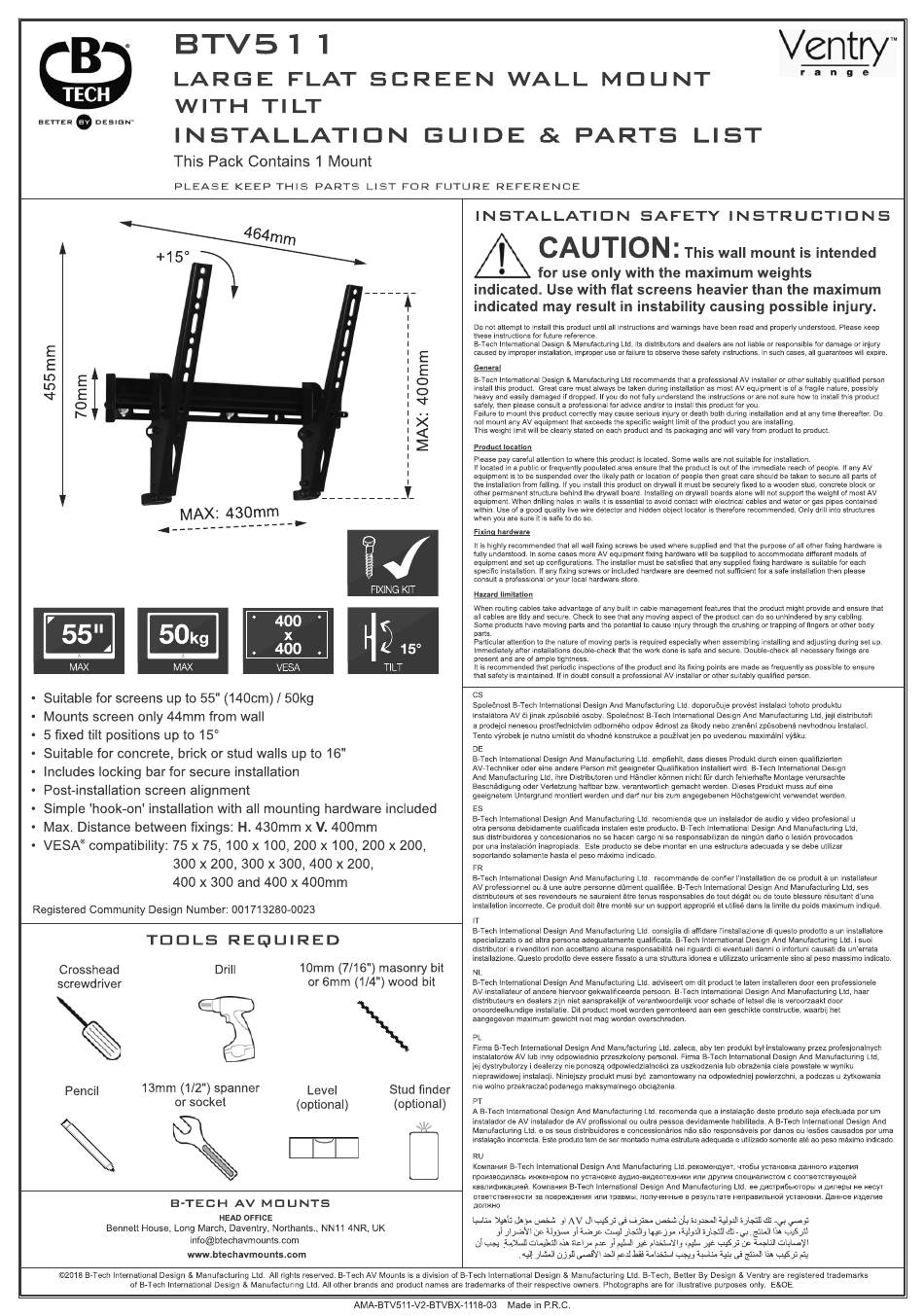

BTV511 INSTALLATION INSTRUCTIONS 1. Attach wall plate to either a concrete or stud wall. i. Concrete wall ii. Stud wall 16" 2. Attach interface arms to flat screen. MULTIWASHER PART M FLAT SCREEN G/H/I... - Page 3 3. Adjust and lock tilt. ADJUST MAXIMUM TILT TILT 15° 4. Hook mount onto wall plate. FLAT WALL SCREEN FLAT SCREEN 7. Insert locking bar. 5. Tilt adjustment. + 15 ° To adjust tilt, repeat steps 3 & 4. FLAT SCREEN 6.
-
Page 4: Parts List
BTV511 PARTS LIST PLEASE KEEP THIS PARTS LIST FOR FUTURE REFERENCE INTERFACE KIT PART NAME WALL PLATE M4 X 12mm SCREW INTERFACE ARM A M4 X 25mm SCREW INTERFACE ARM B M5 X 16mm SCREW M6 TILT ADJUSTMENT SCREW M5 X 25mm SCREW...
