Crestron ZUMMESH-JBOX-DALI Quick Start Manual

ZUMMESH-JBOX-DALI
Zūm™ Wireless DALI® Controller

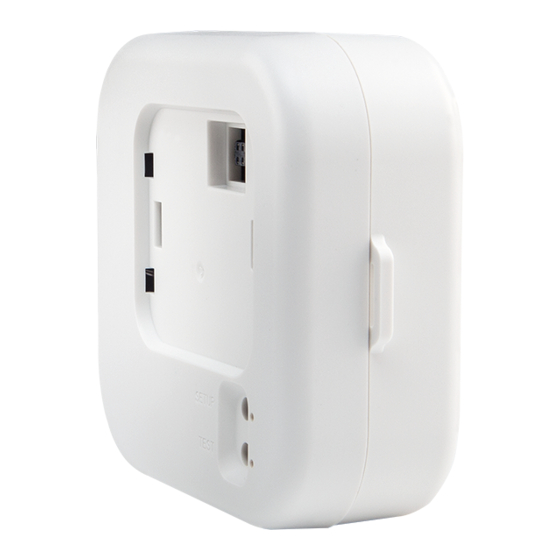

The Zūm™ Wireless ZUMMESH-JBOX-DALI is a single-
channel DALI controller capable of controlling up to 64
DALI compatible drivers. The ZUMMESH-JBOX-DALI
communicates with other Zūm devices such as keypads,
occupancy sensors, vacancy sensors, and daylight sensors.
NOTE: The ZUMMESH-NETBRIDGE (sold separately)
is required to create and control DALI groups. The
ZUMMESH-NETBRIDGE must be connected to the
ZUMMESH-JBOX-DALI for DALI group control.
Check the Box
Item
ZUMMESH-JBOX-DALI
Nut, Wire Twist, Yellow, 22-10 AWG
(P/N 2049245)
Nut, Lock, 1/2 in. - 14, Conduit, Steel
(P/N 2047626)
Installation
WARNING:
To avoid fire, shock, or death, turn off the power
at the circuit breaker or fuse and test that the power is off
before wiring!
NOTE: Observe the following points:
• Install and use this product in accordance with
appropriate electrical codes and regulations.
•
A licensed electrician should install this product.
• The product projects 3-11/16 in. (93 mm) from the
junction box when installed.

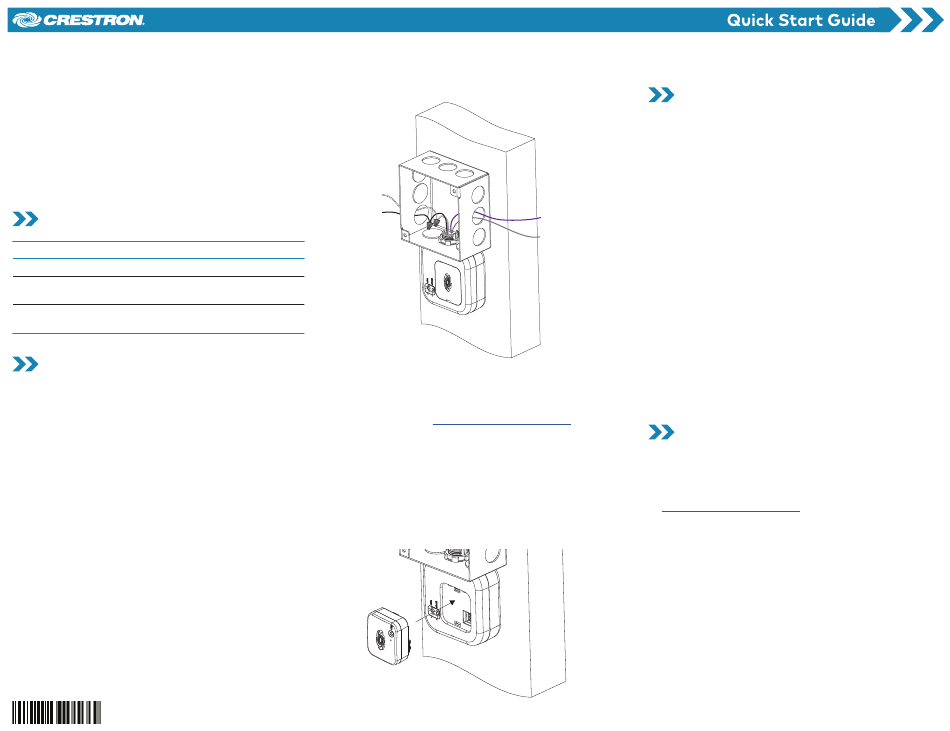

To install a ZUMMESH-JBOX-DALI:
1. Turn the power off at the circuit breaker.
2. Mount the ZUMMESH-JBOX-DALI to the J-box using
a locknut.
3. Wire the ZUMMESH-JBOX-DALI as shown.
100-277 VAC
power from
breaker
Neutral
(white)
Hot
(black)
Qty
1
4
1
To install a ZUMMESH-NETBRIDGE:
NOTE:
For product specifications and additional installation
details, refer to the ZUMMESH-NETBRIDGE Installation
Guide (Doc. 7955) at
details.
1. Use a flat-head screwdriver to remove the cover on
the ZUMMESH-JBOX-DALI. Insert the flat-head
100-277 VAC
screwdriver into the slot next to the cover and pry up
power from
to remove the cover.
breaker
2.
Align the ports on the ZUMMESH-NETBRIDGE
Neutral
and the ZUMMESH-JBOX-DALI, and then
(white)
insert the ZUMMESH-NETBRIDGE into the
Hot
ZUMMESH-JBOX-DALI. The J-box module snaps into
(black)
place.
120 - 277 VAC power
from breaker
To DALI
controlled loads
DALI Input/Output
(purple)
DALI Input/Output
(gray)
www.crestron.com/manuals for
Operation
Prior to room commissioning, the ZUMMESH-JBOX-DALI
uses DALI broadcast to control all connected
lights simultaneously. After commissioning the
ZUMMESH-JBOX-DALI, addressing devices and creating
groups, the ZUMMESH-JBOX-DALI will control drivers
assigned to the groups.
NOTES: Connect the ZUMMESH-NETBRIDGE (sold
separately) directly to the ZUMMESH-JBOX-DALI to create
and control DALI groups. The ZUMMESH-JBOX-DALI
functions in broadcast mode if the ZUMMESH-NETBRIDGE
is not connected.
Test the Ballasts
To verify that all drivers have been properly wired, press
the TEST button to toggle the drivers that are assigned to
groups.
To test the dimming function of the drivers, press and hold
the TEST button.
NOTE: if the ZUMMESH-JBOX-DALI is not commissioned,
the device operates in DALI broadcast mode and
controls all of the connected drivers simultaneously.
After the ZUMMESH-JBOX-DALI is commissioned, the
ZUMMESH-JBOX-DALI only toggles or dims drivers that
are assigned to groups.
Commissioning
Use the Crestron Zūm app to commission the
ZUMMESH-JBOX-DALI.
For details on commissioning, refer to the Zūm Light
Control System Product manual (Doc. 7957)
at www.crestron.com/manuals.
