EFW Architectural Components and Concepts

EFW consists of the following major architectural components and concepts:

EFW Management Console

I
EFW Policy Servers
I
EFW devices
I
EFW domain(s)
I

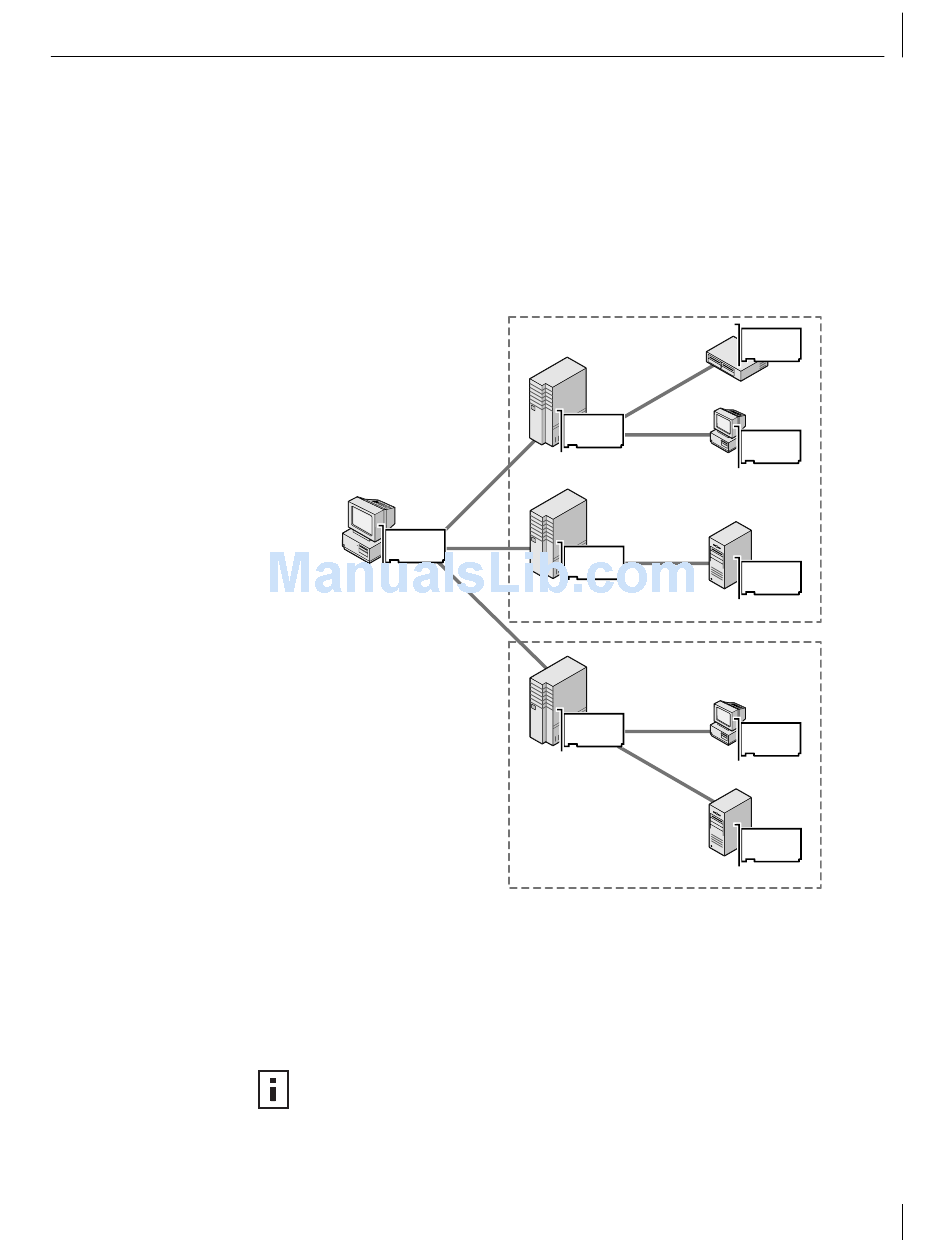

Each of the components and concepts listed above is shown in the figure below and
discussed in the following subsections.
Management
console
EFW
device
EFW Management Console
The EFW Management Console is the administrative interface to the Policy Server.
Administrators configure the system and view data using the Management Console.
You can protect the Management Console machine or server machine or both with an
EFW device. The Management Console can be installed and run on the same machine as
a Policy Server, or remotely on a different machine.
NOTE: While you are not required to protect the Management Console machine
with an EFW NIC, it is recommended to protect against attacks.
EFW Architectural Components and Concepts
EFW domain 1
EFW
device
Policy server
EFW
device
Policy server
EFW
device
Policy server
EFW
device
Server
EFW
device
Workstation
EFW
device
Server
EFW domain 2
EFW
device
Workstation
EFW
device
Server
