PCAN-Router Pro – User Manual
6.2
Preparing a Configuration for
Recording
In the configuration program PPCAN-Editor 2 the recording of the
CAN traffic is set up in the module-specific configuration ( ) on the
Default values for data objects tab.

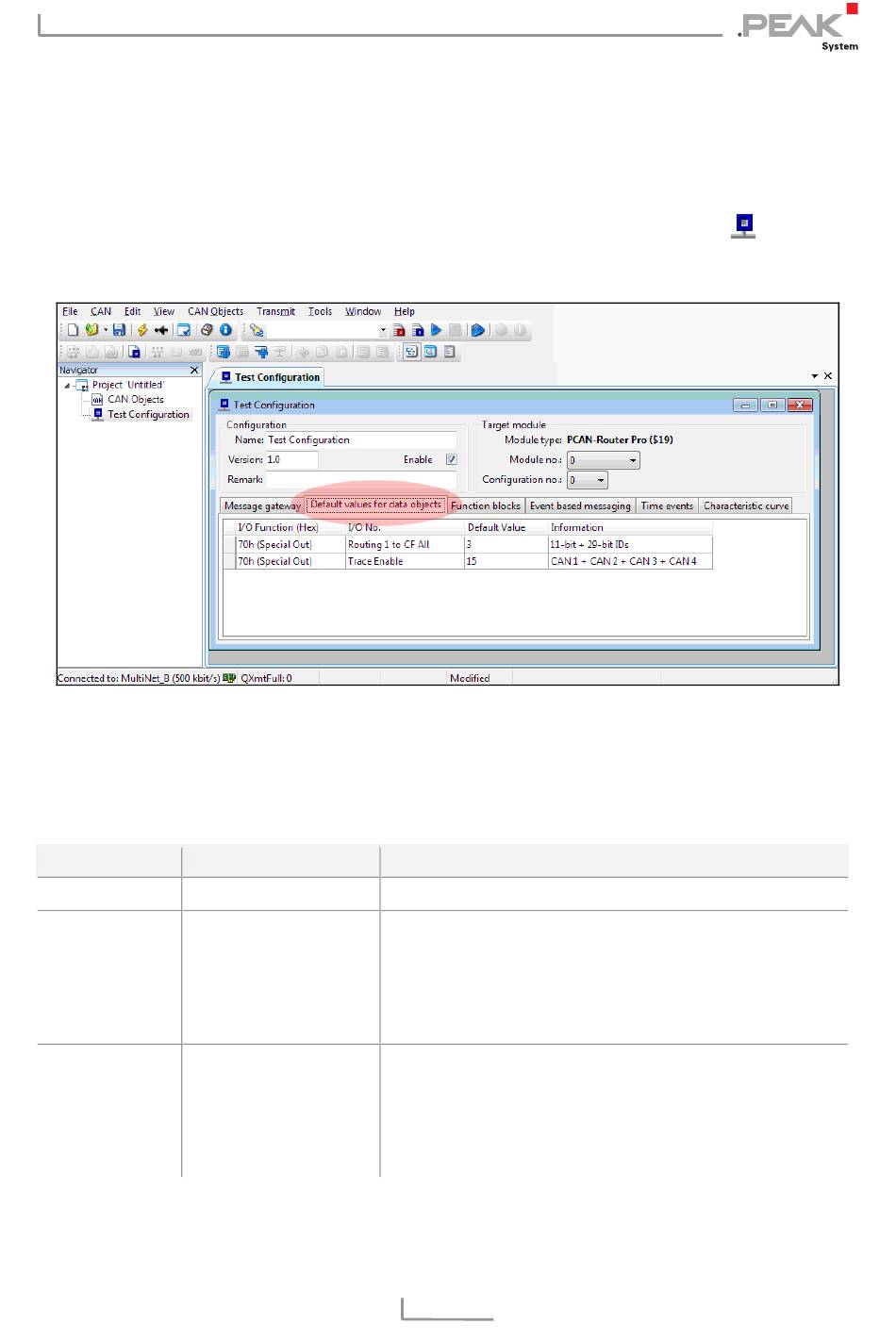

Create the following entries (see also figure):
Field
Selection/Input
I/O Function
70h (Special Out)
I/O No
Routing 1 to CF All Forward all CAN messages from CAN channel
Default Value 3
The entries for the recording
are created in the module-specific configuration.
Explanation
Special functions of the PCAN-Router Pro
1 to the CF card.
Alternatively, you can select the CAN channels
2, 3, or 4, or create additional entries for these
CAN channels.
2-bit value; CAN frames with 11-bit and/or 29-
bit ID are forwarded to the CF card (here: both
ID types)
Bit 0 (1 dec.) = 11-bit ID
Bit 1 (2 dec.) = 29-bit ID
41
