6. Remove the retaining screw from the transceiver module to
be replaced.
Pay attention to the spacer and the nut, which may come
loose.

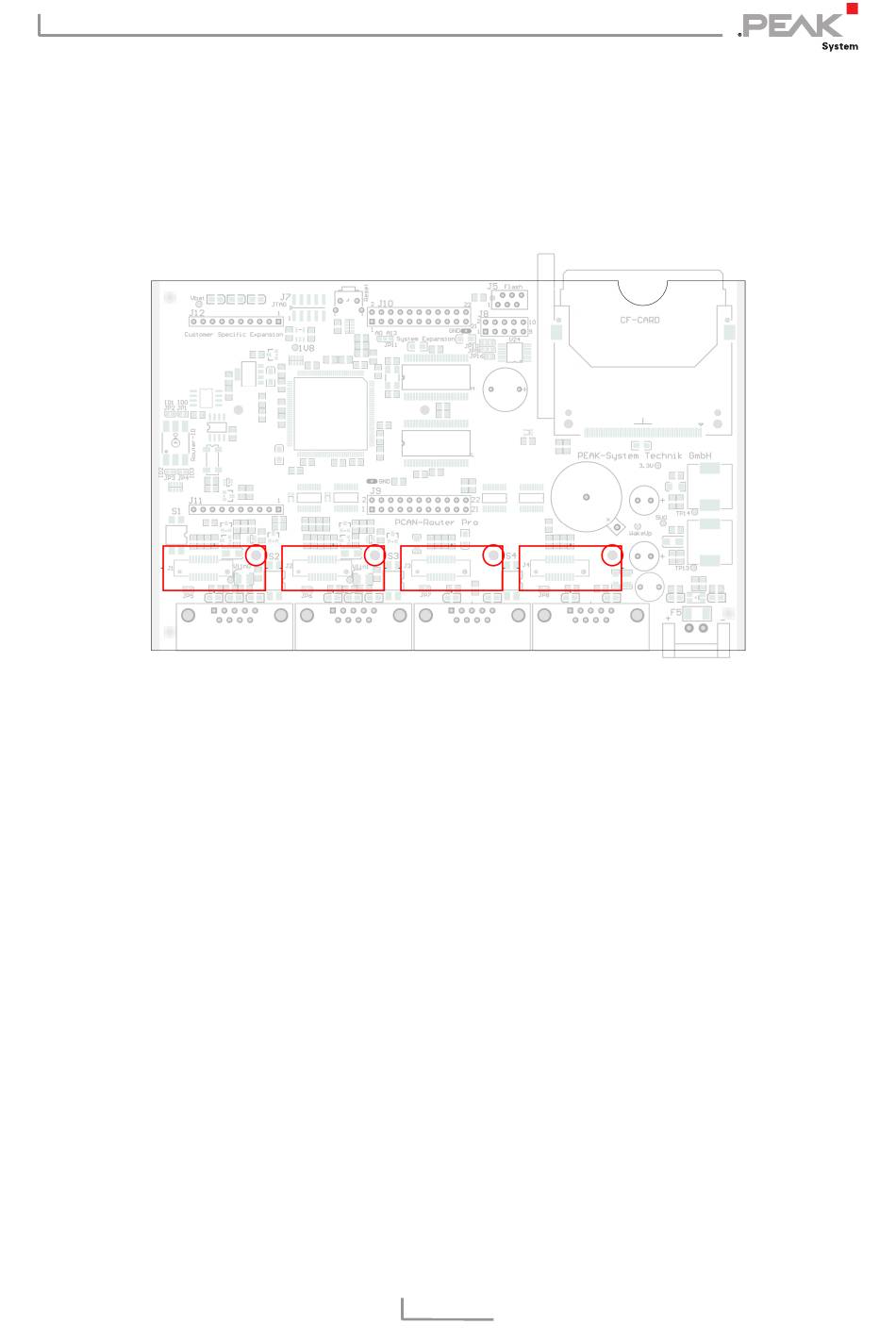

Positions of the transceiver modules for the four CAN channels
7. Pull off the transceiver module upwards from the main
board.
8. Plug the alternative transceiver module onto the socket.
Make sure that the hole in the transceiver module is aligned
to the corresponding hole in the main board.
9. Secure the transceiver module with the screw, the spacer,
and the nut.
10. Put the cover back on the housing by paying attention to the
LED light guides.
11. Screw the four screws at the upper corners of the housing
on the front and back side.
(CAN 1 on the left)
